2j-Multiband 2JP0434B

Manufacturer : Multiband Antennas Limited

Model : 2JP04343B

  • Passive GNSS-Iridium® Ceramic Antenna
  • Ground Plane Independent
  • Single Feed Technology

2j-Multiband 2JP0434B


Manufacturer : Multiband Antennas Limited

Model : 2JP04343B

  • Passive GNSS-Iridium® Ceramic Antenna
  • Ground Plane Independent
  • Single Feed Technology

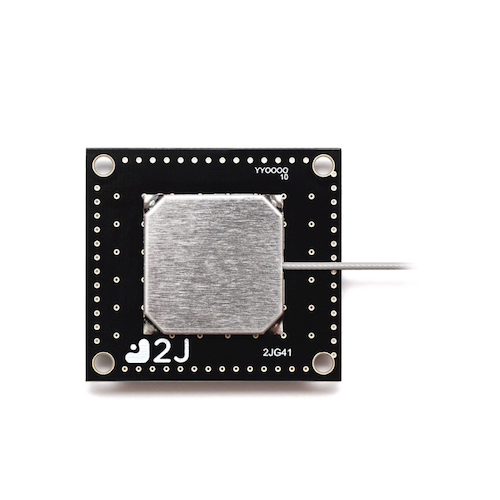

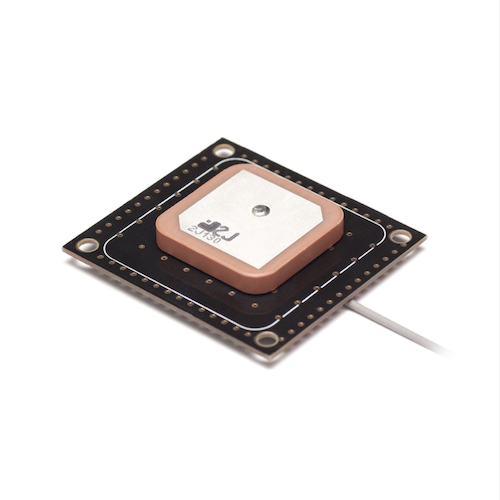

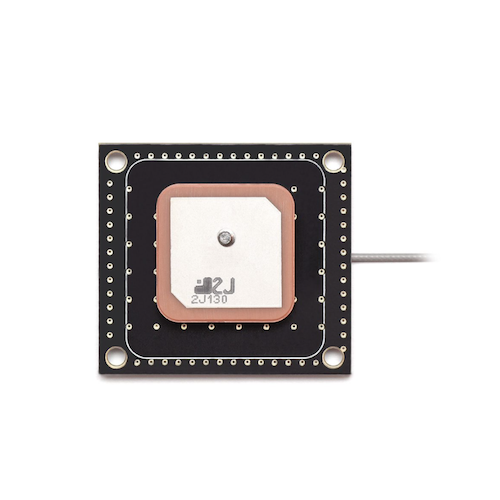

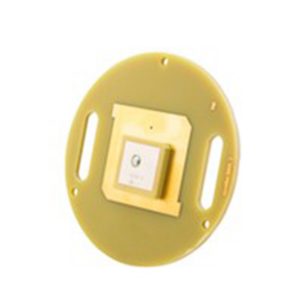

GPS/Galileo-Iridium 1575-1616-1627 MHz High Performance, Internal Passive Antenna on PCB

Features

  • Passive GNSS-Iridium Ceramic Antenna
  • Iridium Certified Antenna
  • Internal Antenna
  • Ground Plane Independent
  • Single Feed Technology
  • 2.6 dBi Peak Gain
  • Screw on Feature on Iridium Module
  • Socket Antenna Module Technology
  • Customizable Cable and Connector

Product Specifications and Certifications

Technical Specifications

Mechanical
Dimensions (L x W x H) 42mm x 46mm
Iridium Embedded Technology Iridium 9602 Module , Iridium Core 9523 Module
Environmental
Operating Temperature Range -40 to +85 ℃
RF Interface
Frequency Range 1575, 1616 - 1626.5 MHz
I / O Impedence 50 Ohm
Network
Location Based Services GPS, QZSS, Galileo

Certifications

  • Iridium Certified
  • Patent Pending
