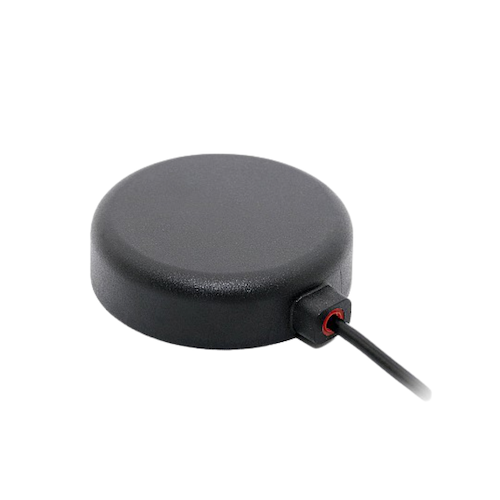

2J-Multiband 2J7434

Manufacturer : Multiband Antennas Limited

Model : 2J7434

  • Passive GNSS/Iridium® Antenna
  • Ground Plane Dependent
  • Low Profile
  • Iridium Certified Antenna

2J-Multiband 2J7434


Manufacturer : Multiband Antennas Limited

Model : 2J7434

  • Passive GNSS/Iridium® Antenna
  • Ground Plane Dependent
  • Low Profile
  • Iridium Certified Antenna

Passive GNSS-Iridium Antenna suitable for land, marine and aviation use.

Features

  • Passive GNSS-IRIDIUM Antenna
  • Iridium Certified Antenna
  • Ground Plane Dependent
  • 2.6 dBi GNSS Peak Gain
  • Single Feed Technology
  • Low Profile
  • Adhesive Mounting Sticker Included
  • Customizable Cable and Connector

Product Specifications and Certifications

Technical Specifications

Mechanical
Field Label Field Value
Dimensions ( ø x H ) 14.7 mm x 54 mm
Iridium Embedded Technology Iridium 9602 Module , Iridium Core 9523 Module
Environmental
Field Label Field Value
Operating Temperature Range -40 to +85 ℃
Ingress Protection IP67, IP69
RF Interface
Field Label Field Value
Frequency Range 1575, 1616 - 1626.5 MHz
I / O Impedence 50 Ohm
Network
Field Label Field Value
Location Based Services GPS, QZSS, Galileo

Certifications

  • Iridium Certified
  • IP67
  • IP69
