2J-Multiband 2JDK0126a-A28

Manufacturer : Multiband Antennas Limited

Model : 2JDK0126a-A28

  • Iridium® Patch Antenna Development Kit
  • Ground Plane Independent
  • High Gain
  • Thru-Hole Mount
2J-Multiband Development kit for Iridium with a set of 6 ceramic patches to integrate on devices
2J-Multiband Development kit for Iridium with a set of 6 ceramic patches to integrate on devices
2J-Multiband Development kit for Iridium with a set of 6 ceramic patches to integrate on devices
2J-Multiband Development kit for Iridium with a set of 6 ceramic patches to integrate on devices
2J-Multiband Development kit for Iridium with a set of 6 ceramic patches to integrate on devices
2J-Multiband Development kit for Iridium with a set of 6 ceramic patches to integrate on devices
2J-Multiband Development kit for Iridium with a set of 6 ceramic patches to integrate on devices
2J-Multiband Development kit for Iridium with a set of 6 ceramic patches to integrate on devices

2J-Multiband 2JDK0126a-A28


Manufacturer : Multiband Antennas Limited

Model : 2JDK0126a-A28

  • Iridium® Patch Antenna Development Kit
  • Ground Plane Independent
  • High Gain
  • Thru-Hole Mount

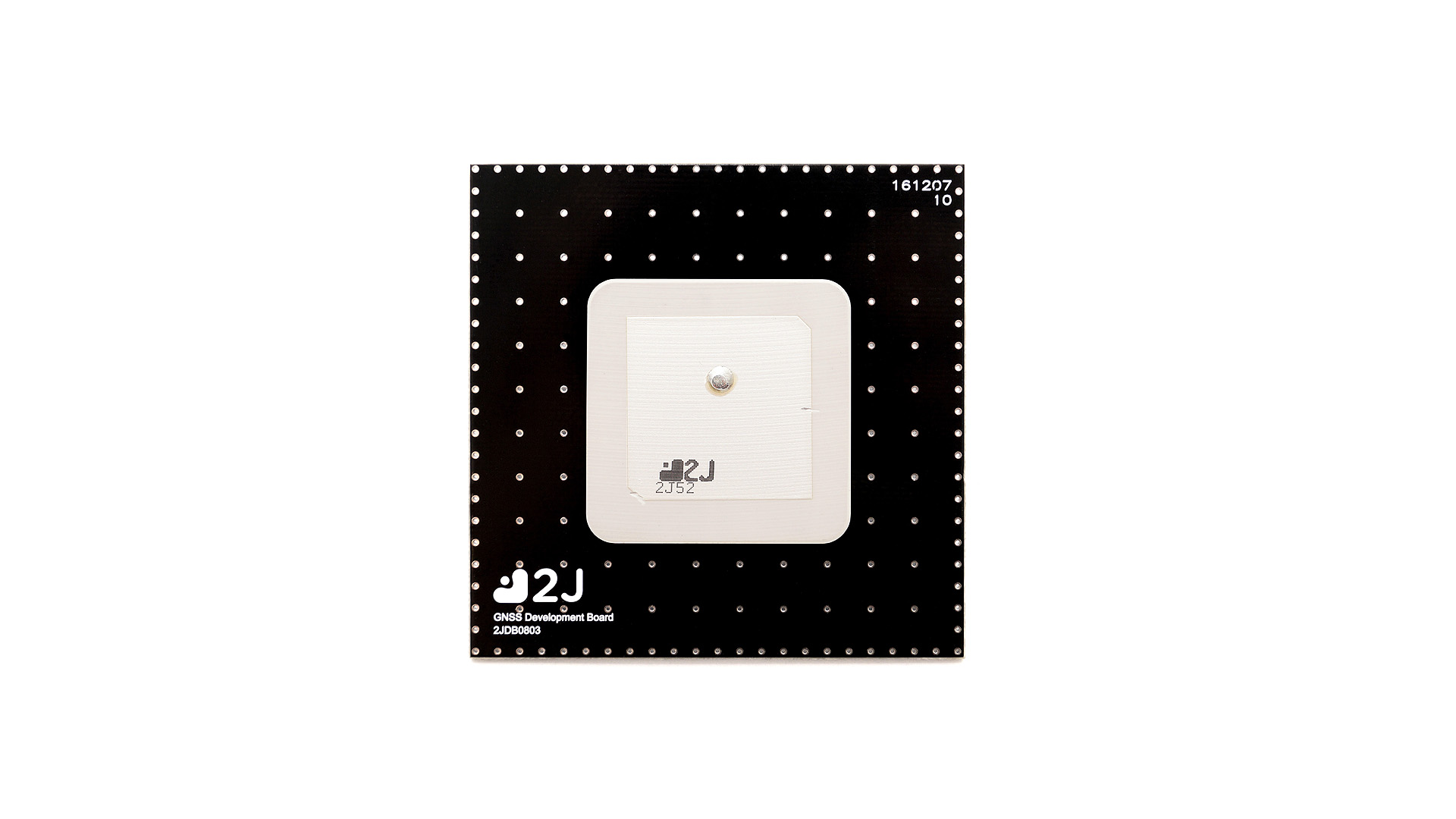

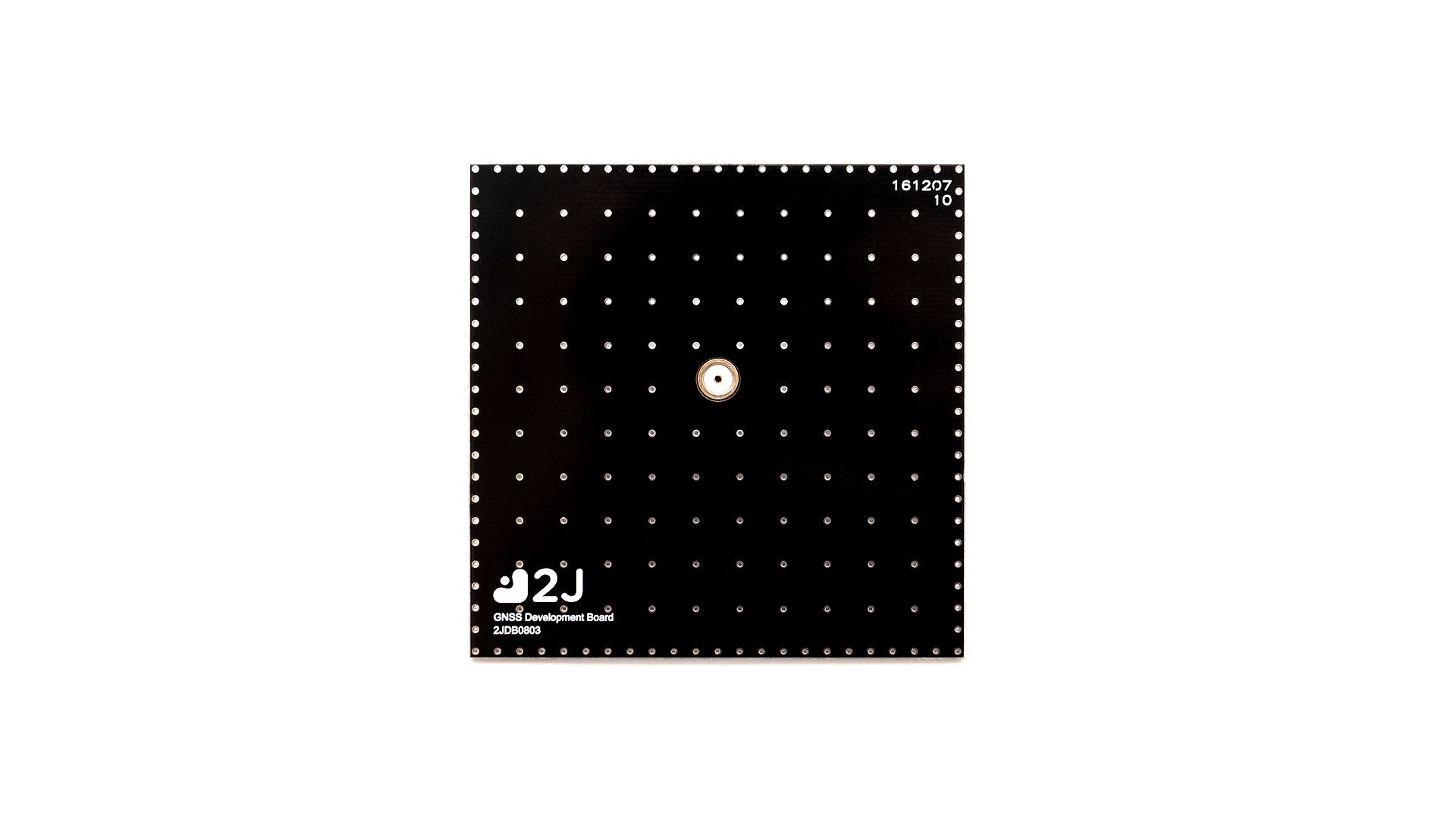

Development Kit for Integrated Patch Antenna

With thru-hole mount ceramic, the board consisting of six different patches enables connectable devices to utilize a variety of frequencies for satellite connectivity. The high-gain development kit provides connectivity when most needed due to Iridium's 66 Low-Earth Orbiting satellites.

Features

Iridium patch development kit with a set of six ceramic patches to integrate on devices. With high gain and a thru hole mount, these patches are groundplane independent.

  • High Gain
  • High gain enables optimal signal strength for connected devices enabled by the board in its entirety or separately
  • Groundplane Independent
  • Does not require an external ground plane to be present to focus its signal
  • Included in Kit

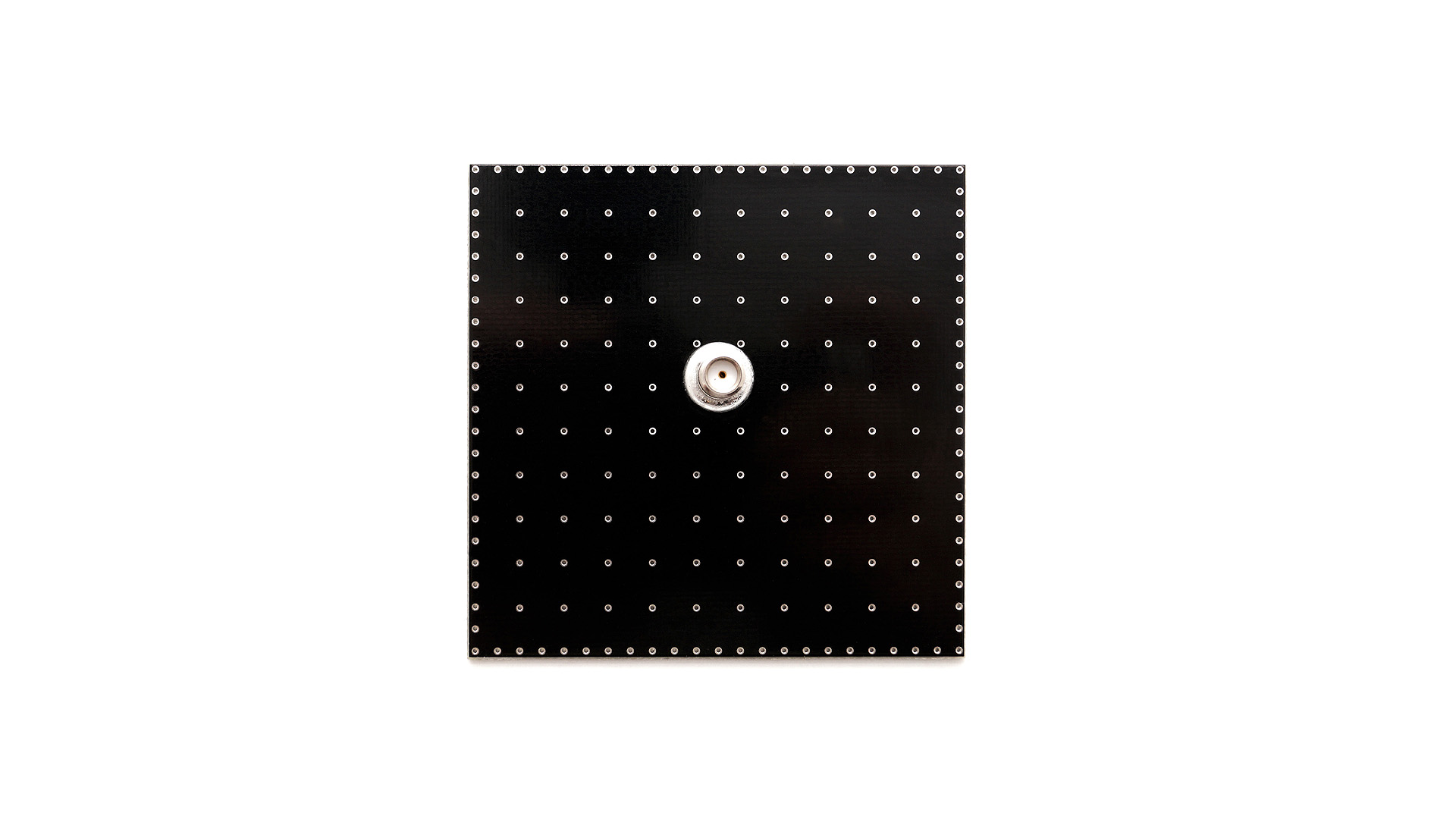

  • Iridium patch development kit, with 6 patches (35 x 35mm) and a 7cm x 7cm with SMA female.

Product Specifications and Certifications

Technical Specifications

Environmental
Operating Temperature Range -40 to +85 ℃
Antenna
Antenna Design High Gain
Polarization RHCP
RF Interface
I / O Impedence 50 Ohm

2J-Multiband 2JDK0126a-A28

Iridium patch development kit with a set of six ceramic patches to integrate on devices. With high gain and a thru hole mount, these patches are groundplane independent.
