2J-Multiband 2J9134

Manufacturer : Multiband Antennas Limited

Model : 2J9134

  • Compact Marine Antenna
  • Iridium®/GNSS Certified Antenna
  • Ground Plane Independent
  • High Performance, High Efficiency

2J-Multiband 2J9134


Manufacturer : Multiband Antennas Limited

Model : 2J9134

  • Compact Marine Antenna
  • Iridium®/GNSS Certified Antenna
  • Ground Plane Independent
  • High Performance, High Efficiency

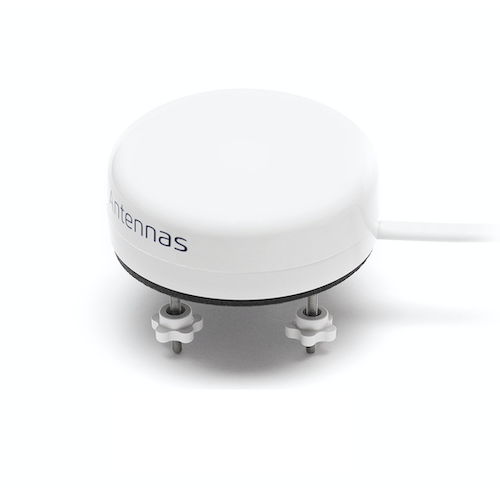

GPS/Galileo-IRIDIUM 1575-1616-1627 MHz High Performance Iridium Certified Screw Mount Marine Antenna

Features

  • Iridium/GNSS Certified Antenna
  • Compact Marine Antenna
  • Ground Plane Independent
  • 4.5 dBic IRIDIUM Peak Gain
  • High Performance
  • High Efficiency
  • Configurable Mount Options

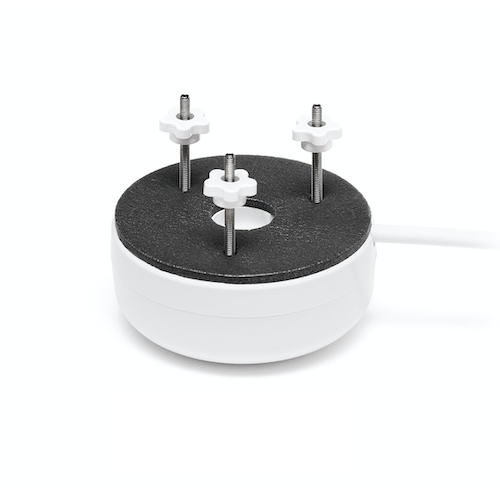

  • Deck Mount/Pole Mount M25 Thread
  • Customizable Cable and Connector

Product Specifications and Certifications

Technical Specifications

Mechanical
Field Label Field Value
Dimensions ( ø x H ) 34.7 mm x 74 mm
Iridium Embedded Technology Iridium 9602 Module , Iridium Core 9523 Module
Environmental
Field Label Field Value
Operating Temperature Range -40 to +85 ℃
Ingress Protection IP67
RF Interface
Field Label Field Value
Frequency Range 1575.42, 1616 - 1626.5 MHz
I / O Impedence 50 Ohm
Network
Field Label Field Value
Location Based Services GPS, Galileo

Certifications

  • Iridium Certified
  • IP67
