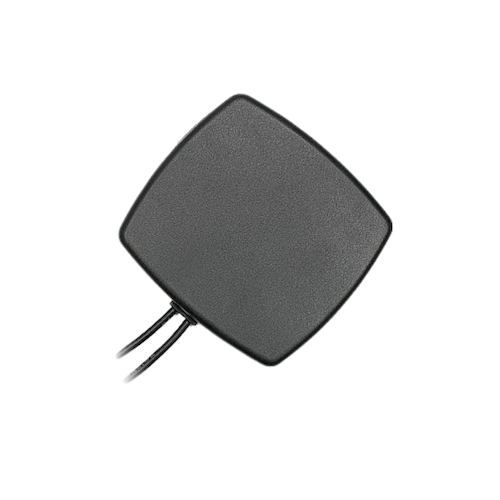

2J-Multiband 2J6033

Manufacturer : Multiband Antennas Limited

Model : 2J6033

  • 2-in-1 Combination Antenna
  • Ground Plane Independent
  • Active GNSS Antenna

2J-Multiband 2J6033


Manufacturer : Multiband Antennas Limited

Model : 2J6033

  • 2-in-1 Combination Antenna
  • Ground Plane Independent
  • Active GNSS Antenna

Falcon GPS GLONASS Galileo Iridium® Certified External Antenna - Suitable for land, maritime and aviation use. Falcon GPS GLONASS Galileo Iridium Certified Antenna – Available in Screw Mount, Magnetic Mount and Adhesive Patch Mount. 2J-Multiband 2J6033 is composed of Pre-Filter GNSS, GNSS Voltage Range 1.5 – 3.6 V, Low Profile, One form factor – 3 Versions, Customizable Cable and Connector.

Features

  • 2-in-1 Combination Antenna
  • Ground Plane Independent
  • 4.5 dBic Iridium Peak Gain
  • Active GNSS Antenna
  • 28 dB GNSS Active Gain
  • Pre-Filter GNSS
  • GNSS Voltage Range 1.5 - 3.6 V
  • Low Profile
  • One Form Factor - 3 Versions
  • Customizable Cable and Connector

Product Specifications and Certifications

Technical Specifications

Mechanical
Field Label Field Value

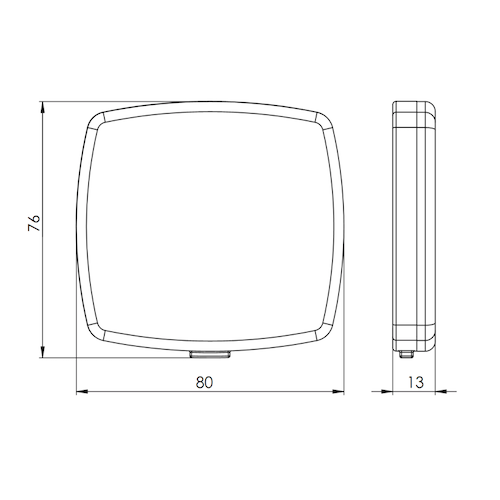

Dimensions ( L x W x H ) 80 x 76 x 13 mm
Iridium Embedded Technology Iridium 9602 Module , Iridium Core 9523 Module
Environmental
Field Label Field Value
Operating Temperature Range -40 - +85 ℃
RF Interface
Field Label Field Value
Frequency Range 1616 - 1626.5 MHz
I / O Impedence 50 Ohm
Network
Field Label Field Value
Location Based Services GPS, GLONASS, Galileo

Certifications

  • Iridium Certified
