Multiband 2J6552B & M Antenna

Overview

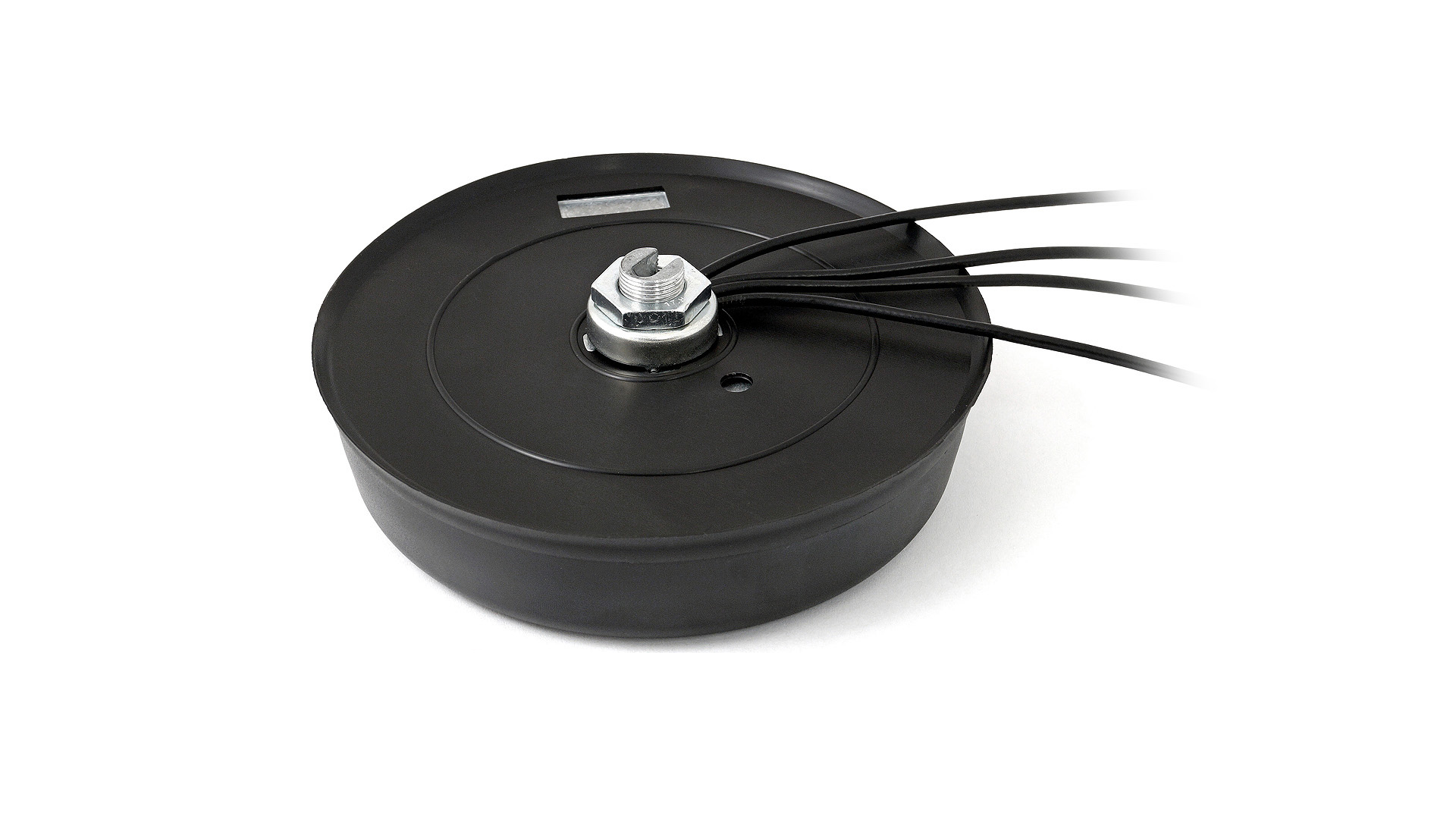

Covering 850 to 2.1GHz, GPS, GALILEO L1 & GLONASS & IRIDIUM (1.616 – 1.626 GHz), the antennas are housed in a high impact resistant ABS cover set on an aluminium machined base section. The antenna comes as standard in black but is also available in green and white. Specs are IP67, IK09, IP69K. Covers -40°C to +85°C

Technical Specifications & Features

  • Cable 1 AMPS (850 MHz) GSM (900 MHz) DCS (1800 MHz) PCS (1900 MHz) 3G (UMTS 2.1 GHz)
  • Cable 2 GPS (1575.42 MHz) GALILEO L1 (1575.42 MHz) GLONASS (1592 – 1610 MHz)
  • Cable 3 IRIDIUM (1.616 – 1.626 GHz)
  • Certificates IP67, IK09, IP69K
  • Operating temperature 40°C to +85°C
