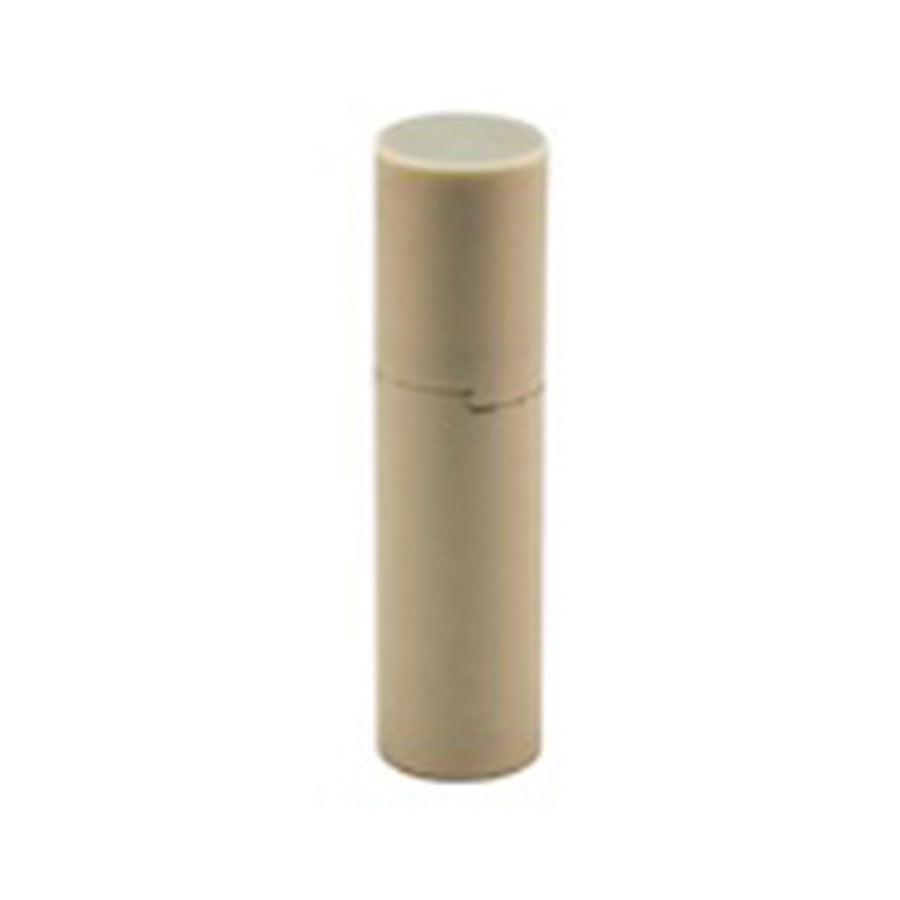

Multiband Topolino TNC 625i

Overview

Applications

  • Iridium Voice and SBD

Main features

  • Easy Integration
  • Groundplane independent
  • RoHS compliant
  • Good Axial ratio at low angles of elevation
  • Reduced height
  • IP 67 protected
  • Omnidirectional pattern
  • Good Axial ratio on azimuthal plane
  • TNC Male

Technical Specifications & Features



Dimensional Data
Dimensions 18mm x 70mm
Connector TNC Male
Temperature -60/105°C



 Antenna Specifications Iridium
Parameter Frequency/Band  1616 – 1626MHz
Gain (dBIC)(*)  0
VSWR (*) Typical Value  2
Imp (Ohm)  50
Polarization  RHCP
Axial Ratio (dB)(*)  < 3



View the Tech Specs Datasheet(PDF)
