2J-Multiband 2J6551

Manufacturer : Multiband Antennas Limited

Model : 2J6551

  • 4-in-1 Combination Antenna

  • Full 4G/LTE Backward Compatibility

  • Durability Rated: IP67, IK09, IP69K

  • Works in Extreme Climates: -40°C to +85°C

  • Ground Plane Dependent

2j
2j

2J-Multiband 2J6551


Manufacturer : Multiband Antennas Limited

Model : 2J6551

  • 4-in-1 Combination Antenna

  • Full 4G/LTE Backward Compatibility

  • Durability Rated: IP67, IK09, IP69K

  • Works in Extreme Climates: -40°C to +85°C

  • Ground Plane Dependent

Optimizing Versatility
With Reliability

The 2J6551BGF antenna from 2J brings reliable, constant truly global connectivity with the highest precision ideal for tracking/mapping devices, automotive navigation, commercial transportation, IoT/machine-to-machine connectivity, and worldwide video, voice, and data communications.

Compact Antenna With Versatility

The 2J6551BGF operates within 1616MHz-1627MHz frequencies. The Iridium® certified antenna offers reliable, truly global connectivity, including poles, oceans, and airways. This antenna is ideal for worldwide voice and data communications in a variety of situations.

  • Impact Resistant

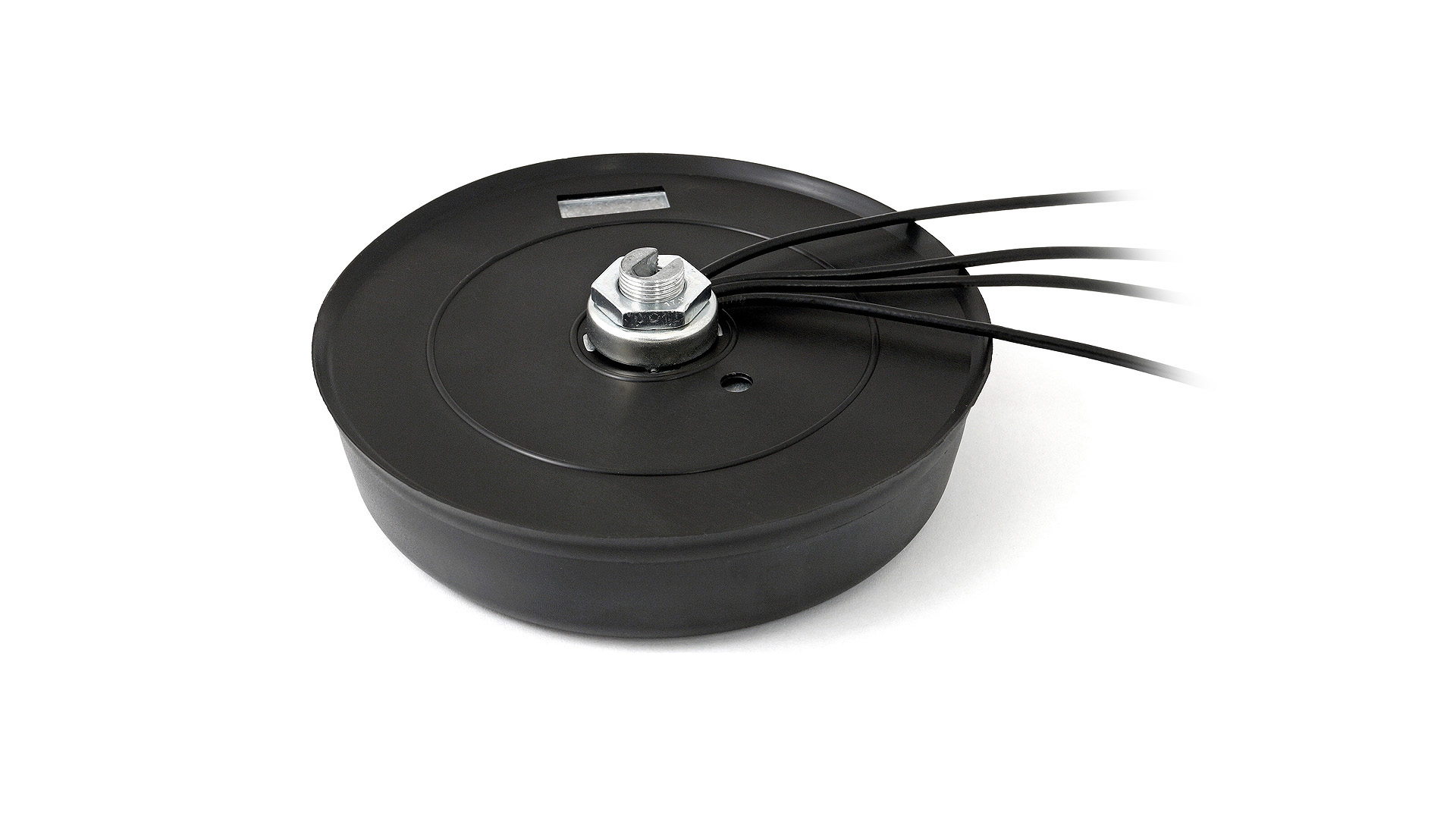

  • Anti-rotation mounting allows for antenna to stay in place upon installation; high impact resistant ABS cover set on an aluminum base section

  • Customizable Cable and Connector
  • Lengths of the cable are customizable to fit a variety of situations

  • Ground Plane Dependent
  • Requires an external ground plane to be present to focus its signal

  • Multiple Cables
  • Cable 1 AMPS (850 MHz)
    Cable 2 GPS (1575.42 MHz)
    Cable 3 Wi-Fi / Bluetooth (2.4 GHz)
    Cable 4 Iridium (1.616 – 1.626 GHz)

  • Multi-Band Capabilities
  • GSM (900 MHz), DCS (1800 MHz), PCS (1900 MHz), 3G (UMTS 2.1 GHz), GALILEO L1 (1575.42 MHz), GLONASS (1592 – 1610 MHz)

Product Specifications and Certifications

Technical Specifications

Mechanical
Dimensions ( H x Ø ) 31.5mm x 146mm
Iridium Embedded Technology Iridium 9602 Module , Iridium Core 9523 Module
Environmental
Operating Temperature Range -40 °C to +85 °C ℃
Antenna
Polarization RHCP
RF Interface
Frequency Range 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
I / O Impedence 50 Ohm
Network
Location Based Services 5G, 4G, 3G, 2G, LTE, CDMA

Certifications

  • Iridium Certified
  • IK09
  • IP67
  • IP69K

2J-Multiband 2J6551

The 2J6551BGF operates within 1616MHz-1627MHz frequencies. The Iridium® certified antenna offers reliable, truly global connectivity, including poles, oceans, and airways. This antenna is ideal for worldwide voice and data communications in a variety of situations.
