2J-Multiband 2JCP254260Xx

Manufacturer : Multiband Antennas Limited

Model : 2JCP254260Xx

  • Embedded Antenna
  • Thru-Hole Mount
  • Ground Plane Dependent
  • High Efficiency

2J-Multiband 2JCP254260Xx


Manufacturer : Multiband Antennas Limited

Model : 2JCP254260Xx

  • Embedded Antenna
  • Thru-Hole Mount
  • Ground Plane Dependent
  • High Efficiency

Low-Profile Ceramic Patch Thru-Hole Mount Antenna

Features

  • Embedded Antenna
  • Ground Plane Dependent
  • 5.1 dBic Iridium Peak Gain
  • High Efficiency
  • Ceramic Material
  • Iridium® Certified Antenna

Product Specifications and Certifications

Technical Specifications

Mechanical
Field Label Field Value

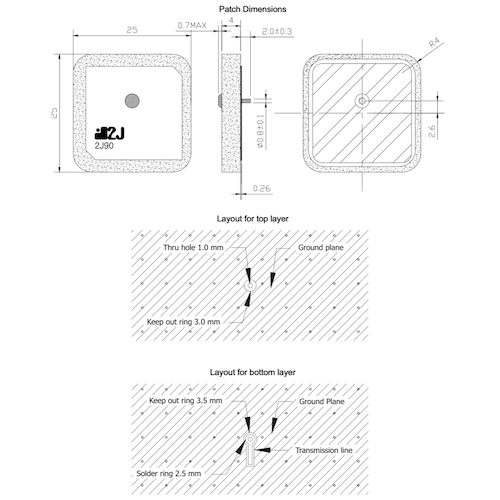

Dimensions ( L x W x H ) 25 x 25 x 4 mm
Iridium Embedded Technology Iridium 9602 Module , Iridium Core 9523 Module
Environmental
Field Label Field Value
Operating Temperature Range -40 to +85 ℃
Ingress Protection IP67, IP69
RF Interface
Field Label Field Value
Frequency Range 1616 - 1626.5 MHz
I / O Impedence 50 Ohm

Certifications

  • Iridium Certified
  • IP67
  • IP69
