2J-Multiband 25mm Patch Development Kit
Manufacturer : Multiband Antennas Limited
Model : 2JDK0226a-C104N
-
Ground Plane Independent
-
High Gain
-
Development Kit for Iridium®
-
Iridium Certified
2J-Multiband 25mm Patch Development Kit
Manufacturer : Multiband Antennas Limited
Model : 2JDK0226a-C104N
-
Ground Plane Independent
-
High Gain
-
Development Kit for Iridium®
-
Iridium Certified

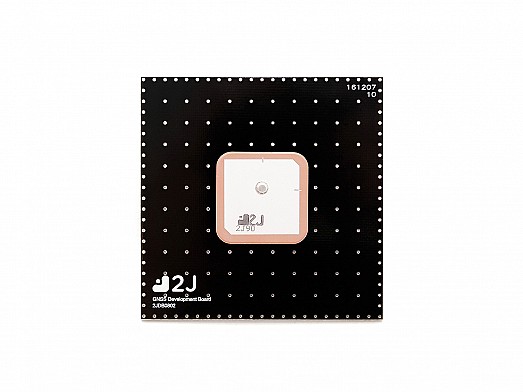

Iridium Certified 25mm Patch Development Kit
– 1616-1627 – Ceramic Patch 2JCP2542601a (2J 90)
– 1621-1632 – Ceramic Patch 2JCP2542602a (2J 91)
– 1626-1637 – Ceramic Patch 2JCP2542603a (2J 92)
– 1631-1642 – Ceramic Patch 2JCP2542604a (2J 93)
– 1636-1647 – Ceramic Patch 2JCP2542605a (2J 94)
– 1641-1652 – Ceramic Patch 2JCP2542606a (2J 95)
Features
- Ground Plane Independent
- High Gain
- Thru-Hole Mount

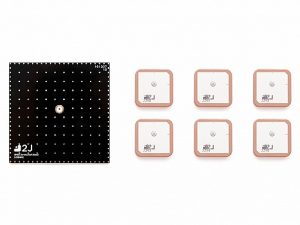

- Set of (6) Patches to Try on Devices
- Patches 25 x 25 x 4 mm
- Development Kit for Iridium
Product Specifications and Certifications
| Mechanical | |
|---|---|
| Dimensions (L x W x H) | 25mm x 25mm x 4mm |
| Iridium Embedded Technology | Iridium 9602 Module , Iridium Core 9523 Module |
| Environmental | |
| Operating Temperature Range | -40 to +85 ℃ |
| Storage Temperature Range | -40 to +85 ℃ |
| Antenna | |
| Type | Ceramic Passive Antenna |
| Polarization | RHCP |
| RF Interface | |
| Frequency Range | 1616 - 1652 MHz |
| I / O Impedence | 50 Ohm |
- Iridium Certified
- RoHS
