2J-Multiband 2JCP364260Xx

Manufacturer : Multiband Antennas Limited

Model : 2JCP364260Xx

  • Embedded Antenna

  • Ground Plane Dependent

  • Ceramic Material

  • Iridium® Certified Antenna

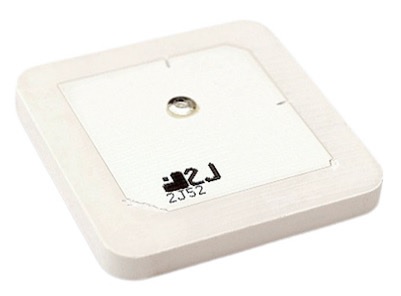

Multiband 2JCP364260Xx Product Image
Multiband 2JCP364260Xx Product Image

2J-Multiband 2JCP364260Xx


Manufacturer : Multiband Antennas Limited

Model : 2JCP364260Xx

  • Embedded Antenna

  • Ground Plane Dependent

  • Ceramic Material

  • Iridium® Certified Antenna

Iridium Ceramic Patch 36 x 36 x 4 mm Thru-Hole Mount Antenna for development and use on your own device.

Features

  • Embedded Antenna
  • Ground Plane Dependent
  • 4.5 dBic Iridium Peak Gain
  • Ceramic Material
  • Iridium Certified Antenna

Product Specifications and Certifications

Technical Specifications

Mechanical
Dimensions (L x W x H) 36mm x 36mm x 4mm
Iridium Embedded Technology Iridium 9602 Module , Iridium Core 9523 Module
Environmental
Operating Temperature Range -40 to +85 ℃
Antenna
Type Embedded
RF Interface
Frequency Range 1616 - 1626.5 MHz
I / O Impedence 50 Ohm

Certifications

  • Iridium Certified
