Iridium Core 9523

Overview

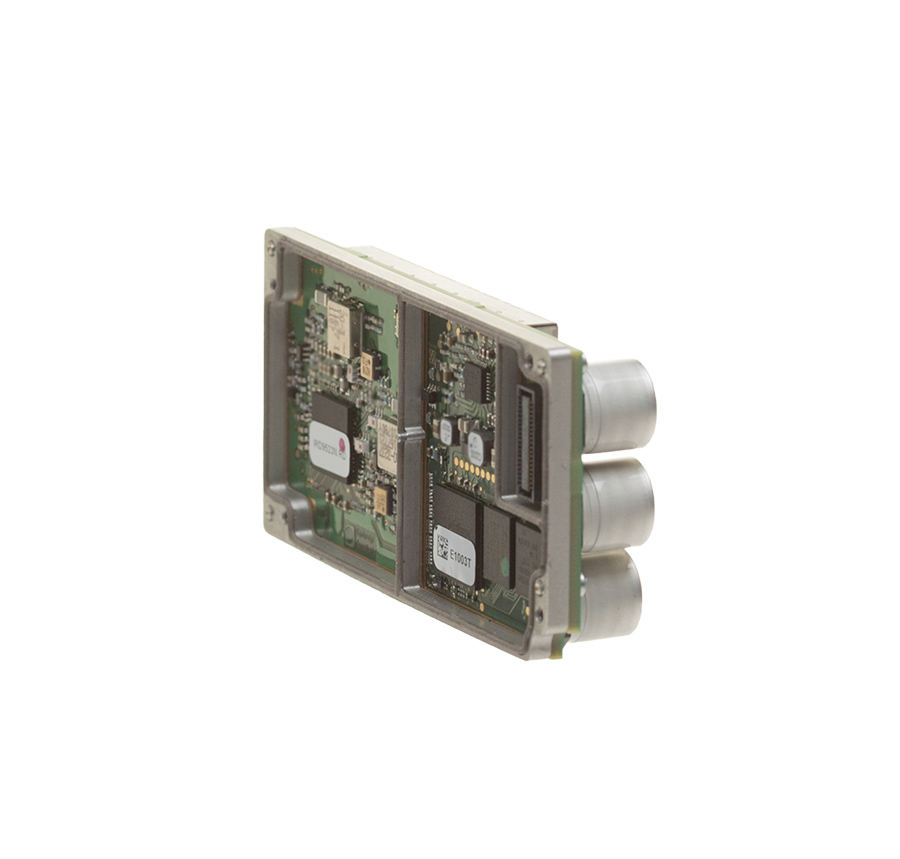

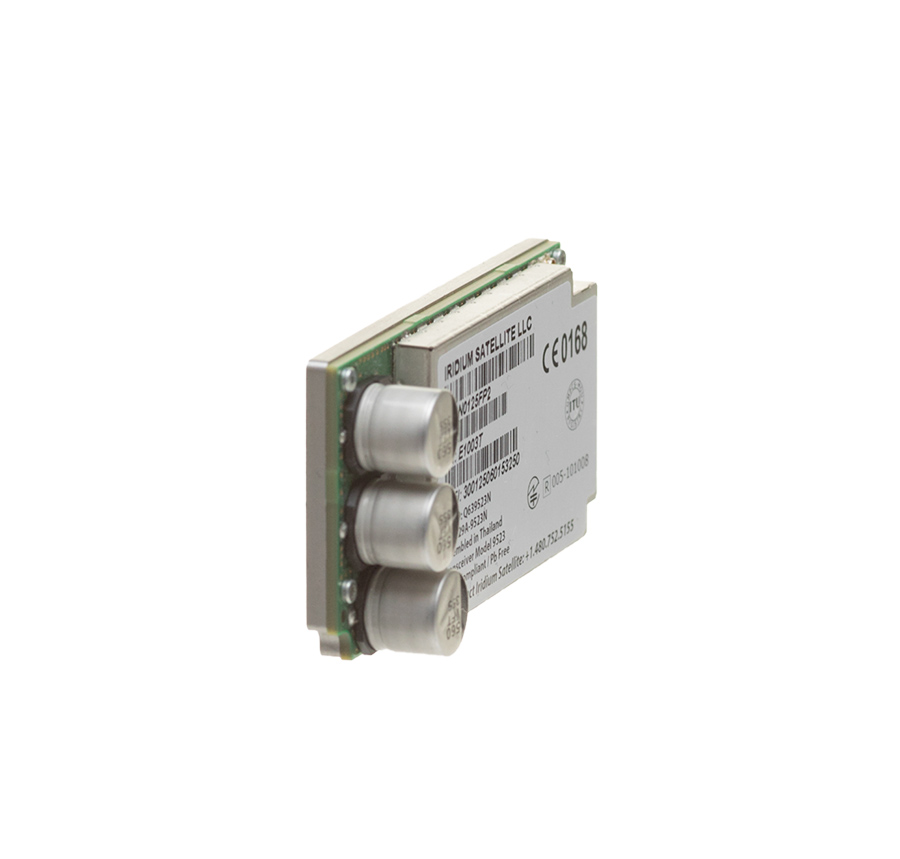

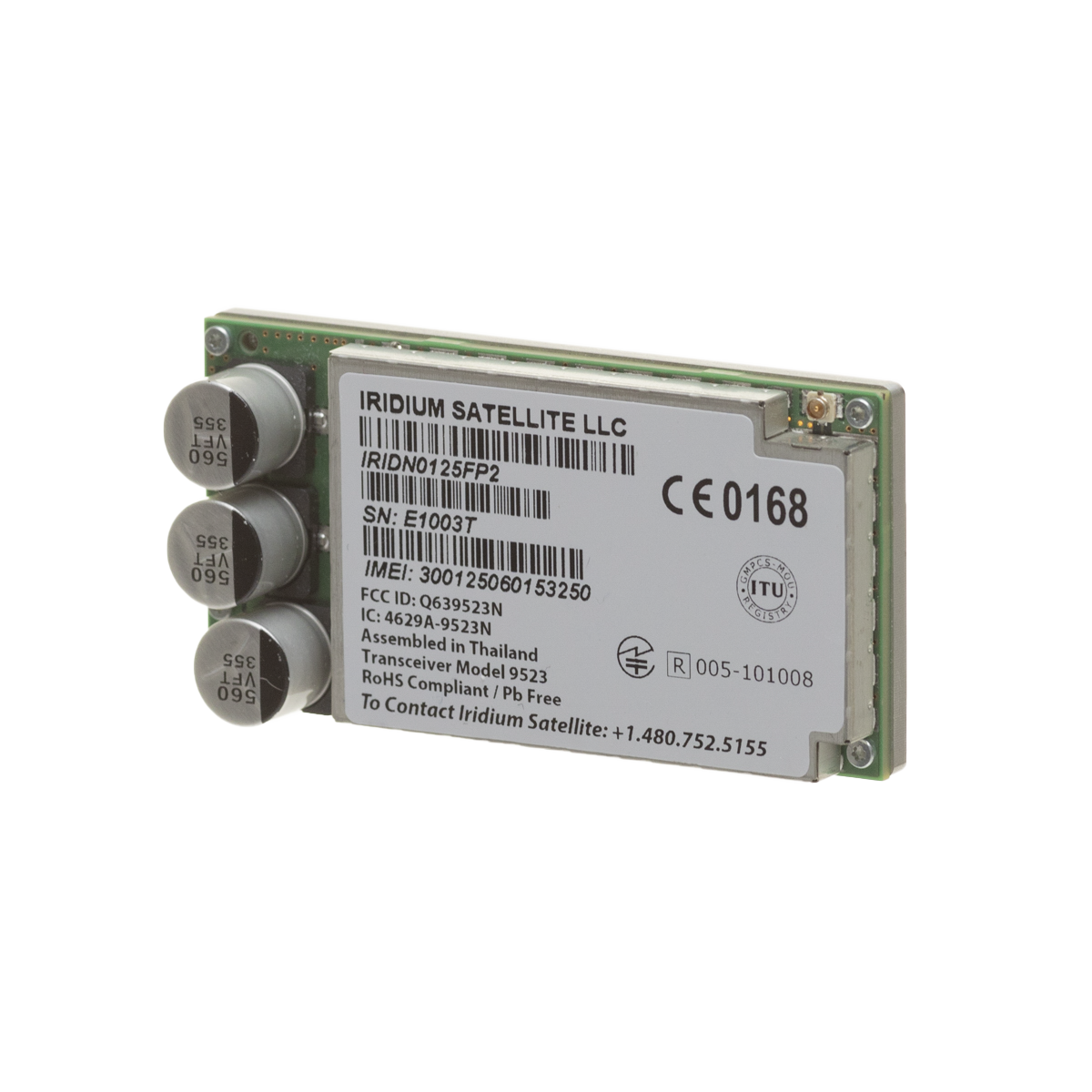

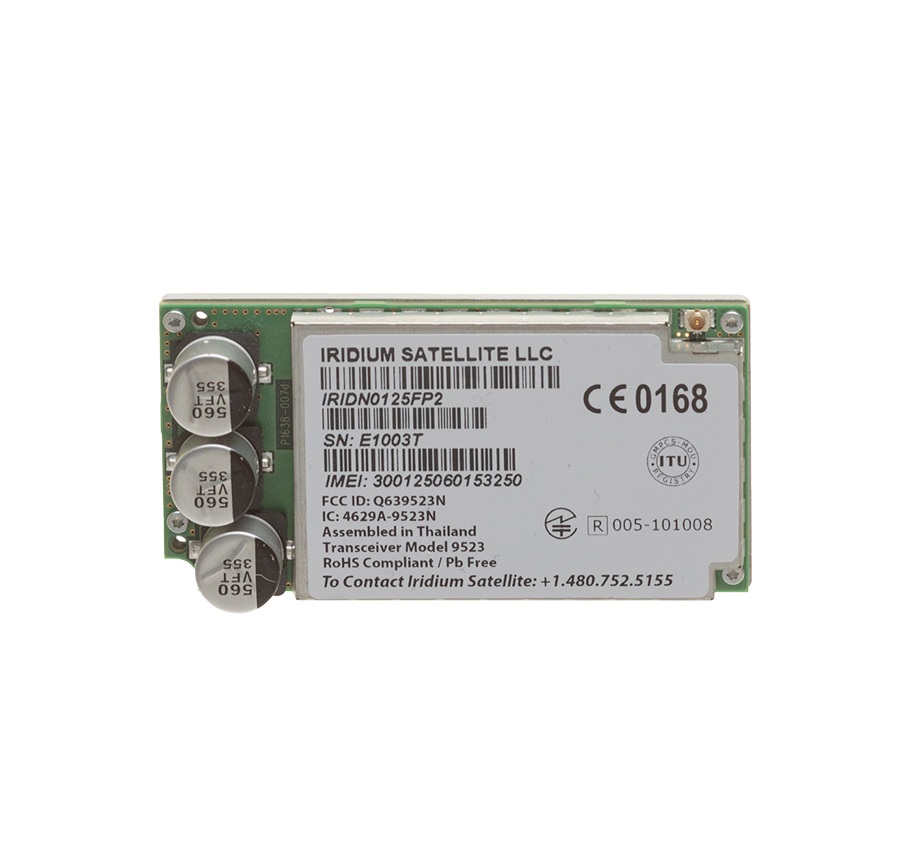

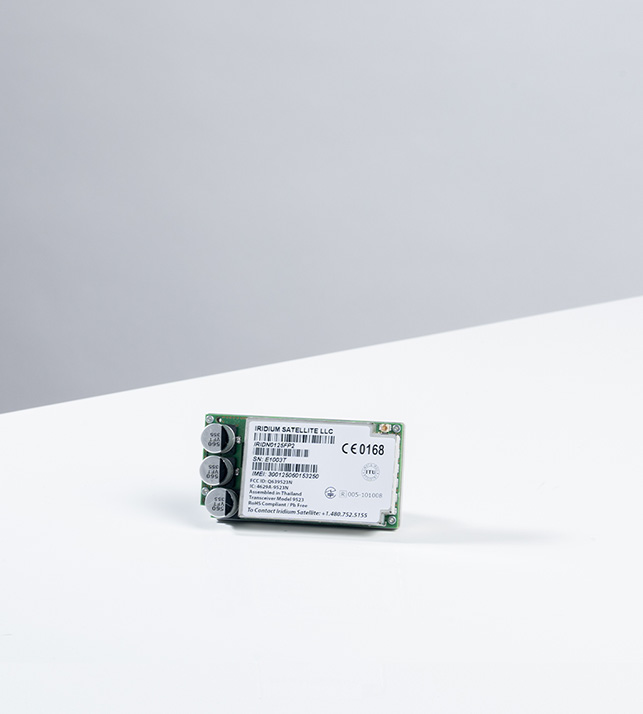

Iridium Core 9523 is Iridium’s smallest, lightest and most advanced voice and data satellite transceiver module ever, enabling simplified global voice and data connectivity through the world’s furthest reaching network.

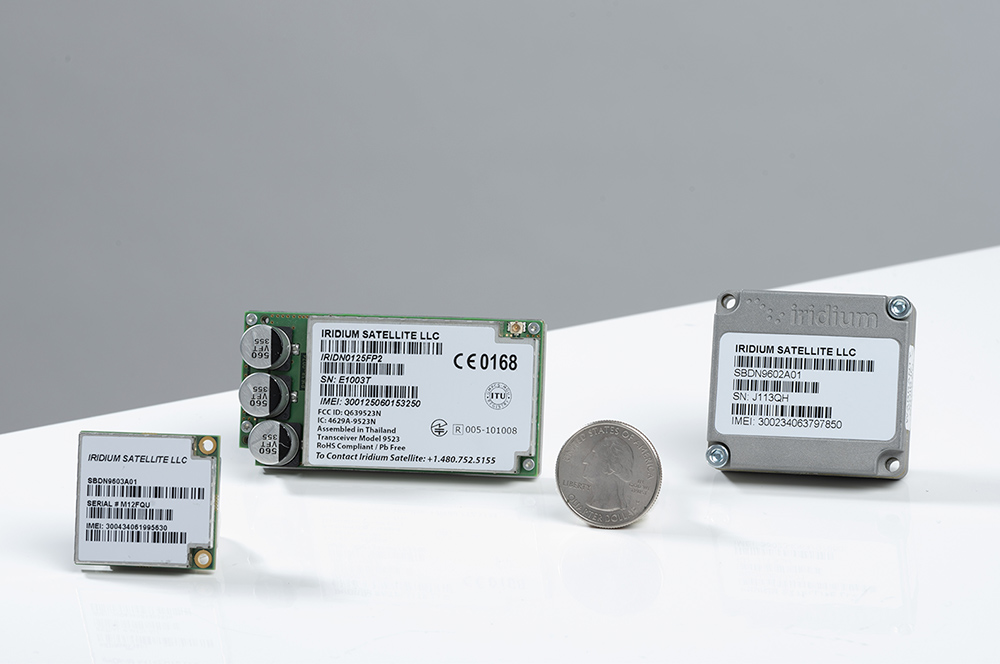

Over 90% more compact than our previous model and featuring standardized connectors, it easily integrates into new partner products to reach previously under-served consumer and vertical markets – and drive global communications in ways never thought possible.

Features

  • Pole-to-pole Global Coverage
  • Ultra Compact Form Factor
  • Single-board Transceiver
  • Standardized Connectors
  • Voice, Circuit Switched Data and RUDICS
  • Short Burst Data (SBD) Capable
  • Direct PCB Integration
  • FCC, Industry Canada, and CE Approval*



Technical Specifications

* For applications using an antenna with a gain of up to 3dbi.

Capabilities

  • Iridium Voice, SMS, Circuit Switched Data and RUDICS
  • Maximum Mobile Originated SBD Message Size 1960
  • Maximum Mobile Terminated SBD Message Size 1890


Mechanical Dimensions

  • Length: 70.44 mm
  • Width: 36.04 mm
  • Height: 14.6 mm (reservoir capacitors) 8.9 mm (screen can)
  • Weight: 32g


Environmental Specifications

  • Operating Temperature Range: -30ºC to + 70ºC
  • Operating Humidity Range: ≤ 75% RH
  • Storage Temperature Range: -40ºC to + 85ºC
  • Storage Humidity Range: ≤ 93 % RH


RF Interface

  • Frequency Range: 1616 MHz to 1626.5 MHz
  • Duplexing Method: TDD (Time Domain Duplex)
  • Input/Output Impedance: 50 ohms
  • Multiplexing Method: TDMA/FDMA


DC Power Input

  • VBAT Power Input Specifications
  • Nominal Voltage: +3.7 V
  • Voltage Limits: +3.2 V to +6 V
  • Maximal Current: 500 mA
  • VBAT Typical Current at Nominal: +3.7 V
  • Standby Current: 70 mA
  • Calling Current: (Peak) 300 mA
  • Calling Current: (Average) 110 mA


VBOOST Power Input

  • Nominal Voltage: +27 V
  • Absolute Maximal Voltage: +35 V
  • Maximal Recommended Voltage: +32 V
  • Minimal Voltage during Call Transmit Burst: +10.5 V
  • Maximal Current: 1 A


VBOOST Power Consumption

  • Typical Average Power During Call: 2.3 W
  • Maximal Average Power During Call: 3.1 W

Resources

BrochureLast UpdatedSize
Jan 17, 20181.16 MB
Size: 1.16 MB
File Name: BR_Iridium Core 9523_Brochure _ENG_(DEC14).pdf
Vendor: Iridium
File Type: PDF
Description: Brochure of Iridium 9523 in English
Products: Iridium Core 9523
Verticals: IoT
Jan 17, 2018776.04 KB
Size: 776.04 KB
File Name: BR_Iridium Core 9523_Brochure _RUS_(DEC15).pdf
Vendor: Iridium
File Type: PDF
Description: Brochure of Iridium 9523 in Russian
Products: Iridium Core 9523
Verticals: IoT
Jan 17, 20182.65 MB
Size: 2.65 MB
File Name: BR_Iridium M2M_Brochure_APR14.pdf
Vendor: Iridium
File Type: PDF
Description: Brochure for Iridium Machine-to-Machine (M2M) solutions.
Products: Iridium 9522B, Iridium 9602, Iridium 9603, Iridium Core 9523
Services: Iridium Burst®
Verticals: IoT
Jan 17, 20188.74 MB
Size: 8.74 MB
File Name: BR_Iridium SBD_Brochure_CHN_(NOV11).pdf
Vendor: Iridium
File Type: PDF
Description: Brochure of Iridium SBD in Chinese
Products: Iridium 9602, Iridium 9603, Iridium Core 9523, Iridium Edge®, Iridium Edge® Demo Kit
Services: Iridium Short Burst Data (SBD)
Verticals: IoT
Jan 17, 20182.21 MB
Size: 2.21 MB
File Name: BR_Iridium SBD_Brochure_ENG_(OCT13).pdf
Vendor: Iridium
File Type: PDF
Description: Brochure of Iridium SBD in English
Products: Iridium 9602, Iridium 9603, Iridium Core 9523, Iridium Edge®, Iridium Edge® Demo Kit
Services: Iridium Short Burst Data (SBD)
Verticals: IoT
Jan 17, 2018654.11 KB
Size: 654.11 KB
File Name: BR_Iridium SBD_Brochure_RUS_(DEC15).pdf
Vendor: Iridium
File Type: PDF
Description: Brochure of Iridium SBD in Russian
Products: Iridium 9602, Iridium 9603, Iridium Core 9523, Iridium Edge®, Iridium Edge® Demo Kit
Services: Iridium Short Burst Data (SBD)
Verticals: IoT
Case Study
Jun 20, 2019798.9 KB
Size: 798.9 KB
File Name: CS_Iridium+Connected+Drones+Deliver+Vaccines_Swoop+Aero_060619.pdf
Vendor: M2M Connectivity Pty Ltd
File Type: PDF
Description:

Company Swoop Aero uses drones equipped with Iridium Core 9523 Transceivers to deliver vaccines and medical supplies to remote islands in the South Pacific Ocean. The Iridium® technology on board helps monitor the location and condition of the precious packages. The on-demand supply of vaccines leads to higher immunization rates of kids in hardly-accessible places and proves to be a more economical transportation method for the delivery of primary health care services.

Products: Iridium Core 9523
Services: Iridium Short Burst Data (SBD)
Verticals: Land Mobile
Jan 09, 20191000.33 KB
Size: 1000.33 KB
File Name: CS_Iridium+Enables+Positive+Train+Control_GSE_DEC18.pdf
Vendor: Global Satellite Engineering Inc.
File Type: PDF
Description:

“The Iridium Connected® GSE MCG-101 product powered by Short Burst Data® helps railroad companies meet important regulatory standards and minimize train collisions.”

Products: Iridium Core 9523
Services: Iridium Short Burst Data (SBD)
Verticals: IoT
Jan 17, 201816.5 MB
Size: 16.5 MB
File Name: CS_Iridium+Polar+Research+Solutions_MAY18.pdf
Vendor: Iridium
File Type: PDF
Description:

Case Study concerning Iridium's Polar Research Solutions

Products: Iridium 9522B, Iridium 9602, Iridium 9603, Iridium Core 9523
Services: Circuit Switched Data (CSD), Iridium Location-Based Services (LBS), Iridium RUDICS, Iridium Short Burst Data (SBD), Iridium SMS
Verticals: IoT
Feb 21, 2020929.08 KB
Size: 929.08 KB
File Name: CS_Iridium+Technology+Enables+Tropical+Cyclone+Forecasts_Atmosphere+PLANET+Terminal_022120.pdf
Vendor: ATMOSPHERE
File Type: PDF
Description:

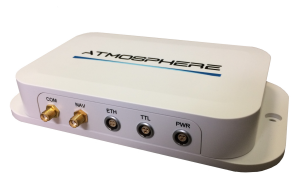

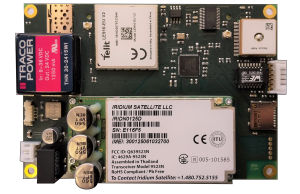

The ReNovRisk project uses innovative technology to improve the understanding and modelling of tropical cyclones in the South-West Indian Ocean (SWIO), with the goal of making populations in the SWIO less vulnerable to the hazards associated with cyclones. Iridium Connected unmanned aerial vehicles (UAVs) allow the program operators to take advantage of Iridium’s Global Line of SightSM services to perform missions that allow them to better understand storm formation and provide more precise weather forecasts.
