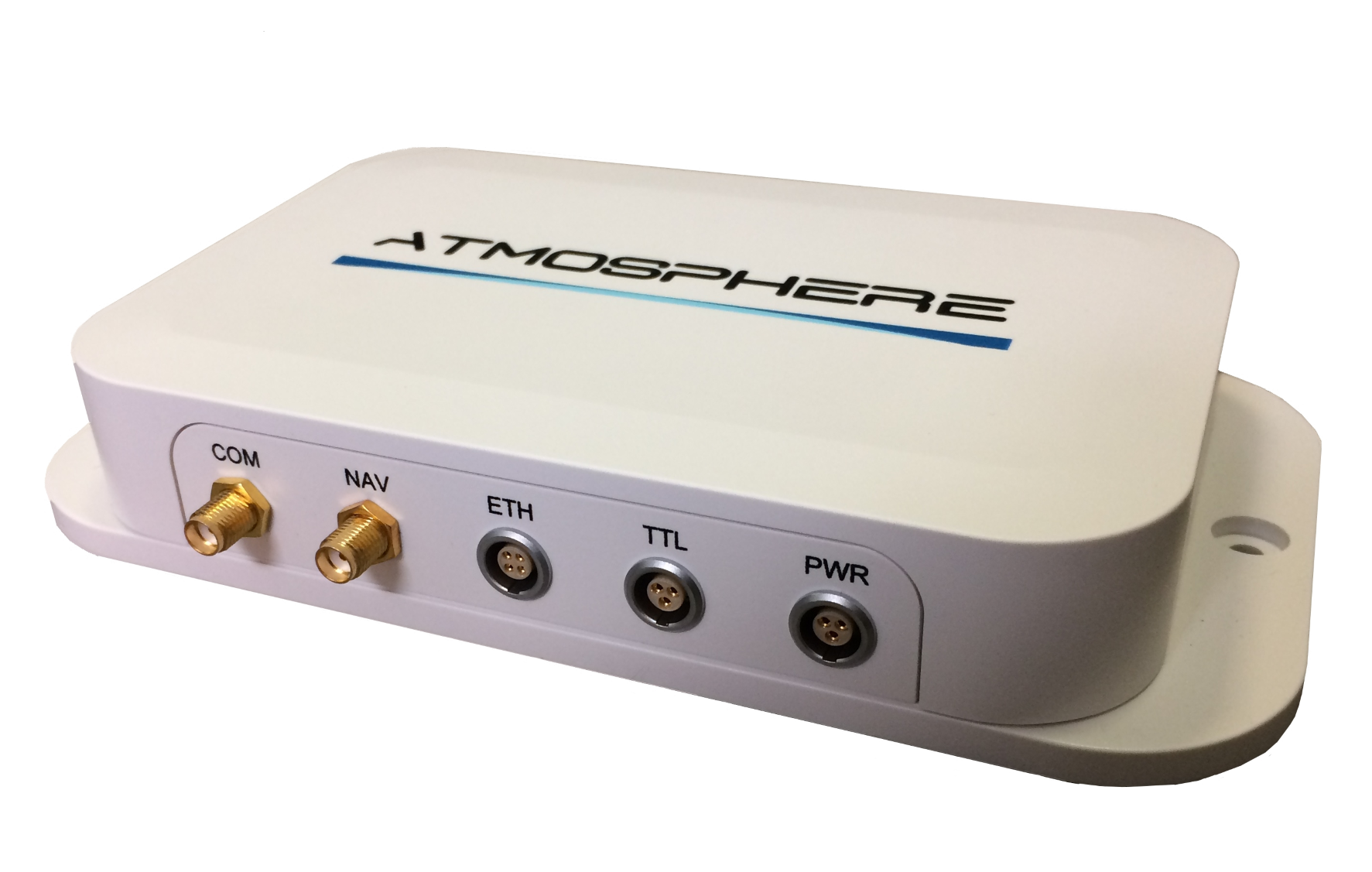

PLANET 9523 UAV Terminal

Manufacturer : ATMOSPHERE

Model : PLANET 9523 UAV

  • Light Data Equipment for Ground, Air, and Sea mobility

  • Autonomous Systems Connectivity & Real-Time, Mission-Critical Data Exchange

  • Applications: tracking, telemetry, telecommand, messaging, weather

  • Native IP, MQTT, MAVLINK protocols, open PLANET API

  • Web Cloud interface

PLANET 9523 UAV Terminal


Manufacturer : ATMOSPHERE

Model : PLANET 9523 UAV

  • Light Data Equipment for Ground, Air, and Sea mobility

  • Autonomous Systems Connectivity & Real-Time, Mission-Critical Data Exchange

  • Applications: tracking, telemetry, telecommand, messaging, weather

  • Native IP, MQTT, MAVLINK protocols, open PLANET API

  • Web Cloud interface

Mobile Router For Autonomous Systems Connectivity

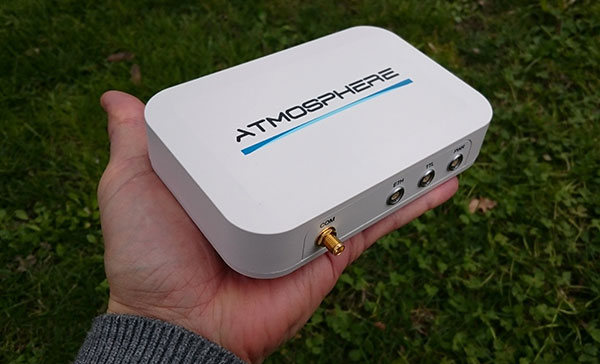

The PLANET 9523 UAV Terminal is a light equipment that enables mobile data communication on the ground, in the air, or at sea, using the Iridium satellite constellation and terrestrial cellular networks (LTE).

The terminal acts as a universal mobile router equipment for autonomous systems connectivity and real-time, mission-critical data exchange. Its unique link control software provides optimal QoS management. The terminal can route generic IP packets and supports remote platform management protocols like MQTT or MAVLINK.

Embedded application software provides added value functions such as tracking, telemetry, messaging, weather data exchange, and more. Hosted in the cloud, the PLANET Web user interface enables service access to any connected device–to include tablet, laptop, and desktop.

The PLANET 9523 UAV Terminal operates over a wide range of input voltage (9.0-36VDC) and is interfaced with external processors through ethernet, serial or WiFi link. It has an extensive storage capacity (SD Card), and includes a GPS receiver for autonomous timing and location.

Additional sensors can be integrated.

Connectivity & Sensors





  • No internal battery
  • Fanless ARM Processor Board
  • Linux OS
  • Cellular Modem (option)
  • GPS receiver
  • Sensors
  • Options: ADS-B, Inertial, Pressure

  • Memory
  • Up to 512GB storage

  • Wifi Module

Related Case Studies

Iridium Connected® UAVs Help Forecast Tropical Cyclones

New UAVs equipped with ATMOSPHERE’s Iridium Connected® terminal can react in real-time to weather conditions and capture more data due to Iridium’s Global Line of Sight℠ (GLOS℠) services.

Related Case Studies

New UAVs equipped with ATMOSPHERE’s Iridium Connected® terminal can react in real-time to weather conditions and capture more data due to Iridium’s Global Line of Sight℠ (GLOS℠) services.

Product Specifications and Certifications

Technical Specifications

Mechanical
Dimensions (L x W x H) 180mm x 100mm x 30mm
Volume 540 cc
Weight 260 g
Iridium Embedded Technology Iridium Core 9523 Module
Environmental
Operating Temperature Range -25°C to +70°C ℃
Power
Input Voltage Range 9 to 36 VDC
Transmit Current Average 700 average mA
Transmit Current Peak 2 peak A
Wi-Fi
Wi-Fi Enabled Yes

Certifications

Iridium Certification
