PLANET 9523 OEM Board
-
Light Data Communication Board For Ground, Air, & Sea Mobility
-
Autonomous Systems Connectivity & Real-Time Critical Mission Data Exchange
-
Applications: Tracking, Telemetry, Telecommand, Messaging, & Weather
-
Native IP, MQTT, & MAVLINK Protocols. Open PLANET API
-
Web Cloud Interface
PLANET 9523 OEM Board
Manufacturer : ATMOSPHERE
Model : PLANET 9523 OEM TC005-006 Board
-
Light Data Communication Board For Ground, Air, & Sea Mobility
-
Autonomous Systems Connectivity & Real-Time Critical Mission Data Exchange
-
Applications: Tracking, Telemetry, Telecommand, Messaging, & Weather
-
Native IP, MQTT, & MAVLINK Protocols. Open PLANET API
-
Web Cloud Interface
Iridium Satellite & LTE Connectivity Board

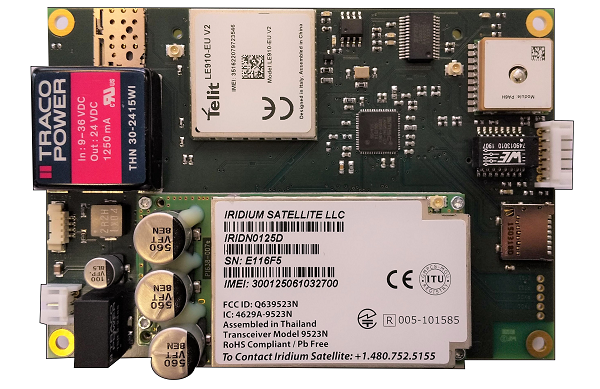

The PLANET 9523 OEM TC06 Board is a mobile Iridium® Satellite and LTE connectivity board. It integrates a 9523N Iridium Modem and a Telit LTE Modem with their SIM card holders. The board is based on an ARM processor and includes an SD card providing up to 512Gb of data storage. A GPS receiver provides autonomous timing and location. The board supports Ethernet, USB and WiFi connectivity. The board is optionally fitted with an ADS-B receiver, an inertial sensor, and environmental conditions sensors (Pressure, Temperature, and Humidity).
Connectivity & Sensors
- Linux OS
- Fanless ARM Processor Board
- Cellular Modem
-
Optional
- Wifi Module
- GPS Receiver
- Sensors
-
Optional: ADS-B, Inertial, & Pressure
- Storage
-
Up To 512GB Memory
Product Specifications and Certifications
| Mechanical | |
|---|---|
| Dimensions (L x W x H) | 112mm x 75mm x 20mm |
| Weight | 98 g |
| Iridium Embedded Technology | Iridium Core 9523 Module |
| Environmental | |
| Operating Temperature Range | -25°C to +70°C ℃ |
| Power | |
| Input Voltage Range | 9 to 36 VDC |
| Data Power | 8 W |
| Wi-Fi | |
| Wi-Fi Enabled | Yes |
Iridium Certification
