2J-Multiband 2J6726

Manufacturer : Multiband Antennas Limited

Model : 2J6726

  • Exclusively Designed for Iridium®
  • Ground Plane Independent
  • High Efficiency
  • Anti-Rotation Mounting
  • 4.5 dBic Iridium Peak Gain
2J Multiband 2j6726 antenna product photo

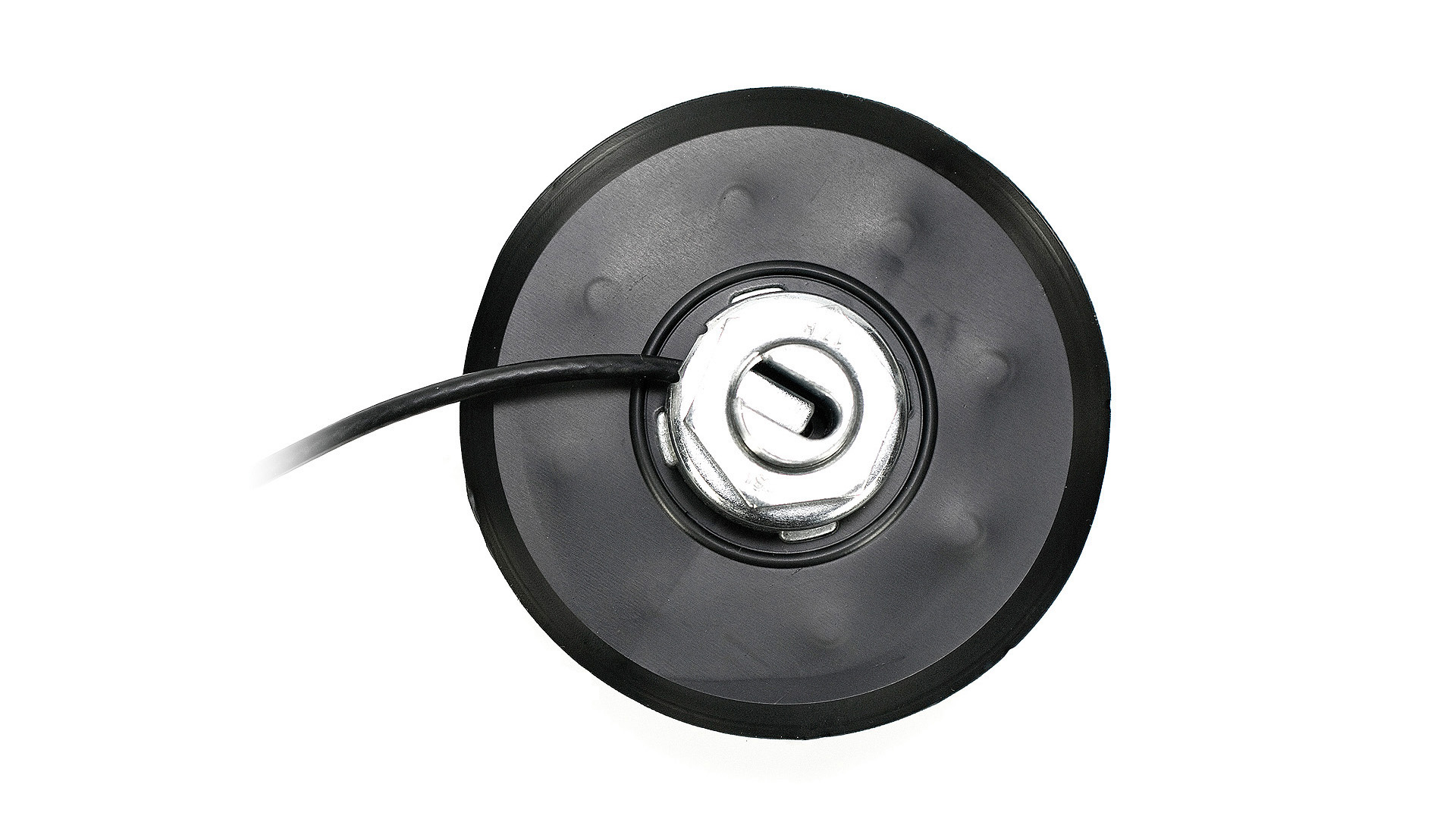

2J Multiband 2j6726 antenna product photo from bottom
2J Multiband 2j6726 antenna product photo
2J Multiband 2j6726 antenna product photo from bottom

2J-Multiband 2J6726


Manufacturer : Multiband Antennas Limited

Model : 2J6726

  • Exclusively Designed for Iridium®
  • Ground Plane Independent
  • High Efficiency
  • Anti-Rotation Mounting
  • 4.5 dBic Iridium Peak Gain

High Speed and Quality Signal Output

The Iridium Screw Mount Dome Antenna (2J6726B) offers the most reliable truly global connectivity for Iridium standards and brings an optimal signal quality within 1616 MHz -1627 MHz frequencies. With full access to the Iridium Satellite Constellation, the 2J6726B brings worldwide M2M connectivity with maximum signal strength, speed and quality.

Worldwide Voice and Data Transmitting

The 2J6726B is the ideal solution for worldwide satellite voice and data communication in commercial, residential, emergency and transportation markets. The hemispherical radiation pattern provides a full range signal strength and signal quality.

  • Heavy Duty Antenna
  • Durable and weather resilient, allowing for installation anywhere, IP67 rated
  • Ground Plane Independent
  • Does not require an external ground plane to be present to focus its signal
  • Customizable Cable and Connector
  • 1.5m Low Loss LMR195/RG58/H155 Cable Used with SMA Male Connector, Lengths of the cable are customizable to fit a variety of situations

Product Specifications and Certifications

Technical Specifications

Mechanical
Dimensions (L x W x H) 66.5mm x 7733mm
Weight 36.5 g
Environmental
Operating Temperature Range -40 to 85 ℃
Durability Standard IP67
RF Interface
Frequency Range 1616 to 1626 MHz

Certifications

  • IP67

2J-Multiband 2J6726

The 2J6726B is the ideal solution for worldwide satellite voice and data communication in commercial, residential, emergency and transportation markets. The hemispherical radiation pattern provides a full range signal strength and signal quality.
