2J-Multiband 2JP0126B

Manufacturer : Multiband Antennas Limited

Model : 2JP0126B

  • Ground Plane Independent
  • High Performance, High Efficiency
  • Customizable Cable and Connector

2J-Multiband 2JP0126B


Manufacturer : Multiband Antennas Limited

Model : 2JP0126B

  • Ground Plane Independent
  • High Performance, High Efficiency
  • Customizable Cable and Connector

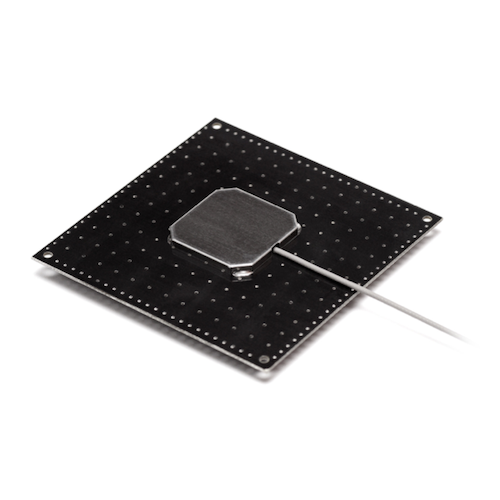

High Performance, Internal Passive Antenna on 7 x 7cm PCB

Features

  • Internal Antenna
  • Ground Plane Independent
  • 5.0 dBi Iridium® Peak Gain
  • High Performance
  • High Efficiency
  • Customizable Cable and Connector
  • Iridium Certified Antenna

Product Specifications and Certifications

Technical Specifications

Mechanical
Field Label Field Value
Dimensions ( L x W x H ) 70 x 70 x 7.3 mm
Iridium Embedded Technology Iridium 9602 Module , Iridium Core 9523 Module
Environmental
Field Label Field Value
Operating Temperature Range -40 to +85 ℃
Antenna
Field Label Field Value
Type Internal Passive Antenna
RF Interface
Field Label Field Value
Frequency Range 1616 - 1626.5 MHz
I / O Impedence 50 Ohm

Certifications

  • Iridium Certified
