2J-Multiband 2J6926

Manufacturer : Multiband Antennas Limited

Model : 2J6926

  • 1616-1626.5 MHz
  • Ground Plane Independent
  • One Form Factor - (3) Versions

2J-Multiband 2J6926


Manufacturer : Multiband Antennas Limited

Model : 2J6926

  • 1616-1626.5 MHz
  • Ground Plane Independent
  • One Form Factor - (3) Versions

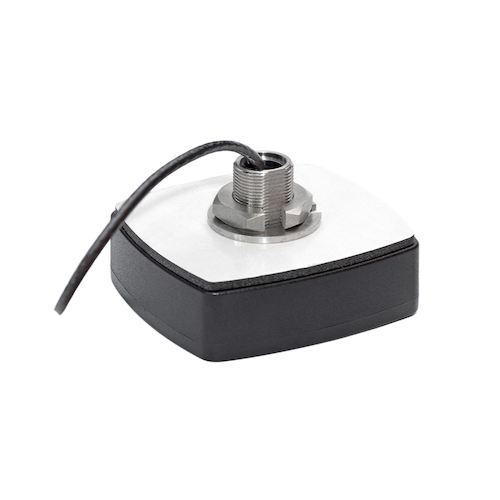

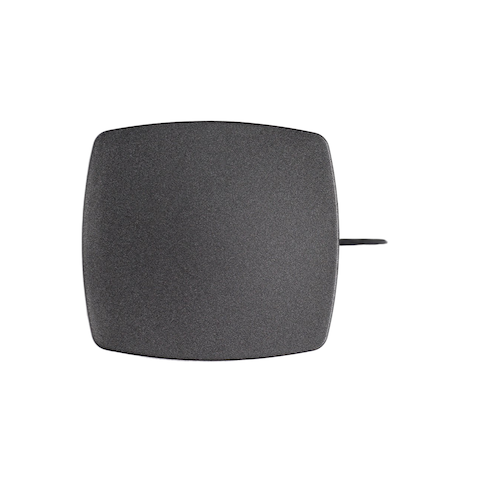

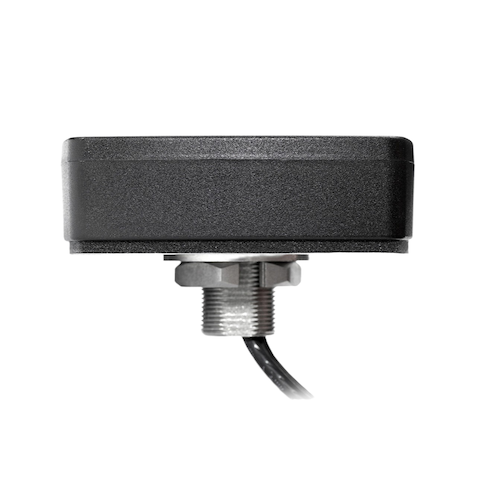

Phoenix Iridium® Certified Low Profile High Gain Antenna – Available in Screw Mount, Magnetic Mount and Adhesive Patch Mount

Features

  • Iridium Certified Antenna
  • Ground Plane Independent
  • 4.5 dBic IRIDIUM Peak Gain
  • High Gain
  • Low Profile
  • Anti-Rotation Mounting
  • One Form Factor – 3 Version
  • Customizable Cable and Connector

Product Specifications and Certifications

Technical Specifications

Mechanical
Field Label Field Value
Dimensions ( L x W x H ) 74 x 80 x 25.6 mm
Iridium Embedded Technology Iridium 9602 Module , Iridium Core 9523 Module
Environmental
Field Label Field Value
Operating Temperature Range – 40 to +85 ℃
Ingress Protection IP67, IP69
RF Interface
Field Label Field Value
Frequency Range 1616 - 1626.5 MHz
I / O Impedence 50 Ohm
Network
Field Label Field Value
Location Based Services GPS, GLONASS, Galileo

Certifications

  • Iridium Certified
  • IP67
  • IP69
