2J-Multiband 2JP0133BGF

Manufacturer : Multiband Antennas Limited

Model : 2JP0133BGF

  • Ground Plane Independent

  • 1616-1627 Mhz

  • Low Power Consumption

2J-Multiband 2JP0133BGF


Manufacturer : Multiband Antennas Limited

Model : 2JP0133BGF

  • Ground Plane Independent

  • 1616-1627 Mhz

  • Low Power Consumption

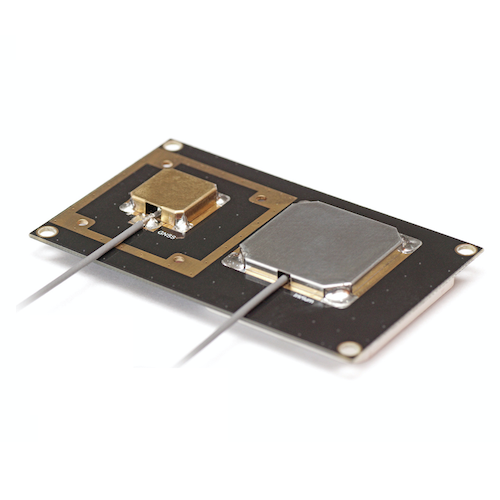

GPS/GLONASS and Iridium® Screw Mount Embedded Dual Antenna

Features

  • 2-in-1 Combination Antenna
  • Internal Antenna
  • Iridium Certified Antenna
  • 4.5 dBi Iridium Peak Gain
  • Active GNSS Antenna
  • 28 dB GNSS Active Gain
  • Pre-Filter GNSS
  • Voltage Range 1.5 – 3.6 V
  • Customizable Cable and Connector

Product Specifications and Certifications

Technical Specifications

Mechanical
Dimensions (L x W x H) 45mm x 75mm x 8.8mm
Iridium Embedded Technology Iridium 9602 Module , Iridium Core 9523 Module
Environmental
Operating Temperature Range -40 to +85 ℃
RF Interface
Frequency Range 1575 - 1606, 1616 - 1626.5 MHz
I / O Impedence 50 Ohm
Power
Input Voltage Range 1.5 - 3.6 V
Network
Location Based Services GPS, Glonass, Galileo

Certifications

  • Iridium Certified
