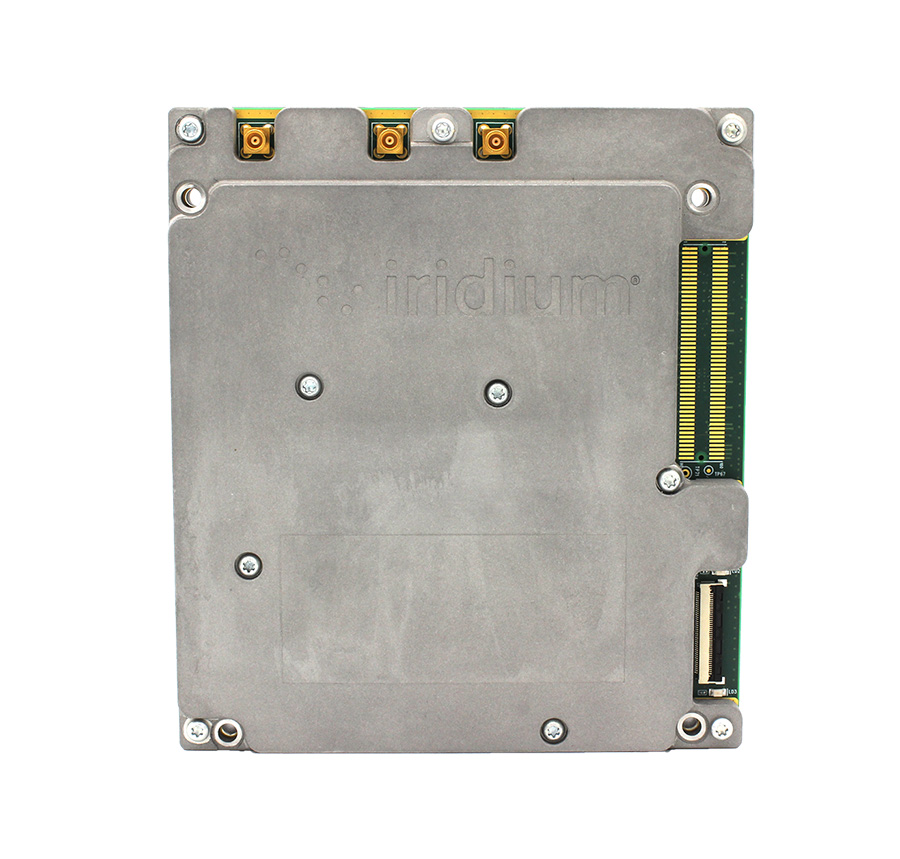

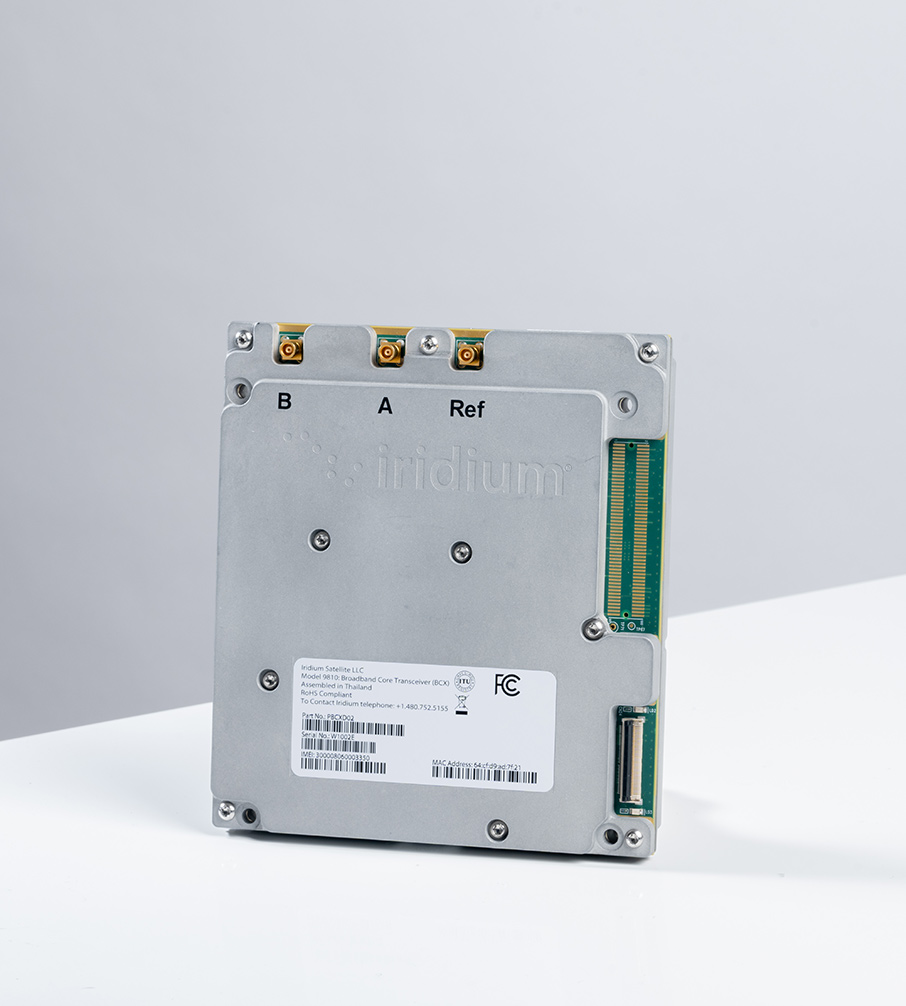

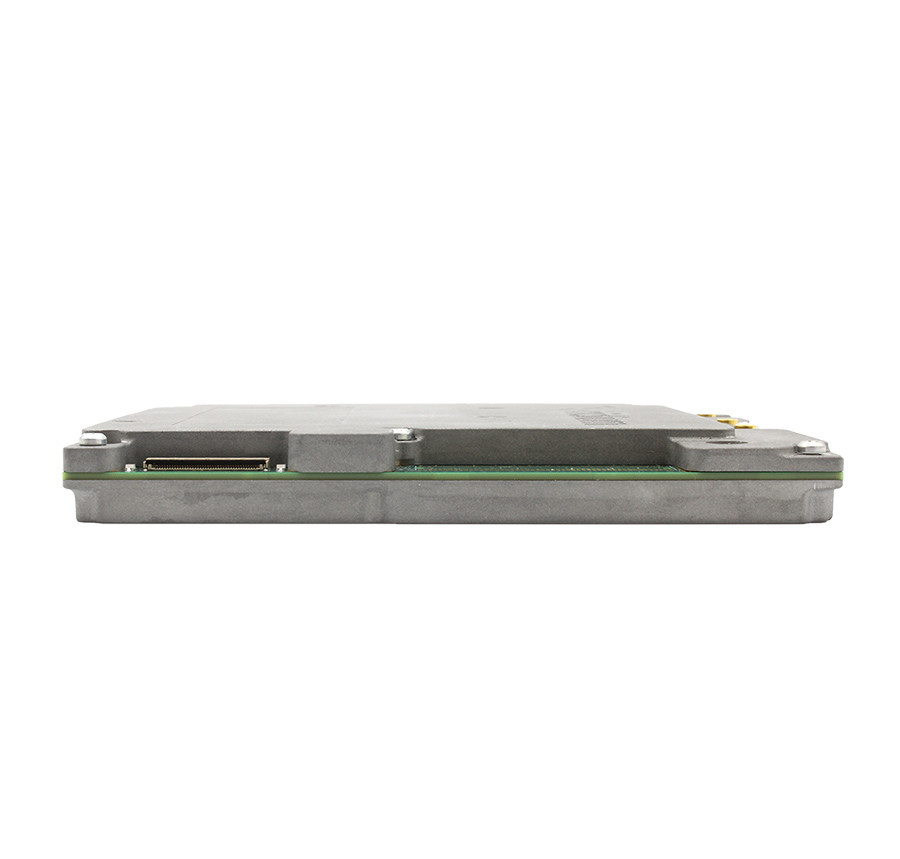

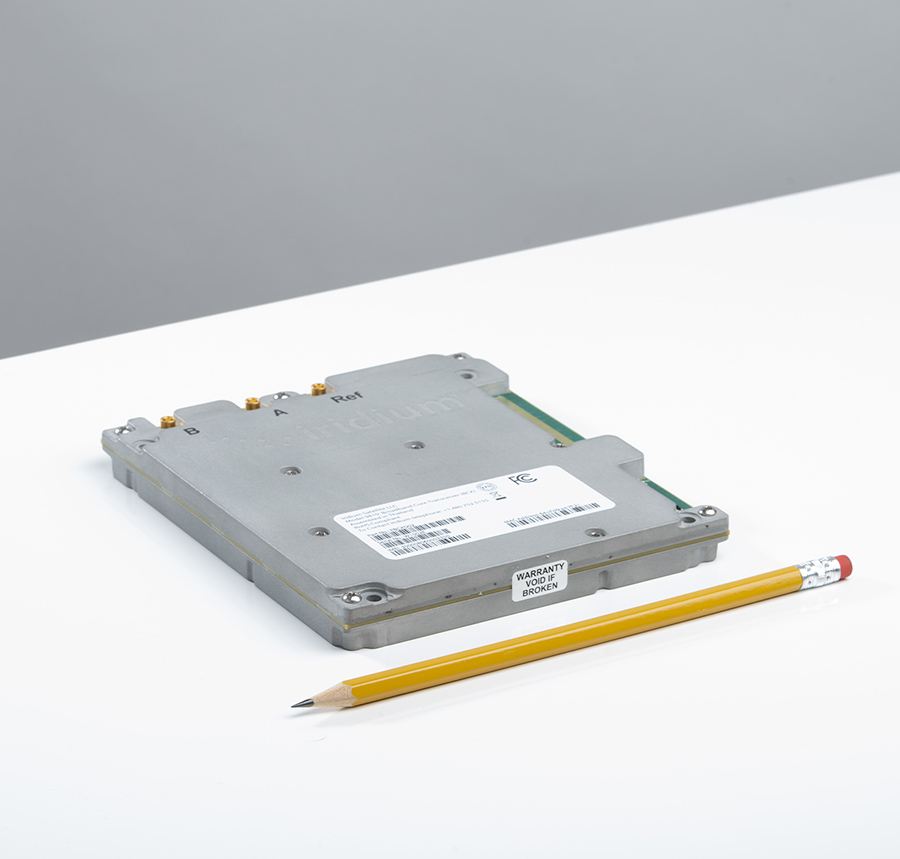

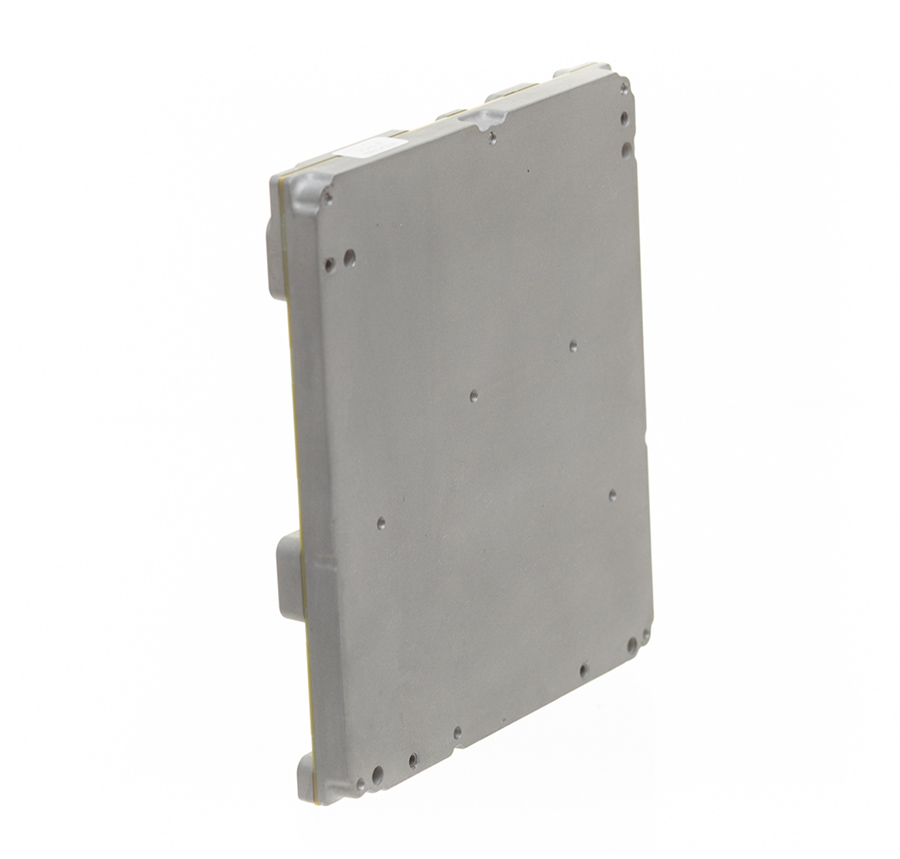

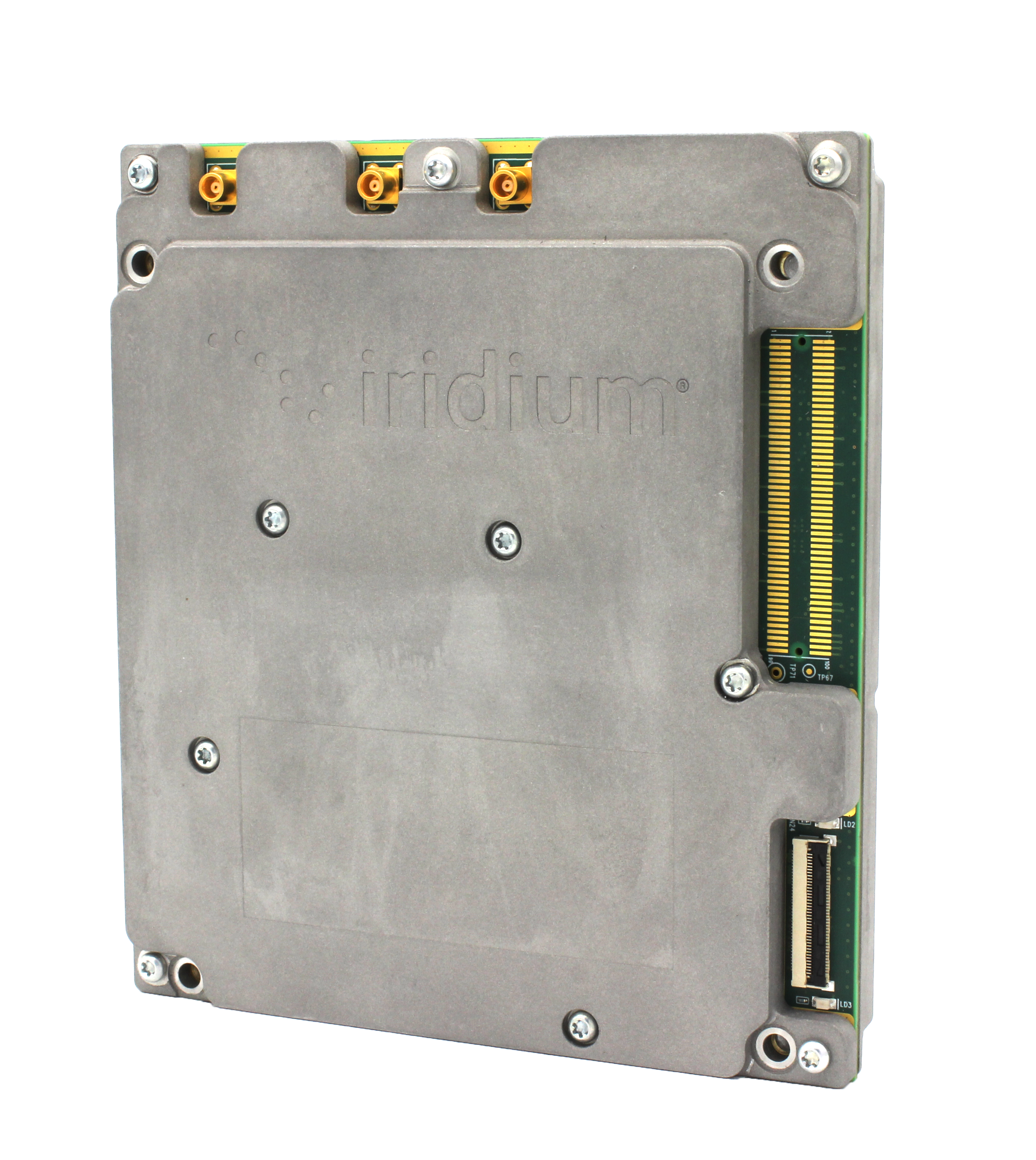

Iridium CertusTM 9810

Optimized for the fastest L-Band speeds available, the Iridium Certus 9810 is the core digital and radio frequency (RF) module of the Iridium Certus satellite communications service for a variety of specialty broadband service classes. Integrated with Broadband Application Electronics (BAE), antenna (BAA), and appropriate amplifiers, the Iridium Certus 9810 provides multiple data speed rates, three simultaneous high-quality voice calls, and much more. Uniquely designed to support Iridium Certus L-Band services and backed by unmatched network quality, this transceiver delivers cost-effective satellite voice and data communications for single or multi-channel communication platforms for maritime, land, and aviation markets.

Features

  • Specialty Broadband Speeds up to 350 Kbps Transmit, 700 Kbps Receive
  • Three (3) Simultaneous High-quality Iridium Certus® Voice Lines
  • High-speed Streaming (up to 256 Kbps)
  • Secondary Data Flows
  • IP Data
  • Iridium Certus® Messaging



Benefits

  • Highly Mobile and Scalable
  • Multi-Service Connectivity
  • Truly Global Coverage
  • Low Latency
  • Uncompromising Reliability
  • Optimal Signal Delivery



Technical Specifications


Mechanical

  • Length: 150.6 mm / 5.93 in
  • Width: 133.6 mm / 5.26 in
  • Depth: 18.2 mm / 0.72 in
  • Weight: 0.5 Kg / Less than 1 Lb


Environmental

  • Temperature: -40ºC to +75ºC (Operating), -40ºC to +85ºC (Storage)
  • Humidity: ≤ 93% RH
  • Shock (withstand): 3 half sine pulse shocks in each axis with a peak amplitude of 10 g and pulse duration of 11 ms


RF Parameters

  • Frequency range: 1616 to 1626 MHz


Power

  • Input Voltage: 12 VDC +/- 10%
  • DC Power Consumption: 12.6 W (monitor mode), 14.7 W (low data rate), 17.4 W (high data rate)
