Intellian C700
By : Intellian Technologies, Inc. | Model : C700
Application: Maritime Leisure | Merchant | On-Board Communications | Passenger Communications | Safety Services | Safety Services | Tracking and Monitoring
- Maritime Satellite Terminal Offering Iridium Certus® 700 Service
- 12-Element Patch Antenna for Optimal Low Elevation Angle Performance
- Stand-alone & Rack Versions Available
- GMDSS Ready
- Three (3) High Quality Voice Lines with Soft PBX Function
- Supports Up to (16) SIP Phones & (2) Analog Phones
- 4-Port Ethernet (LAN) PoE & WAN
- Built-in WAN for Least-cost Routing of Data Traffic Via 3G/LTE

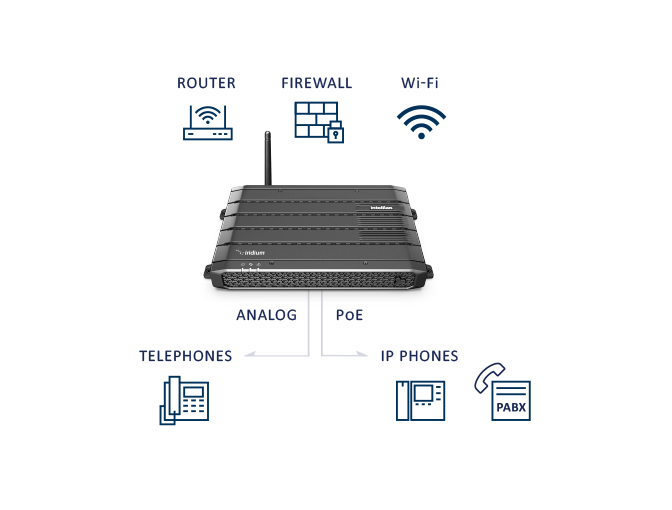

- Built-in Router & Wi-Fi supporting Multiple Users of the Terminal
- Built-in Firewall for Cyber Secure Connections
Product Description

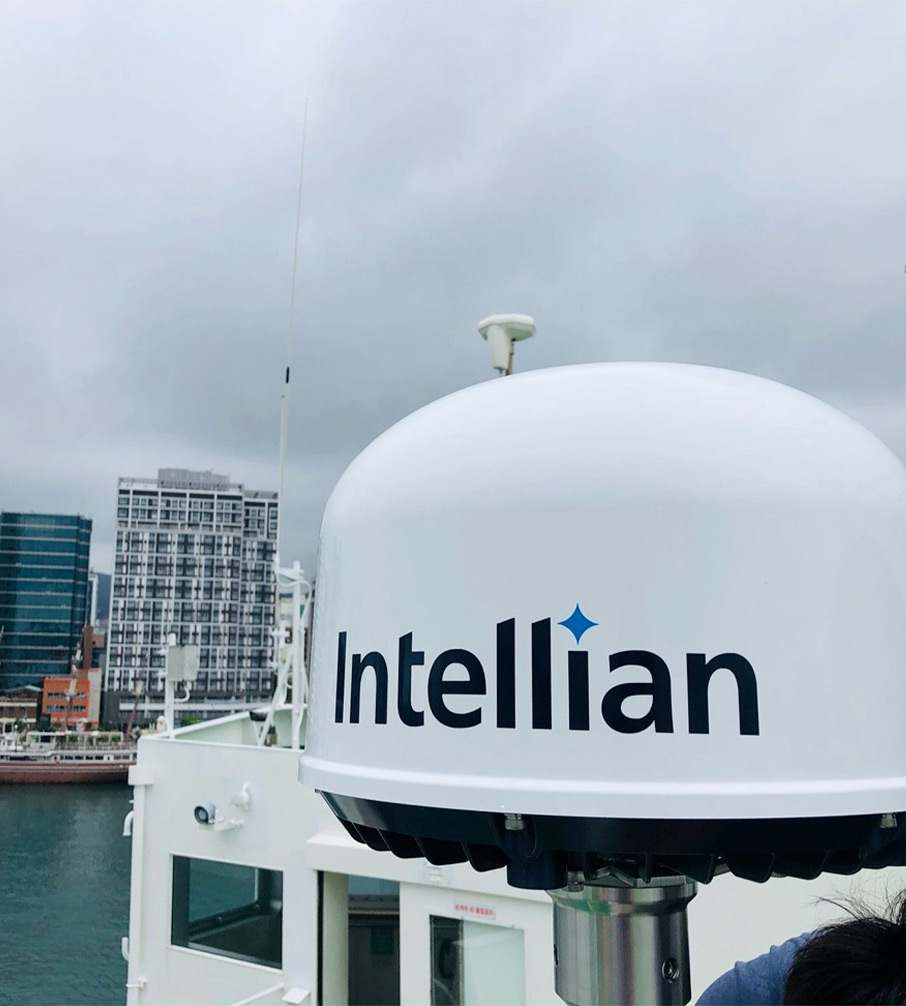

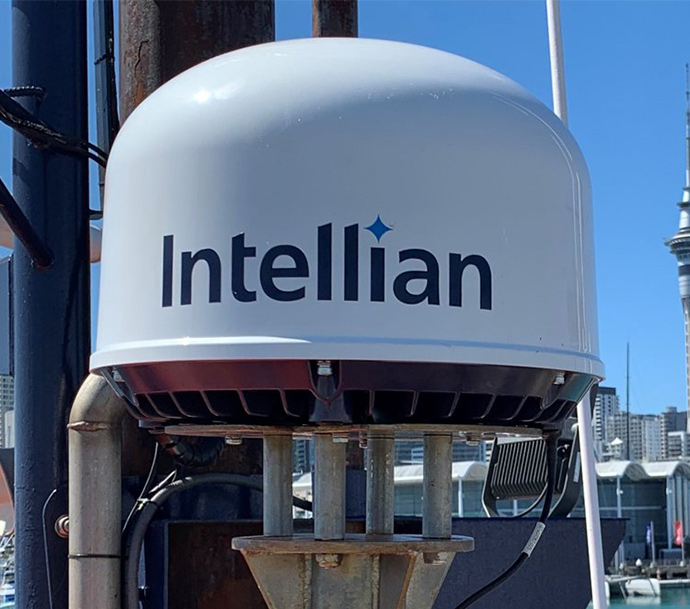

The Intellian C700 Maritime Satellite Terminal enables a variety of applications including safety, bridge and crew welfare communications, connected ship IoT capabilities like engine monitoring and remote diagnostics, as well as situational awareness reports.
Developed for Iridium’s global network and designed to provide the fastest L-band broadband service in the industry, the C700 delivers up to 352 kbps transmission and 704 kbps reception speeds through the Iridium Certus platform. Its 12-element patch technology also ensures seamless connectivity, even in adverse weather or environments.
All Intellian C700 terminals are optimized as VSAT companion devices. The combination of the traditional Intellian’s VSAT Ku-band and Intellian’s new C700 systems will guarantee a seamless connection wherever you are. Easy APIs for M&C, firewall security, and will easily integrate as part of a VSAT out-of-band management solution.

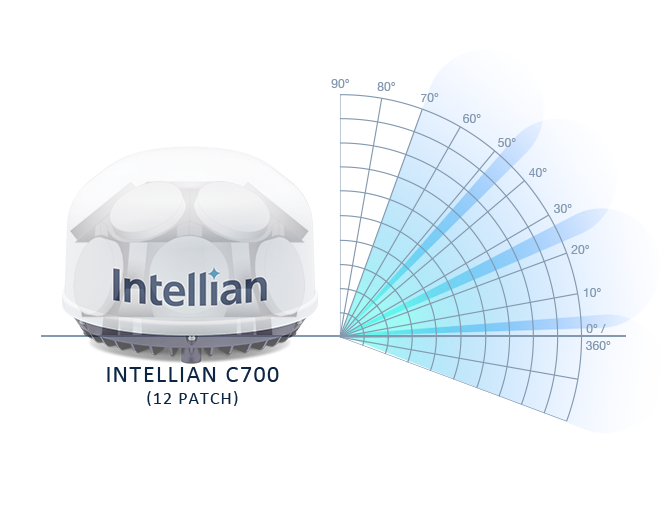

The 12-element patch antenna improves low elevation angle performance. This innovative electronic phased-array antenna guarantees a reliable and high-throughput connection in all conditions. Also, the H2 class high power amplifier enables uplink data speeds of up to 352 kbps as standard.
Features
- Powerful (12) Element Patch Phased-Array Antenna
- H2 Antenna Amplifier for 352 kbps Uplink Service Guarantees the Most Reliable & High Throughput in Rough Seas
- Easy Installation & Simple Configuration
- Built-in Power-over-Ethernet (PoE) for Powering IP Devices like SIP Phones, Cameras, Wireless Access Points, etc.
- Reliable Solid-State Technology
- Built-in Firewall for Cyber Secure Connections
- GMDSS Ready
- Three (3) High Quality Voice Lines with Soft PBX Function
- Supports Up to (16) SIP Phones & (2) Analog Phones
- 4-Port Ethernet (LAN) PoE & WAN
- Built-in WAN for Least-cost Routing of Data Traffic Via 3G/LTE
- Built-in Router & Wi-Fi supporting Multiple Users of the Terminal
Benefits
- Lower Total Cost of Ownership
- Rack Mount Version Available
- Solid-State Reliability
- Designed for a 10-Year Minimum Operational Lifetime
- 3-Year Global Warranty – Parts & Labor
Technical Specifications & Features
Physical Specifications
| ADU Dimensions | 370 x 270 mm (14.5 x 11.0 in) |
| ADU Weight | 14.3 lb (6.5 kg) |
| BDU Dimensions | 280 x 183.5 x 41 mm (11 x 7.21 x 1.45 in) |
| BDU Weight | 4.4 lb (2 kg) (Stand-alone Type) |
Power
| Power (Max) | 120 W |
| DC Input (Max) | 10 – 32 V DC |
Environmental Specifications
| Operating Temperature Range | ADU:-25℃ ~ + 55℃, BDU: -15℃ ~ + 55℃ |
| More Than 95% | |
| Water Ingress | ADU: IP56, BDU: IP31 |
| Shock | IEC60068-2-27 (Operation) IEC60721-3-6 Class 6M3 (Survival) |
| Vibration | IEC60945 (Operation), IEC60721-3-6 Class 6M3 (Survival) |
Connectivity
- Satellite Network: Iridium
- Voice: (3) Simultaneous HD Voice Lines
- IP Data (Background): Uplink: Up To 352 Kbps, Downlink: Up To 704 Kbps
- IP Streaming Uplink/Downlink: Up To 256 Kbps
- Short Burst Data: Yes
