MissionLINK® 200

Manufacturer : Thales Avionics, Inc.

Model : ML 200

  • Delivers Critical Communications, Anywhere in the World, Even on the Move
  • Delivers up to 176 Kbps Transmit/176 Kbps Receive
  • Rated for Water, Vibration, and Shock Resistance
  • Optimized for Satellite Backhaul with Built-In Preferred Routing Switch
  • Low-Gain Omni-Directional Antenna with No Moving Parts
Iridium Certus MissionLINK by Thales on white background

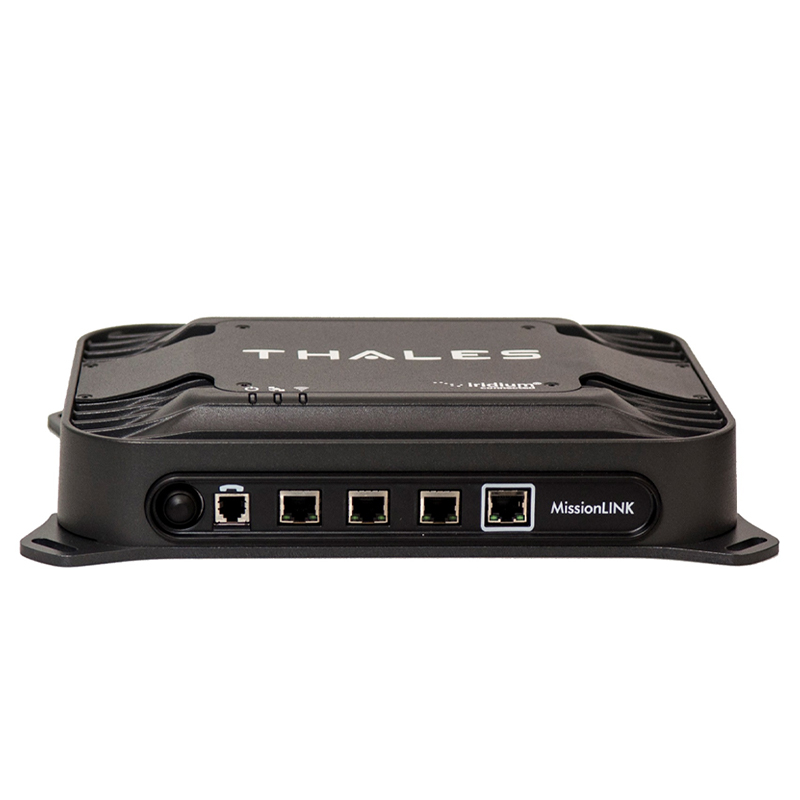

Terminal BDU for Iridium Certus MissionLINK by Thales
Iridium Certus MissionLINK by Thales on white background
Terminal BDU for Iridium Certus MissionLINK by Thales

MissionLINK® 200


Manufacturer : Thales Avionics, Inc.

Model : ML 200

  • Delivers Critical Communications, Anywhere in the World, Even on the Move
  • Delivers up to 176 Kbps Transmit/176 Kbps Receive
  • Rated for Water, Vibration, and Shock Resistance
  • Optimized for Satellite Backhaul with Built-In Preferred Routing Switch
  • Low-Gain Omni-Directional Antenna with No Moving Parts

Exclusive Iridium Certus® 200 Connectivity

Thales MissionLINK 200 provides global terrestrial communications coverage, anywhere in the world. Unaffected by weather or landscape, it is the solution to depend on for essential communications wherever your mission takes you. Whether you operate as part of a deployed force or a single individual, this solution is designed to meet your unique challenges through a small, simple, adaptable and robust design. MissionLINK 200 operates using Iridium Certus 200 broadband services over Iridium's network of 66 satellites that cover the entire planet. The solution utilizes this robust network service to provide highly reliable, mobile and essential voice, text and web communications for fixed sites and users on-the-move.

Same Coverage. Smaller Antenna.

MissionLINK 200 provides truly global communications on any continent. It comes with an intuitive, user-friendly interface and can be quickly integrated into existing vehicles or new fleets. It also includes built-in upgradeability to extend your investment and ensure peak speed and performance.

  • Extendable Network via Radio Gateway
  • Satellite to Land Mobile Radio (LMR) extendable network through a unique radio gateway
  • Easy Integration
  • Easily integrates with terrestrial cellular with built-in preferred routing switch
  • Simultaneous Functionality
  • Voice and data enabled delivering up to three (3) dedicated voice channels
  • Antenna
  • Low gain omni-directional antenna with no moving parts to enable truly global connectivity
  • Range of Communications Applications
  • Safety services, tracking and location services, out-of-band management, operational reporting, telemedicine, and data transfers
  • Wi-Fi Access Point
  • Embedded 802.11b/g Wi-Fi Access Point
  • User-Friendly Interface
  • With application-enabled functionality for Android and iOS devices
  • Emergency Alerts
  • Real-time emergency alert and distress notifications

Product Specifications and Certifications

Technical Specifications

Antenna (ADU)
Mechanical
Dimensions ( H x ø ) 139.7mm x 127mm
Weight 680 g
Iridium Embedded Technology Iridium Certus 9810 Module
Antenna (ADU)
Environmental
Operating Temperature Range -40 to +55 ℃
Durability Standard MIL-STD-810G w/Change 1
Ingress Protection IP67
Vibration Standard MIL-STD-810G w/Change 1, Test Method 514.7, Category 4
MissionLINK® 200
Antenna
Antenna Design Low Gain Omni-Directional
MissionLINK® 200
Battery
Battery Life, Talk Time 200 hr
Charge Time 2 hr
Antenna (ADU)
Power
Power Supply Directly Powered by Terminal
Input Voltage Range 24 VDC
MissionLINK® 200
Network
Additional Networks Easily Integrates with Terrestrial Cellular or VSAT with Built-in Preferred Routing Switch; Global Navigation Satellite System: GPS, GLONASS
Telephony Up to Three (3) Concurrent Voice Lines
Location Based Services Yes
MissionLINK® 200
Broadband
Data Speed Uplink (UL) 176 Kbps
Data Speed Downlink (DL) 176 Kbps
MissionLINK® 200
Wi-Fi
Wi-Fi Enabled Yes
Connectivity Range 50 m
Interface Connects to App Via Bluetooth LE (One Connected User at a Time)
MissionLINK® 200
User Experience
Screen LEDs for: Messages, SOS, Check-in and Power

Certifications

  • FCC
  • CE
  • ISED
  • ITU
  • RCM
  • GITECKI
  • REACH ROHS
  • EC60945 (IEC 60945)

MissionLINK® 200

MissionLINK 200 provides truly global communications on any continent. It comes with an intuitive, user-friendly interface and can be quickly integrated into existing vehicles or new fleets. It also includes built-in upgradeability to extend your investment and ensure peak speed and performance.
