MissionLINK® 700

Manufacturer : Thales Avionics, Inc.

Model : ML 700

  • Delivers Critical Communications, Anywhere in the World, Even on the Move
  • Delivers Up to 352 Kbps Transmit/704 Kbps Receive
  • Rated for Water, Vibration, and Shock Resistance
  • Optimized for Satellite Backhaul with Built-In Preferred Routing Switch
  • High-Gain, Electronic Phased Array Antenna with No Moving Parts
MissionLINK 700 by Thales with above deck and below deck units on white background

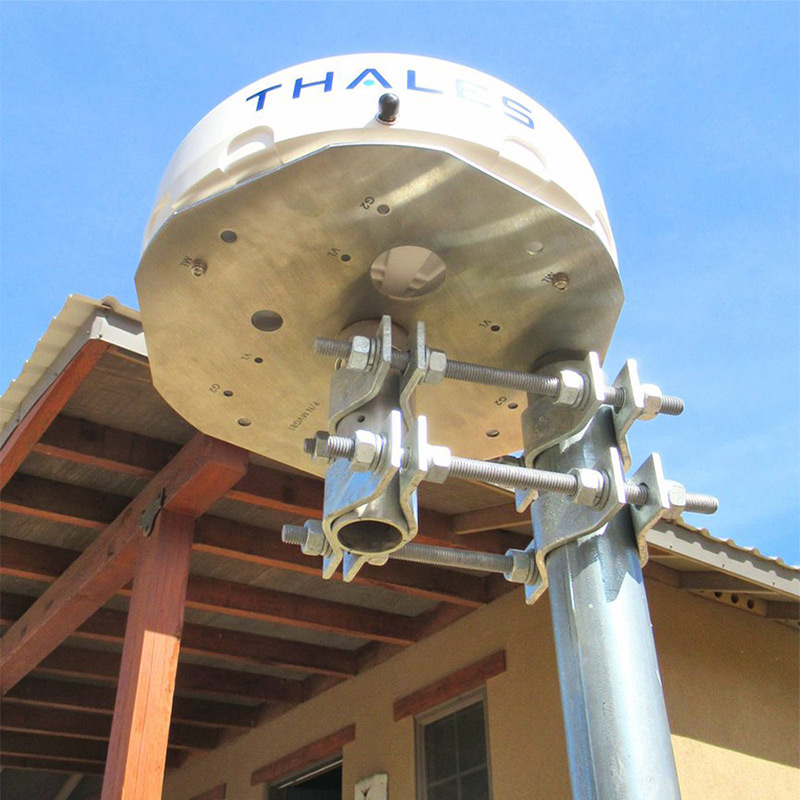

MissionLINK 700 installed angle from below

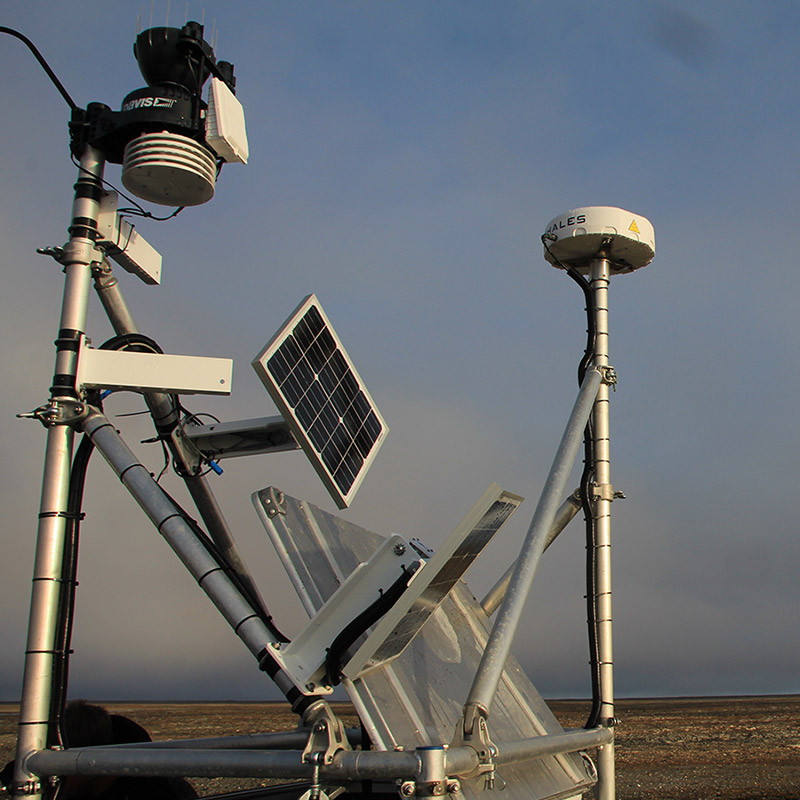

MissionLINK 700 in use for remote arctic research operations

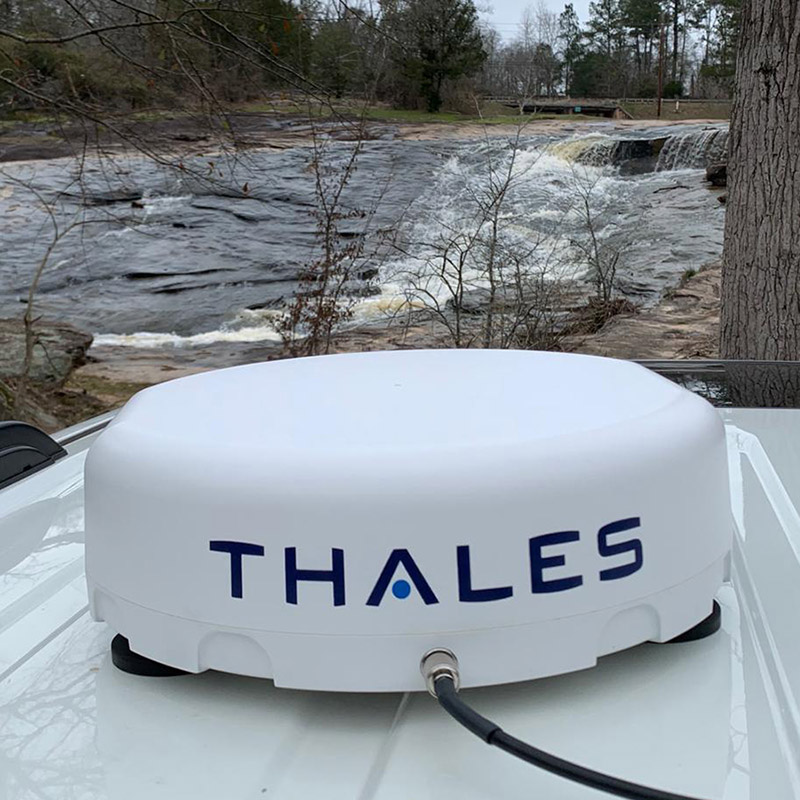

MissionLINK 700 deployed for comms-on-the-move
MissionLINK 700 by Thales with above deck and below deck units on white background
MissionLINK 700 installed angle from below
MissionLINK 700 in use for remote arctic research operations
MissionLINK 700 deployed for comms-on-the-move

MissionLINK® 700


Manufacturer : Thales Avionics, Inc.

Model : ML 700

  • Delivers Critical Communications, Anywhere in the World, Even on the Move
  • Delivers Up to 352 Kbps Transmit/704 Kbps Receive
  • Rated for Water, Vibration, and Shock Resistance
  • Optimized for Satellite Backhaul with Built-In Preferred Routing Switch
  • High-Gain, Electronic Phased Array Antenna with No Moving Parts
MissionLINK 700 deployed for remote operations

Robust Satcoms
on Every Continent

Thales MissionLINK 700 provides global terrestrial communications coverage, anywhere in the world. Unaffected by weather or landscape, it is the solution to depend on for essential communications wherever your mission takes you. Whether you operate as part of a deployed force or a single individual, this solution is designed to meet your unique challenges through a simple, adaptable and robust design. MissionLINK 700 operates using Iridium Certus® 700 broadband services over Iridium's network of 66 satellites that cover the entire planet. The solution utilizes this robust network service to provide highly reliable, mobile and essential voice, text and web communications for fixed sites and users on-the-move.

Key Features

MissionLINK 700 provides truly global communications on any continent. It comes with an intuitive, user-friendly interface and can be quickly integrated into existing vehicles or new fleets. It also includes built-in upgradeability to extend your investment and ensure peak speed and performance.

  • Extendable Network via Radio Gateway
  • Satellite to Land Mobile Radio (LMR) extendable network through a unique radio gateway
  • Easy Integration
  • Easily integrates with terrestrial cellular with built-in preferred routing switch
  • Simultaneous Functionality
  • Voice and data enabled delivering up to three (3) dedicated voice channels
  • User-Friendly Interface
  • With application-enabled functionality for Android and iOS devices
  • Range of Communications Applications
  • Safety services, tracking and location services, out-of-band management, operational reporting, telemedicine, and data transfers
  • Emergency Alerts
  • Real-time emergency alert and distress notifications
MissionLINK 700 mounted

Related Case Studies

Iridium Certus® Keeps Remote Scientific Facility Connected

An autonomous field station connected by Iridium Certus® equipment to regularly transmit data to scientists around the world.

Related Case Studies

An autonomous field station connected by Iridium Certus® equipment to regularly transmit data to scientists around the world.

Product Specifications and Certifications

Technical Specifications

Mechanical
Field Label Field Value
Antenna (ADU)
Dimensions ( ø x H ) 104.1 mm x 368.3 mm
Weight 2810 g
Iridium Embedded Technology Iridium Certus 9810 Module
Environmental
Field Label Field Value
Antenna (ADU)
Operating Temperature Range -40 to +55 ℃
Durability Standard MIL-STD-810G
Ingress Protection IP66
Vibration Standard MIL-STD-810G, Test Method 514.6, Procedure 1, Category 20, Annex D MIL-STD-810G, Test Method 516.6, Procedure IV
Antenna
Field Label Field Value
Antenna Design High-Gain, Electronic Phased Array Antenna with No Moving Parts
Power
Field Label Field Value
Antenna (ADU)
Power Supply Directly Powered by Terminal
Input Voltage Range 24 VDC
Network
Field Label Field Value
Additional Networks Easily Integrates with Terrestrial Cellular or VSAT with Built-in Preferred Routing Switch
Telephony Up to Three (3) Concurrent Voice Lines
Streaming Data 256 Kbps Streaming Capable
Location Based Services Yes
Broadband
Field Label Field Value
Data Speed Uplink (UL) 352 Kbps
Data Speed Downlink (DL) 704 Kbps
Wi-Fi
Field Label Field Value
Wi-Fi Enabled Yes

Certifications

  • FCC
  • CE
  • ISED
  • ITU
  • RCM
  • GITECKI
  • REACH
  • ROHS
  • Iridium Approved
  • EC60945 (IEC 60945)
