VesseLINK 200

Manufacturer : Thales Avionics, Inc.

Model : VL 200

  • Robust, Light-Weight Communications for at Sea Operations
  • Delivers up to 176 Kbps Transmit/176 Kbps Receive
  • Multiple User Capability, Up to (12) Connected Devices
  • Optimized for VSAT Companion Use with Built-In Preferred Routing Switch
  • Low Gain Omni-Directional Antenna with No Moving Parts
VesseLINK 200 by Thales product photo

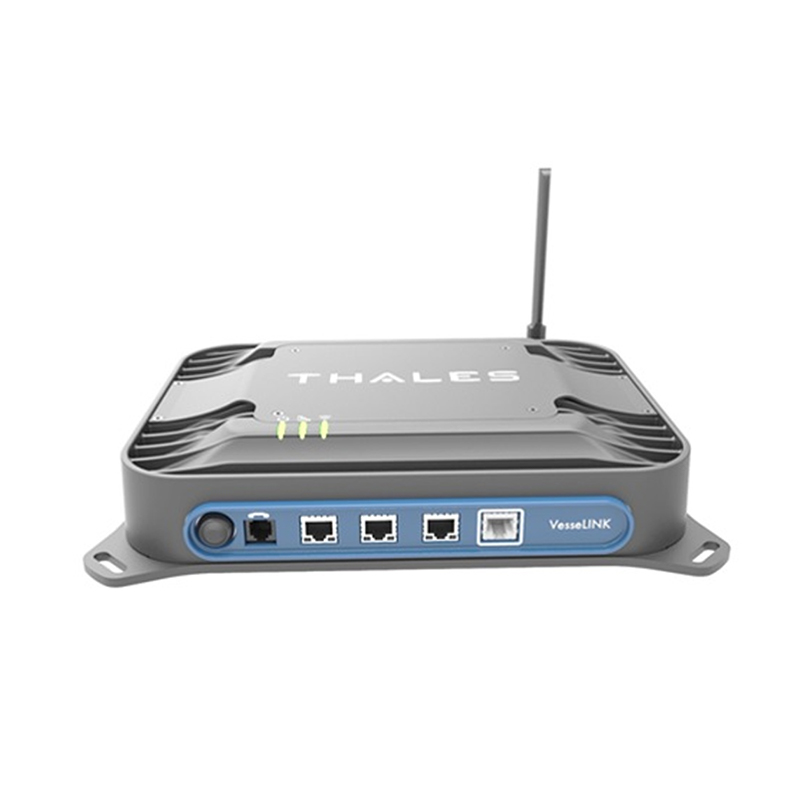

VesseLINK 200 by Thales BDU product photo

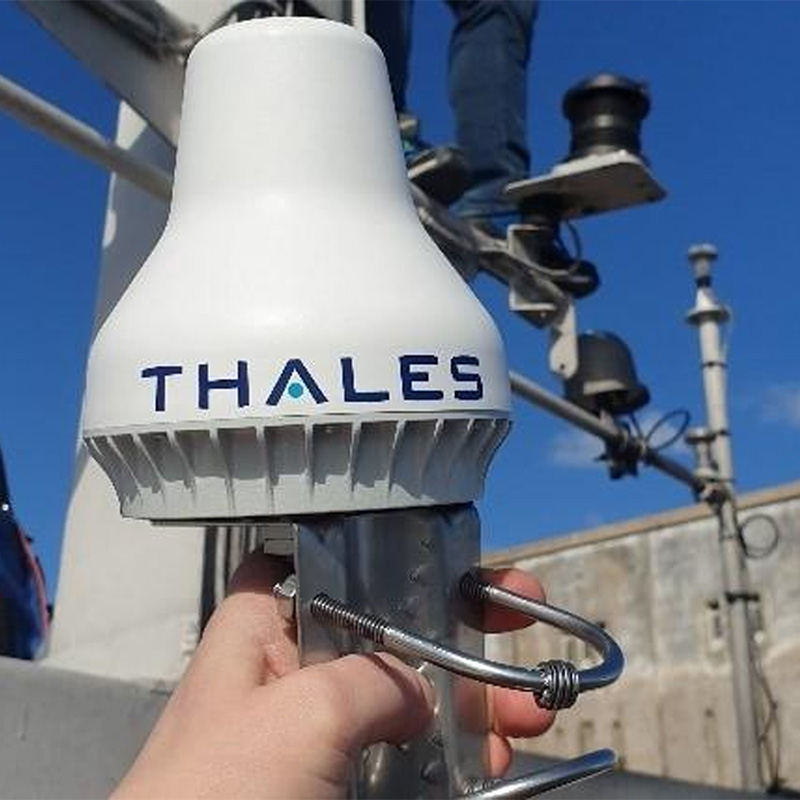

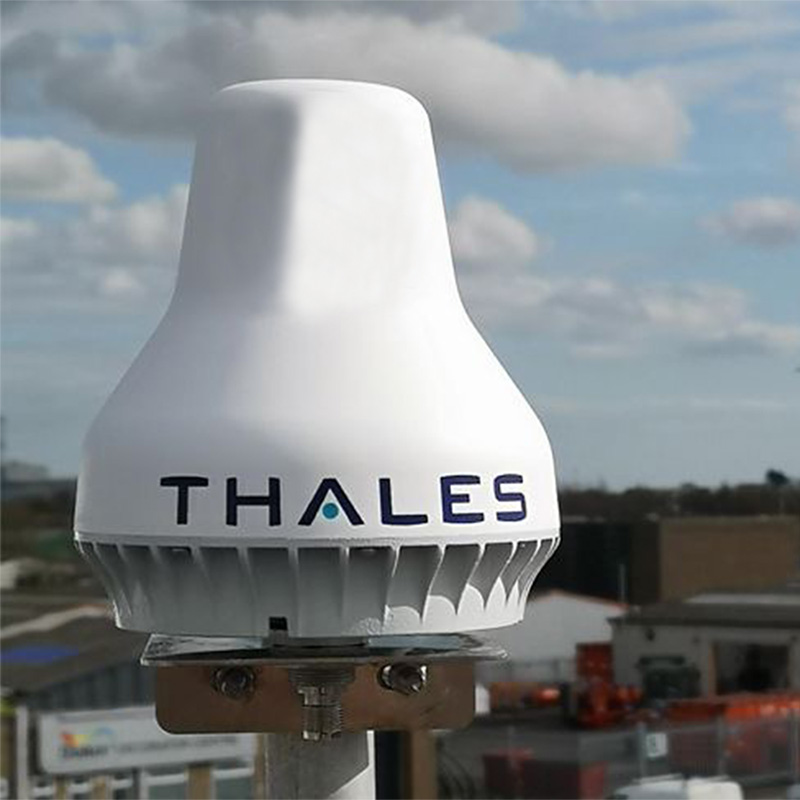

VesseLINK 200 by Thales installed on vessel at port
VesseLINK 200 by Thales installed on vessel at port
VesseLINK 200 by Thales product photo
VesseLINK 200 by Thales BDU product photo
VesseLINK 200 by Thales installed on vessel at port
VesseLINK 200 by Thales installed on vessel at port

VesseLINK 200


Manufacturer : Thales Avionics, Inc.

Model : VL 200

  • Robust, Light-Weight Communications for at Sea Operations
  • Delivers up to 176 Kbps Transmit/176 Kbps Receive
  • Multiple User Capability, Up to (12) Connected Devices
  • Optimized for VSAT Companion Use with Built-In Preferred Routing Switch
  • Low Gain Omni-Directional Antenna with No Moving Parts

Exclusive Iridium Certus® 200 Connectivity

Thales VesseLINK provides truly global satellite coverage for maritime communications. With uninterrupted coverage from pole to pole, it is the solution to depend on for essential communications. Suitable for ships or fleets of any size, VesseLINK 200 easily integrates with existing equipment to fully digitize your vessel. VesseLINK 200 operates using Iridium Certus 200 broadband services over Iridium's network of 66 satellites that cover the entire planet, including deep oceans and poles, to provide highly reliable, mobile and essential voice, text, and web communications for captain and crew. VesseLINK comes with an intuitive, user-friendly interface and can be quickly integrated into existing vessels or new fleets. It also includes built-in upgradeability to future-proof your investment and ensures peak speed and performance.

Same Coverage. Smaller Antenna.

Thales VesseLINK 200 provides global satellite coverage for maritime communications. VesseLINK comes with an intuitive, user-friendly interface and can be quickly integrated into existing vessels or new fleets. It also includes built-in upgradeability to ensures peak speed and performance.

  • Antenna
  • Low gain omni-directional antenna with no moving parts to enable truly global connectivity
  • Simultaneous Functionality
  • Voice and data enabled delivering up to three (3) dedicated voice channels
  • User-Friendly Interface
  • With application-enabled functionality for Android and iOS devices
  • Range of Communications Applications
  • Location Tracking, Enhanced Reporting, Service Logging, Mobile Connectivity, System/Cargo Monitoring & Other Operational Requirements
  • Wi-Fi Access Point
  • Embedded 802.11b/g Wi-Fi Access Point
  • Maritime Safety
  • GMDSS-capable; will support Iridium GMDSS over Iridium Certus when available

Product Specifications and Certifications

Technical Specifications

Antenna (ADU)
Mechanical
Dimensions ( H x ø ) 170.2mm x 127mm
Weight 680 g
Iridium Embedded Technology Iridium Certus 9810 Module
Antenna (ADU)
Environmental
Operating Temperature Range -40 to +55 ℃
Durability Standard MIL-STD-810G w/Change 1
Ingress Protection IP67
Vibration Standard MIL-STD-810G w/Change 1, Test Method 514.7, Category 4
VesseLINK 200
Antenna
Antenna Design Low Gain Omni-Directional
VesseLINK 200
GPS
Accuracy, Positional 2.5 m
Antenna (ADU)
Power
Power Supply Directly Powered by Terminal
Input Voltage Range 24 VDC
VesseLINK 200
Network
Additional Networks Easily Integrates with VSAT with Built-in Preferred Routing Switch; Global Navigation Satellite System: GPS, GLONASS
Telephony Up to Three (3) Concurrent Voice Lines
Location Based Services Location Tracking, Internal GPS Chip, Location-Aware
VesseLINK 200
Broadband
Data Speed Uplink (UL) 176 Kbps
Data Speed Downlink (DL) 176 Kbps
VesseLINK 200
Wi-Fi
Wi-Fi Enabled Yes
Connectivity Range 50 m
Interface Connects to App Via Bluetooth LE (One Connected User at a Time)
VesseLINK 200
User Experience
Screen LEDs for: Messages, SOS, Check-in and Power

Certifications

  • FCC
  • CE
  • ISED
  • ITU
  • RCM
  • GITECKI
  • REACH ROHS
  • EC60945 (IEC 60945)
  • Maritime Navigation & Radio Communication Equipment (EMC) Emissions & Immunity Tested

VesseLINK 200

Thales VesseLINK 200 provides global satellite coverage for maritime communications. VesseLINK comes with an intuitive, user-friendly interface and can be quickly integrated into existing vessels or new fleets. It also includes built-in upgradeability to ensures peak speed and performance.
