DLS-100 – Data Link & GPS System

Manufacturer : SKYTRAC Systems Ltd.

Model : DLS-100

  • Over-the-Horizon (OTH), Beyond Line-of-Sight (BLOS), Bi-Directional Data Transfer
  • Real-Time Aircraft Command and Control (C2)
  • Flight Data Acquisition & Real-Time Flight Data Monitoring (FDM)
  • UAS and Payload Health Monitoring
  • Compatible with Commercial and DoD SIM Cards and Gateways

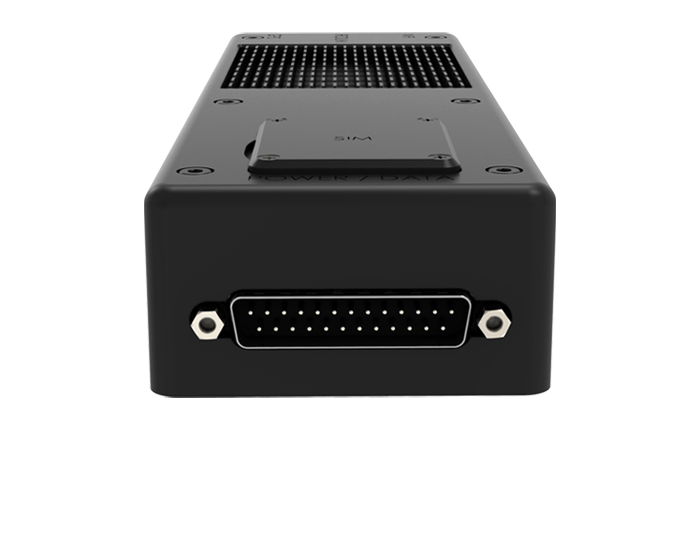

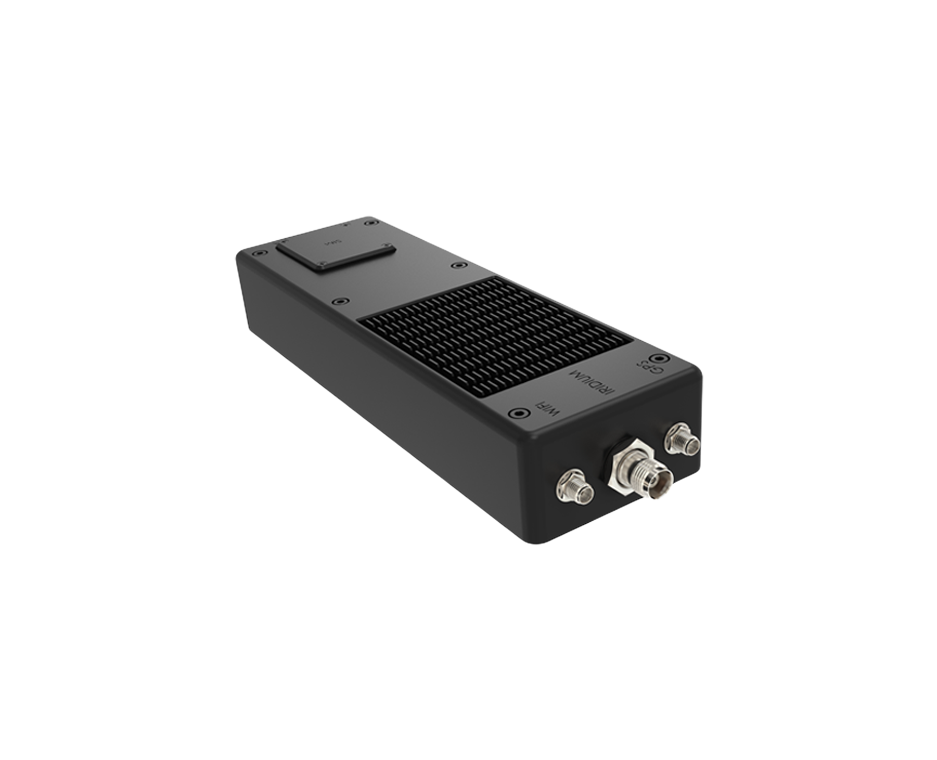

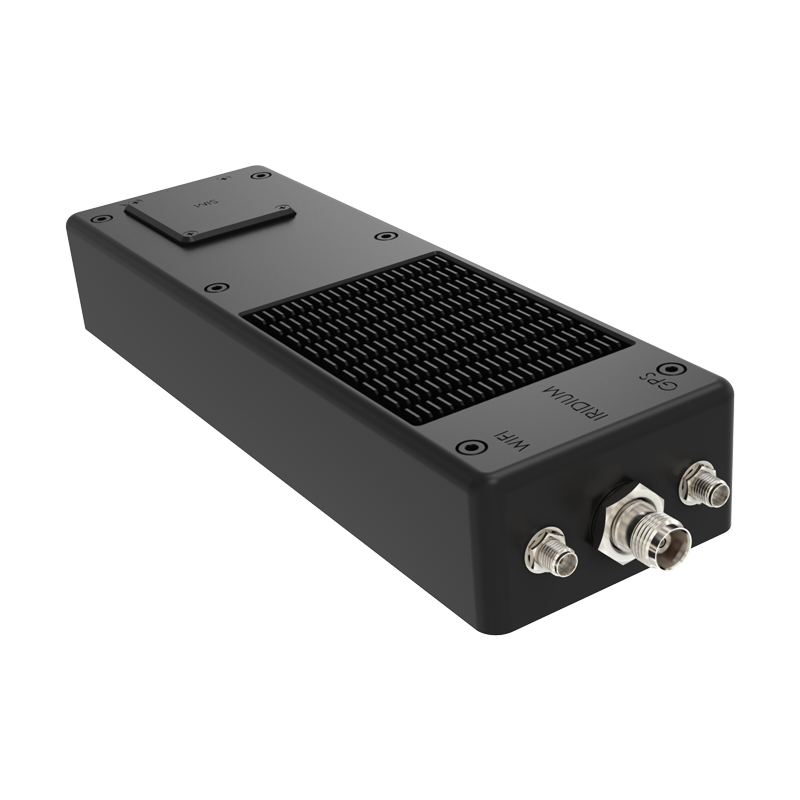

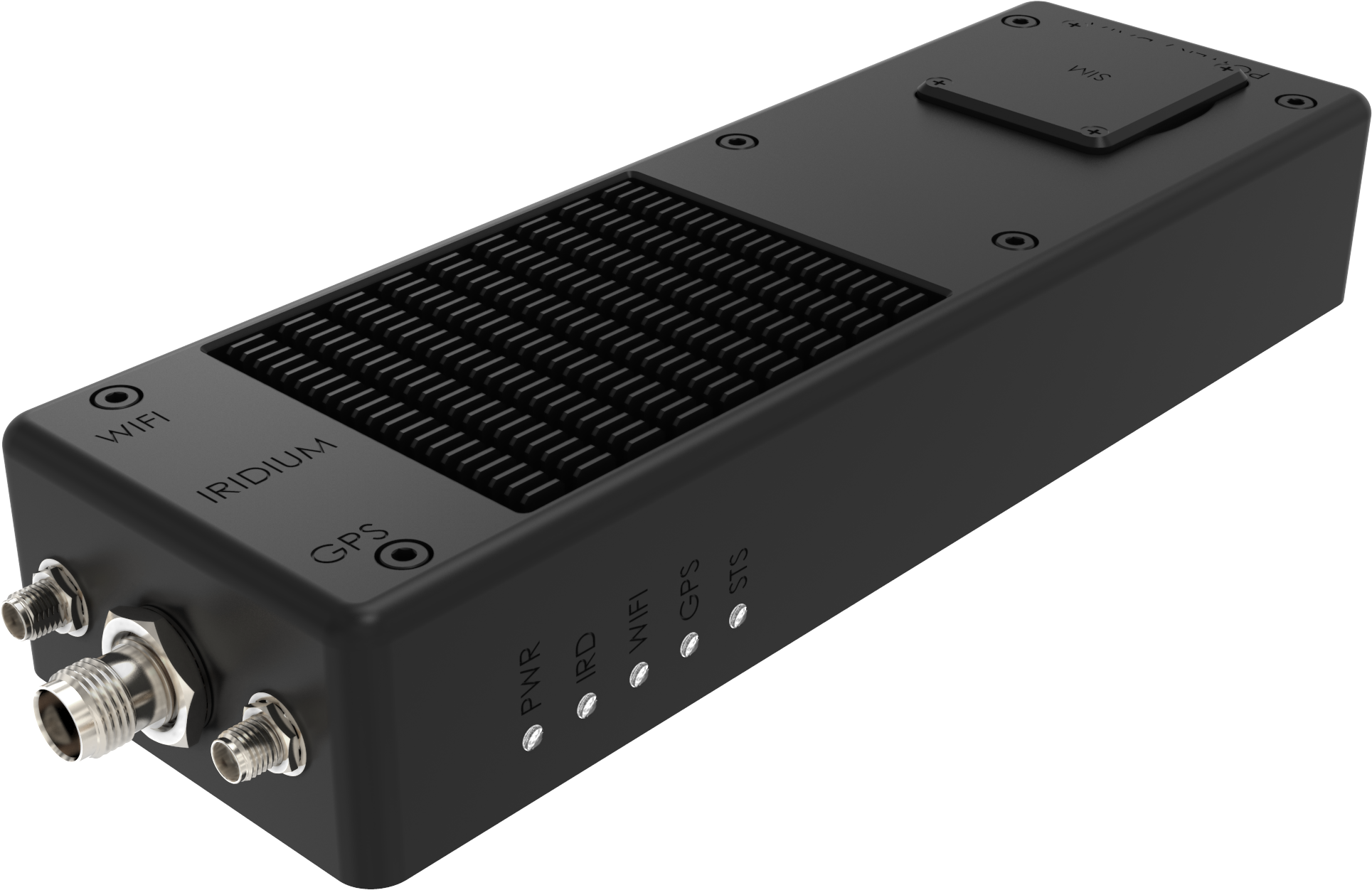

Skytrac DLS-100 Product Image
Skytrac DLS-100 Product Image
Skytrac DLS-100 Product Image
Skytrac DLS-100 Product Image

DLS-100 – Data Link & GPS System


Manufacturer : SKYTRAC Systems Ltd.

Model : DLS-100

  • Over-the-Horizon (OTH), Beyond Line-of-Sight (BLOS), Bi-Directional Data Transfer
  • Real-Time Aircraft Command and Control (C2)
  • Flight Data Acquisition & Real-Time Flight Data Monitoring (FDM)
  • UAS and Payload Health Monitoring
  • Compatible with Commercial and DoD SIM Cards and Gateways

Midband Data Link
and GPS System

SKYTRAC’s DLS-100 is an Iridium Certus® midband transceiver enabling real-time command and control, telemetry streaming, and photo transfer from unmanned aviation systems.

The ruggedized and IP67 compliant modem enables 22 Kbps uplink and 88 Kbps downlink speeds. Designed for use with unmanned aircraft systems (UAS), the cost-effective Iridium Certus modem allows for pole-to-pole connectivity around the globe with 99.9% reliability and stunningly low latency.

The modem is compatible with commercial and DoD SIM cards and also features remote management functionality through web or software API as needed.

DLS-100 Features

The cutting-edge DLS-100 data link transceiver enables real-time command and control, telemetry streaming, real-time flight data (including payload health monitoring), imagery, data transfer and photo transfer capabilities from unmanned aircraft systems (UAS).

  • Fast, Low-Maintenance Installation
  • Five minutes from out-of-the-box to on-air. A Data Adapter is included in the Install Kit to breakout the DB-25 Connector (into RJ45 Ethernet, DB-9 Serial, and power) for easy setup and maintenance
  • Small Form-Factor
  • General purpose, small form-factor terminal, and antenna enable flexible integration for on-the-move (OTM) and stationary data communications in demanding environments
  • Rugged Hardware
  • Anodized aluminum chassis for performance in demanding physical and EMI environments
  • Thoughtful Design
  • Features DB-25, TNC, and SMA connectors, multiple GPIO pins, an external ON/OFF, IP67-rated enclosure and connectors, and wide voltage input (10 – 32 VDC) supporting diverse platform installations
  • Industry Standard COTS Connectors
  • IP67-rated enclosure and connectors - no military-style, specialized, expensive connectors and cables required
  • Serial Interface
  • RS-232 serial interface enabling “drop-in” replacement for narrowband serial-based equipment utilizing AT commands (coming soon)
  • Supports Popular Applications
  • Provides access to popular end-to-end encrypted messaging and voice apps (e.g., Signal and WhatsApp) for protected and secure communications and Command and Control (C2)
  • Web-Based Management
  • Intuitive web browser-based management GUI is compatible with Chrome, Firefox, Edge, Internet Explorer, and Safari on multiple operating systems (Windows, Linux, iOS, and Android)
  • Interface Modes
  • Software API for customized integration and control available and alternate AT-Command style interface mode enables fast integration into systems with legacy serial-based equipment (coming soon)
  • Individual User Profiles
  • Separate Admin and User profiles with unique usernames/passwords to support security requirements

Product Specifications and Certifications

Technical Specifications

Mechanical
Field Label Field Value
Dimensions ( L x W ) 221.0 x 68.6 mm
Dimensions ( ø x H ) 38.1 mm
Weight 742.8 g
Iridium Embedded Technology Iridium Certus 9770 Module
Environmental
Field Label Field Value
Operating Temperature Range -20 to +50 ℃
Durability Standard IP67
Antenna
Field Label Field Value
Type All Options: Passive, Omni-Directional, Helical
Power
Field Label Field Value
Input Voltage Range 10 - 32 VDC
Broadband
Field Label Field Value
Data Speed Uplink (UL) 22 Kbps
Data Speed Downlink (DL) 88 Kbps
Wi-Fi
Field Label Field Value
Wi-Fi Enabled Yes
Interface GPS/GNSS, DB-25 (custom pin-out for RS-232, Ethernet, and Power), & Multiple Discreet I/O

Certifications

  • ALOA Letter Granted by Iridium
  • Iridium Certified
  • IP67 Compliant
  • FCC Certification (Pending)
  • ISED Certification (Pending)
  • CE Certification (Pending)

DLS-100 – Data Link & GPS System

The cutting-edge DLS-100 data link transceiver enables real-time command and control, telemetry streaming, real-time flight data (including payload health monitoring), imagery, data transfer and photo transfer capabilities from unmanned aircraft systems (UAS).
