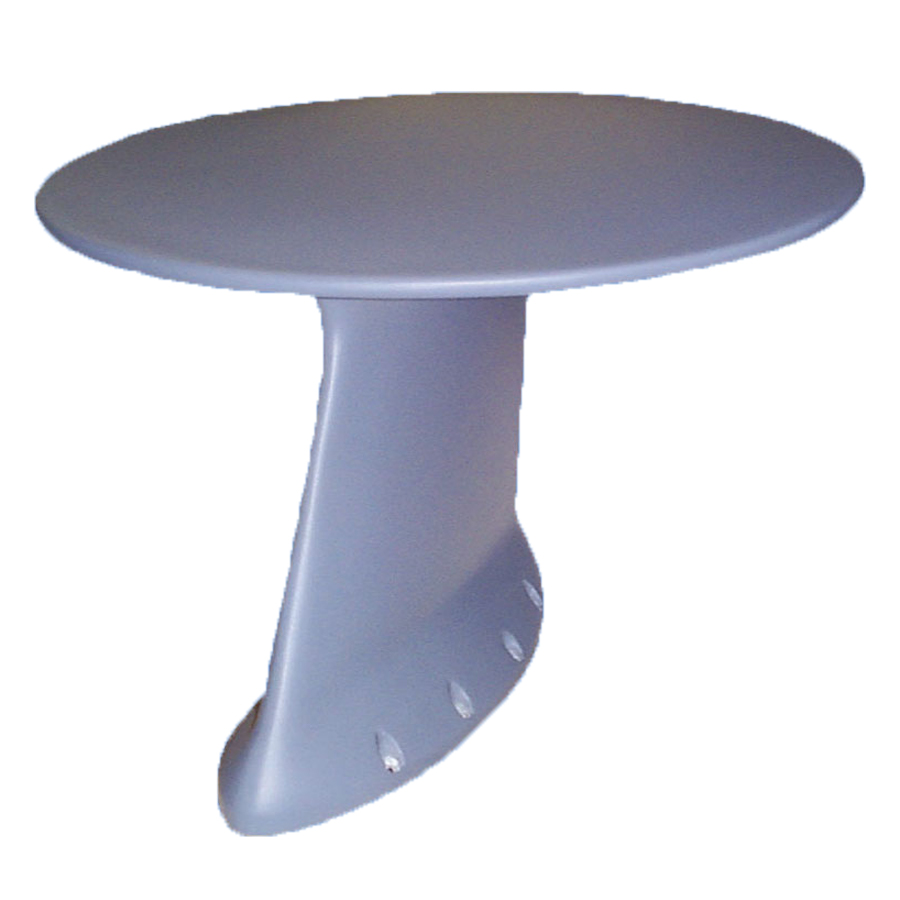

UHF Satcom/Iridium®/GPS S65-8282-186 Antenna

Manufacturer : Sensor Systems Inc.

Model : S65-8282-186

  • Low-Profile Footprint
  • Separate Connectors for Ease of Installation
  • High-Angle RHCP Element
UHF Satcom/Iridium/GPS Antenna S65-8282-186
UHF Satcom/Iridium/GPS Antenna S65-8282-186

UHF Satcom/Iridium®/GPS S65-8282-186 Antenna


Manufacturer : Sensor Systems Inc.

Model : S65-8282-186

  • Low-Profile Footprint
  • Separate Connectors for Ease of Installation
  • High-Angle RHCP Element

Multi-Function.
Easy Installation.

Sensor Systems' UHF Satellite communications antenna provides four functions from a single, low-­profile footprint. The traditional low-angle, vertically­ polarized blade section is used for air-to-air and air-­to-ground UHF communications. The high-angle RHCP element is designed for UHF Satcom. The broad cardioid pattern provides coverage for up to plus or minus 35 degrees from zenith.

A L 1/L2 GPS with a 26.5dB amplifier is housed in the radome along with an Iridium® element for voice and data applications. Each antenna section has separate connectors for ease of installation and to eliminate the requirement for diplexers.

Product Specifications and Certifications

Technical Specifications

Mechanical
Field Label Field Value
Dimensions ( ø x H ) 260.4 mm x 406.4 mm
Weight 4040 g
Environmental
Field Label Field Value
Operating Temperature Range -61 to 85 ℃
Durability Standard MIL-HDBK-5400, MIL-STD-810, MIL-STD-877
Antenna
Field Label Field Value
Type UHF/Satcom/GPS/Iridium Antenna
Polarization RHCP (High Angle UHF/Satcom/GPS/Iridium); Vertical (Low Angle UHF)
RF Interface
Field Label Field Value
Frequency Range 240 to 1626.5 MHz
