Satcom S67-1575-168 Antenna (Iridium®/GPS L1/L2 3.3v)

Manufacturer : Sensor Systems Inc.

Model : S67-1575-168

  • 26.5 dB Amplifier with Special Filtering
  • Enhanced Protection Against Rain, Ice, and Lightning Strikes
  • Hermetically-sealed
  • DC-grounded

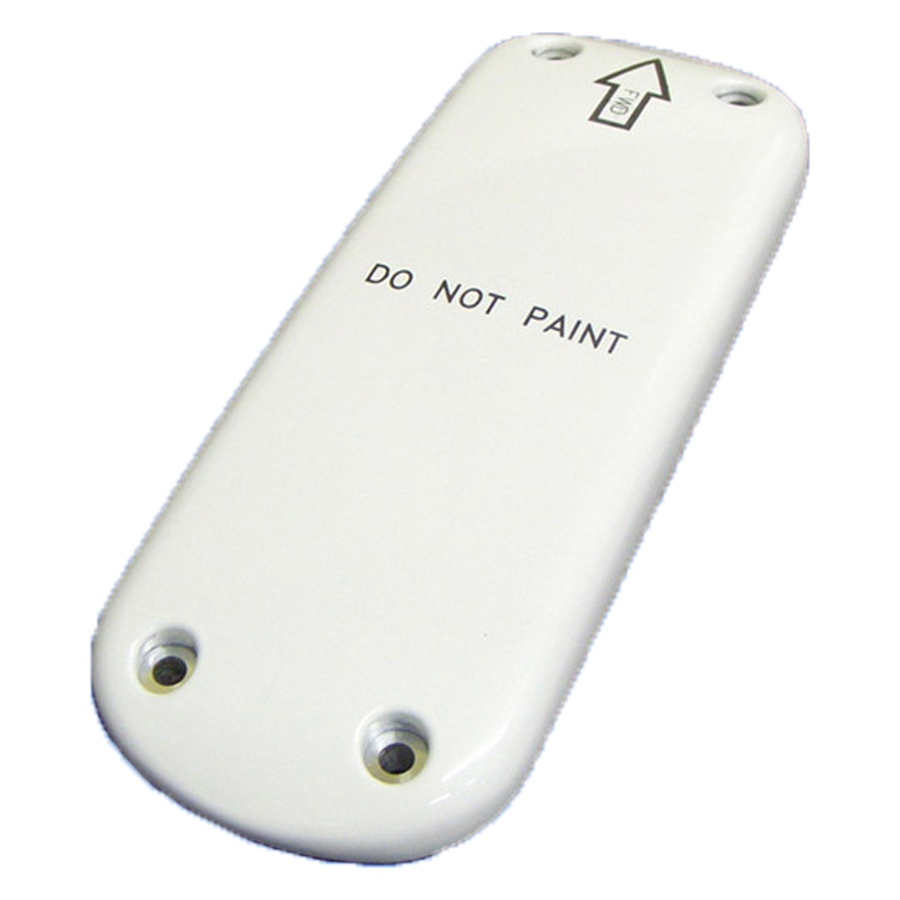

Satcom S67-1575-168 (GPS L1/L2 3.3v) antenna on white background
Satcom S67-1575-168 (GPS L1/L2 3.3v) antenna on white background

Satcom S67-1575-168 Antenna (Iridium®/GPS L1/L2 3.3v)


Manufacturer : Sensor Systems Inc.

Model : S67-1575-168

  • 26.5 dB Amplifier with Special Filtering
  • Enhanced Protection Against Rain, Ice, and Lightning Strikes
  • Hermetically-sealed
  • DC-grounded

Low-Profile Design

Sensor Systems' Satcom S67-1575-168 is a low-profile, dual-element Iridium® and GPS L1/L2 antenna designed for military applications with low voltage requirements such as UAVs and DAGR/MAGR receivers. The GPS section features a 26.5 dB amplifier with special filtering and an internal voltage regulator which accepts 3.3 to 5 volts for use with DAGR and MAGR receivers. Molded radome provides enhanced protection against rain, ice and lightning strikes. This antenna is hermetically-sealed and DC-grounded.

Product Specifications and Certifications

Technical Specifications

Mechanical
Field Label Field Value
Dimensions ( L x W x H ) 199.6 x 76.2 x 23.37 mm
Weight 453.6 g
Environmental
Field Label Field Value
Operating Temperature Range -54 to +110 ℃
Durability Standard TSO-C129, MIL-STD-810, MIL-STD-877, MIL-HDBK-5400
Vibration Standard 10 Gs
Antenna
Field Label Field Value
Antenna Design Low-Profile, Dual-Element Iridium and GPS L1/L2
Polarization RHCP
RF Interface
Field Label Field Value
I / O Impedence 50 Ohm
Power
Field Label Field Value
Input Voltage Range +3.3 to +5.0 VDC @ 65 mA Max
