Satcom S67-1575-163 Antenna (Iridium®/GPS)

Manufacturer : Sensor Systems Inc.

Model : S67-1575-163

  • Low-Profile Dual-Band Antenna (Iridium®/GPS)
  • Hermetically-Sealed Design
  • Molded Radome Protects Against Rain, Ice, and Lightning Strikes

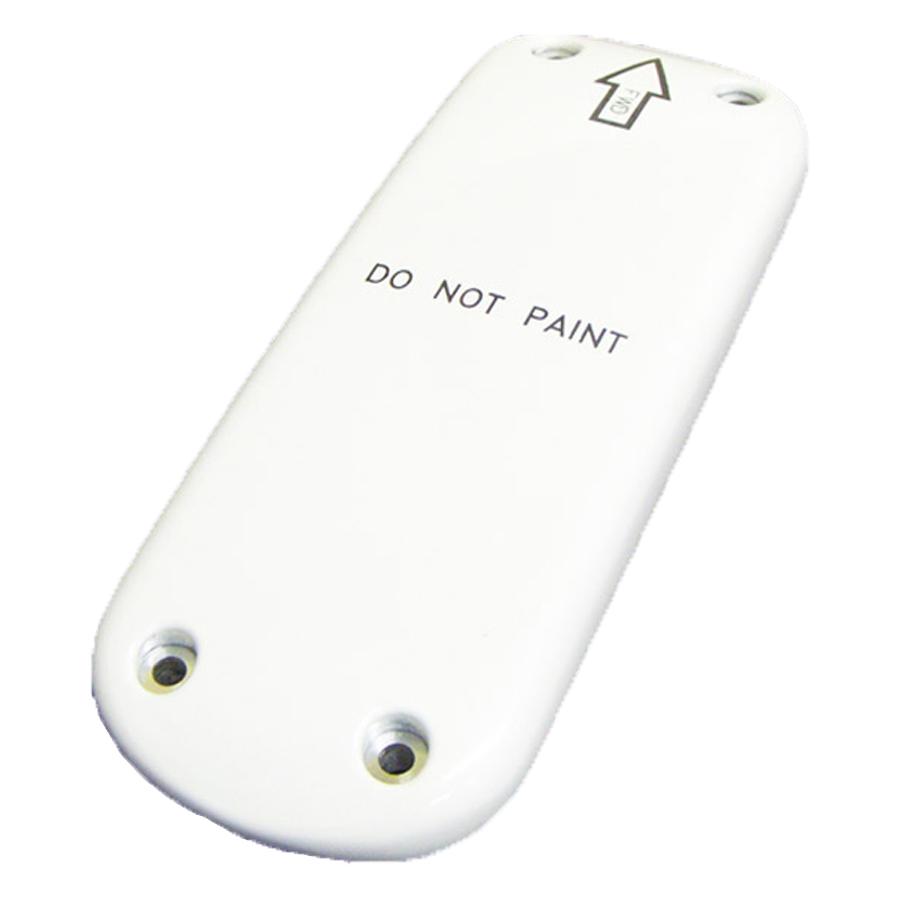

Iridium/GPS Antenna S67-1575-163 on white background
Iridium/GPS Antenna S67-1575-163 on white background

Satcom S67-1575-163 Antenna (Iridium®/GPS)


Manufacturer : Sensor Systems Inc.

Model : S67-1575-163

  • Low-Profile Dual-Band Antenna (Iridium®/GPS)
  • Hermetically-Sealed Design
  • Molded Radome Protects Against Rain, Ice, and Lightning Strikes

Continuous Frequency Band Coverage

Sensor Systems' Satcom S67-1575-163 Antenna is a low-profile, dual-element Iridium/GPS antenna providing continuous Tx/Rx Iridium frequency band coverage from 1610 to 1626.5 MHz. The GPS section features a 33 dB amplifier with special filtering and frequency coverage from 1565 to 1585 MHz, and a molded radome provides enhanced protection against rain, ice and lightning strikes. This antenna is hermetically-sealed and DC-grounded.

Product Specifications and Certifications

Technical Specifications

Mechanical
Field Label Field Value
Dimensions ( L x W x H ) 199.4 x 76.2 x 20.63 mm
Weight 368.5 g
Environmental
Field Label Field Value
Operating Temperature Range -55 to +85 ℃
Durability Standard DO-160, TSO-C129a, MIL-HDBK-5400, MIL-STD-810
Vibration Standard 10 Gs
Antenna
Field Label Field Value
Antenna Design Low-Profile, Dual-band Antenna (Iridium/GPS)
Type GPS L1 Antenna and Iridium Antenna
Polarization RHCP
RF Interface
Field Label Field Value
Frequency Range 1565 to 1626.5 MHz
I / O Impedence 50 Ohm
Power
Field Label Field Value
Input Voltage Range +4 - +24 @ 45 mA
