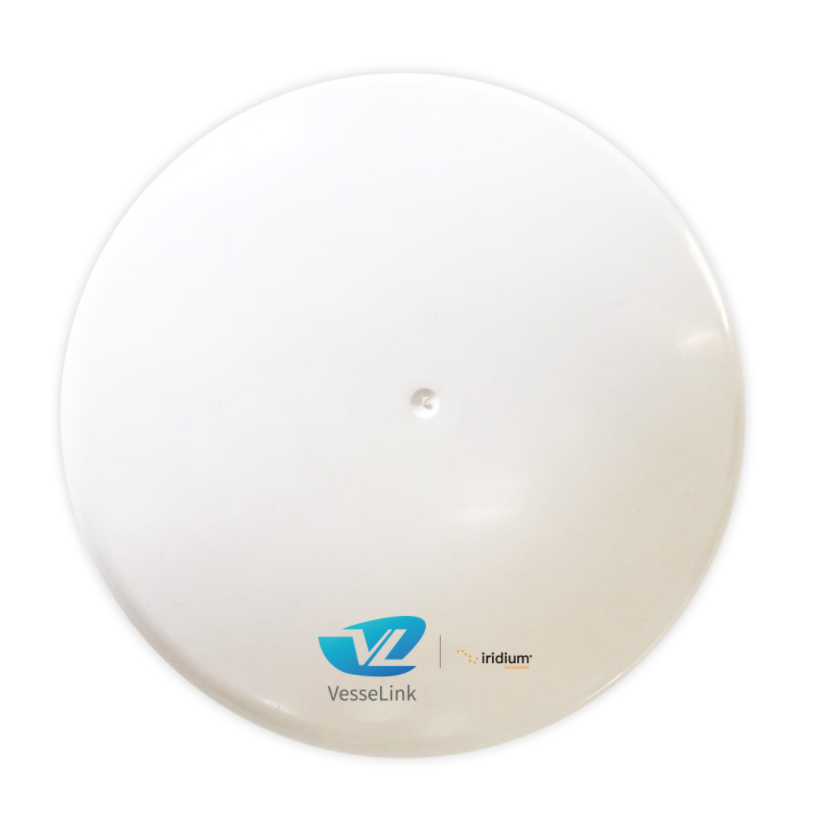

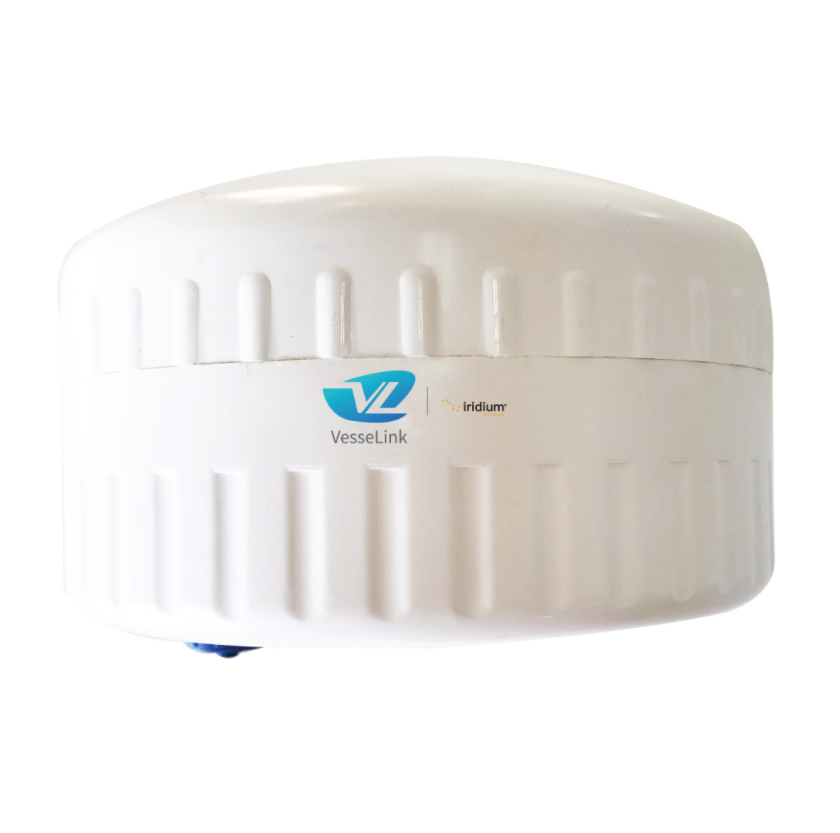

Vesselink VL-200

Overview

Vesselink VL-200 — the Ship Satellite Tracking & Communication System developed by Vesselink Technology Limited, providing a competitive cost–performance solution on maritime location tracking & satellite communication onboard and at sea.

With the built in Iridium® antenna, VL-200 is enabled to guarantee a global wide reliable connection from ship-to-shore via Internet of Things (IoT) technology.

Features

  • Ship location tracking, data transmission with more reliability, instantaneity and full transparency
  • Global coverage of  two-way satellite communications from onboard to onshore, group chat and private chat, even in the most remote locations in the world, powered by Iridium satellite constellation
  • Ship operation management, streamlined work process to simplify onboard reporting procedures, ease onshore administrative management operation



Key Benefits

  • Track your ship without blind spots
  • Greater ship-to-shore information utilization, enable timely response
  • Increase operational management productivity with mobilized application
  • Significant cost reduction on ship-to-shore communication
  • Easy to use, full guidance and support on hardware software implementation



Technical Specifications

Physical Properties
Form Factor 130 mm diameter x 80 mm High
Weight 450g
Environmental Properties
Operating Temperature -40°C to +85°C
Ingress Protection IP67
Power
Input Voltage DC (9-38V)
Power Consumption 200mA Max, Sleep Mode <30mA
Battery Two (2) 4800mAh Lithium Batteries
Antenna
Operating Bands 15.7542 MHz (GPS)

1616-1626.5 MHz (Iridium)

850/900/1800/1900 MHz (GSM/GPRS)

Average Gain > -2dBi
VSWR < 1.5:1
Impedance 50Ω
Polarization RHCP
GPS
Operating Bands L1-1575.42 MHz
Cold Start 29 Seconds
Hot Start 1 Second
Location Accuracy 2.5 m
Communication Protocol
Protocol RS-485
Cable Standard Cable 15 Meters
