IRT-NX SATCOM System

By : Collins Aerospace | Model : IRT-4XX0

  • Safety Services (Two ATS Voice + FANS Data)
  • Segregated Safety/Non-safety Channels
  • Iridium Certus® SATCOM Services – Higher Bandwidth with Lower Costs
  • Scalable System from 22 kbps to 352 kbps (Potential of up to 1.4 Mbps when Service is Available from Iridium®)
  • On-wing Security Key Generation
  • Scalable Satellite Data Unit (SDU) Architecture for Upgrades
  • Small Form Factor with Range of Antenna Gains

Collins Aerospace can help you meet your SATCOM requirements with high data rate capability and lower weight, drag and power usage than with other SATCOM offerings. The Iridium® network will bring increased data speeds. Through our ARINC GLOBALink and ARINCDirect offerings, Collins Aerospace is a service provider of Iridium Certus® satellite solutions for commercial airlines and business aircraft operators. We can help meet your service needs by taking advantage of Iridium Certus’ higher data speeds at lower data costs.

With over 3,000 legacy Iridium systems fielded already, we’re adding Iridium Certus services to our comprehensive suite of aircraft connectivity applications for commercial, government and business aviation customers. Data rates are currently up to 352 kbps with future planned upgrades to 704 kbps and, when available from Iridium, up to 1.4 Mbps.

Technical Specifications

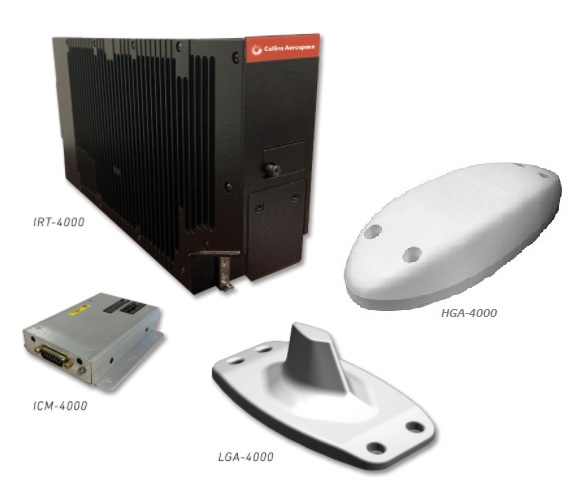

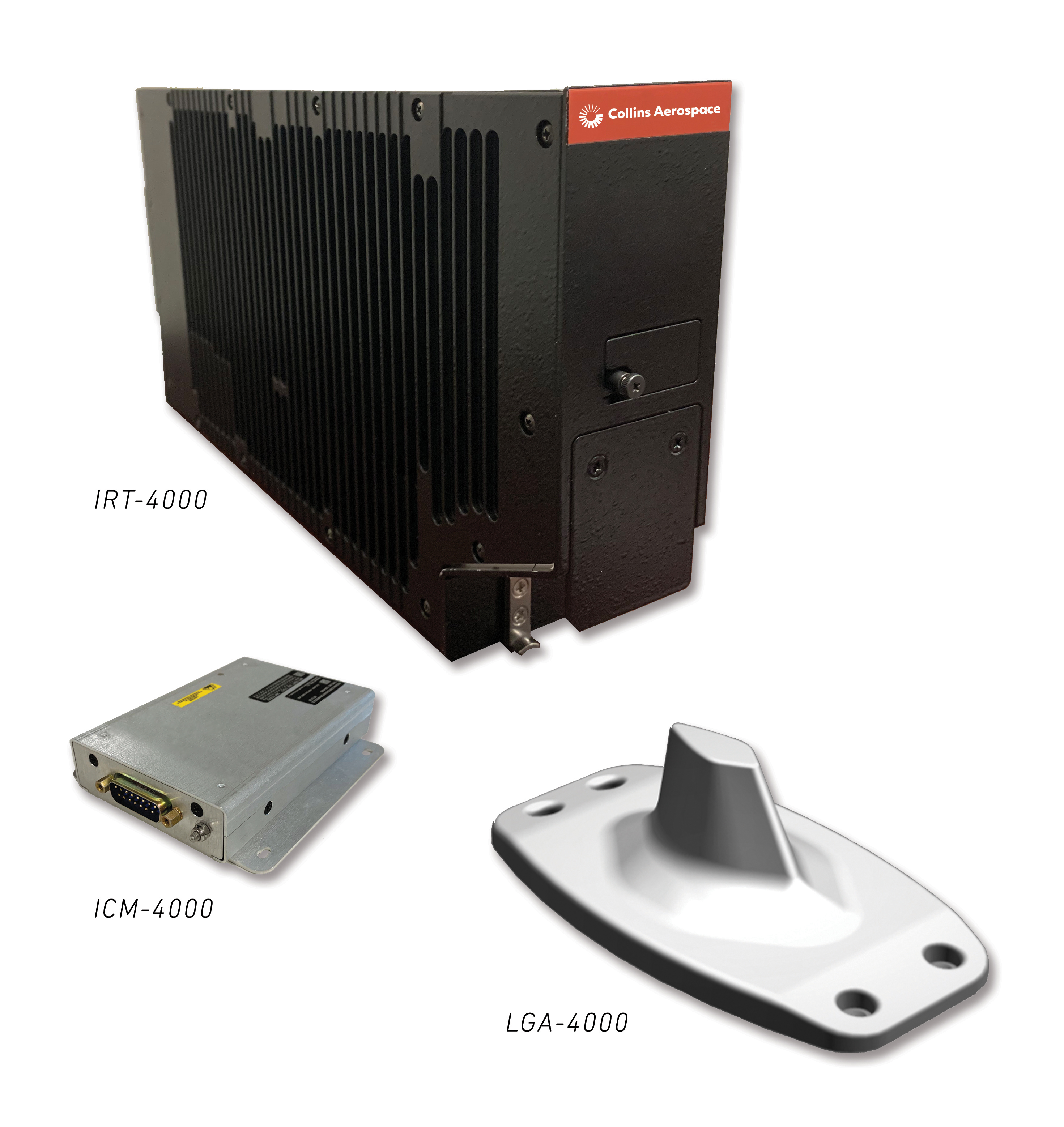

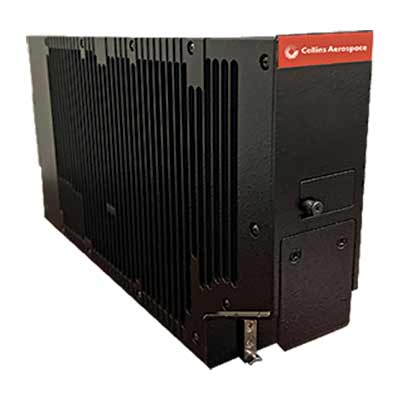

IRT-4000 Satellite Data Unit ICM-4000 Satellite Configuration Module LGA-4000 Low-gain Antenna HGA-4000 High-gain Antenna
Weight 7.7 lbs. 0.5 lbs <2 lbs. <7 lbs.
Size ~387.50 x 61.72 x 200.08 mm (15.256 x 2.430 x 7.877 in.) ~114.68 x 101.98 x 25.78 mm (3.300 x 4.015 x 1.015 in.) ~271.78 x 139.70 x 85.09 mm (10.7 x 5.5 x 3.35 in.) ~330.20 x 139.70 x 85.09 mm (13.0 x 5.5 x 3.35 in.)
Top-level Assembly 822-3585-100 822-3584-001 822-3587-001 822-3586-001
Installation Drawing 653-4690-001 653-4691-001 653-4462-001 653-4690-001
Power 28 VDC 12 +/1 0.56 VDC <40 W <80 W
Power Dissipation 1.0W
Footprint ARINC 771 Compliant ARINC 771 Compliant ARINC 771 Hole Pattern #4 ARINC 771 Hole Pattern #4



Product Safety Services Voice Channel Overall Data Rate (kbps) Domains Antenna
Analog VOIP
IRT-4010 (Light) Yes 2 0 22 ACD & AISD Active LGA
IRT-4100 (Low) Yes 2 1 88 ACD & AISD Active LGA
IRT-4200 (Medium) Yes 2 1 176 ACD & AISD Active LGA
IRT-4300 (High) Yes 2 1 352 ACD & AISD Active HGA


Certifications

  • Will be TSO, FCC, Iridium Approved, Safety Service Recognized
