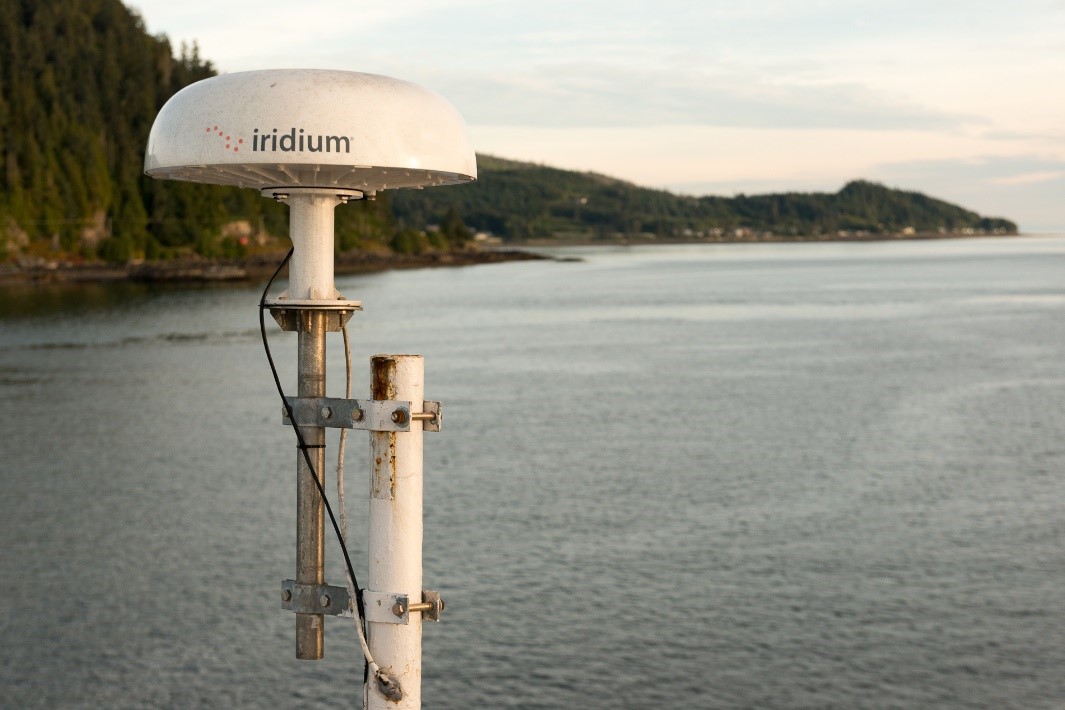

  • Iridium Pilot mounted on a ship

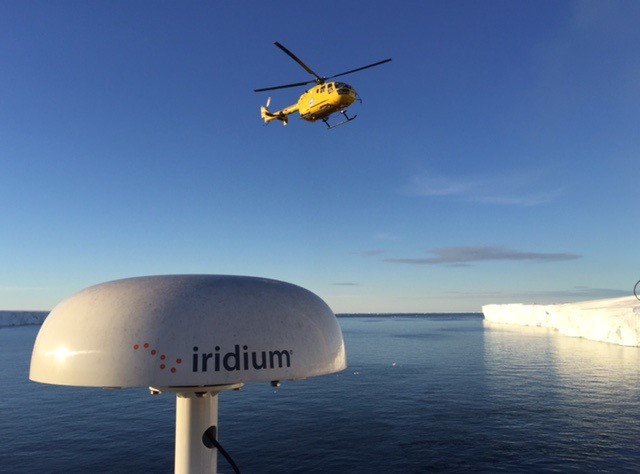

  • Iridium Pilot in use for Arctic expedition

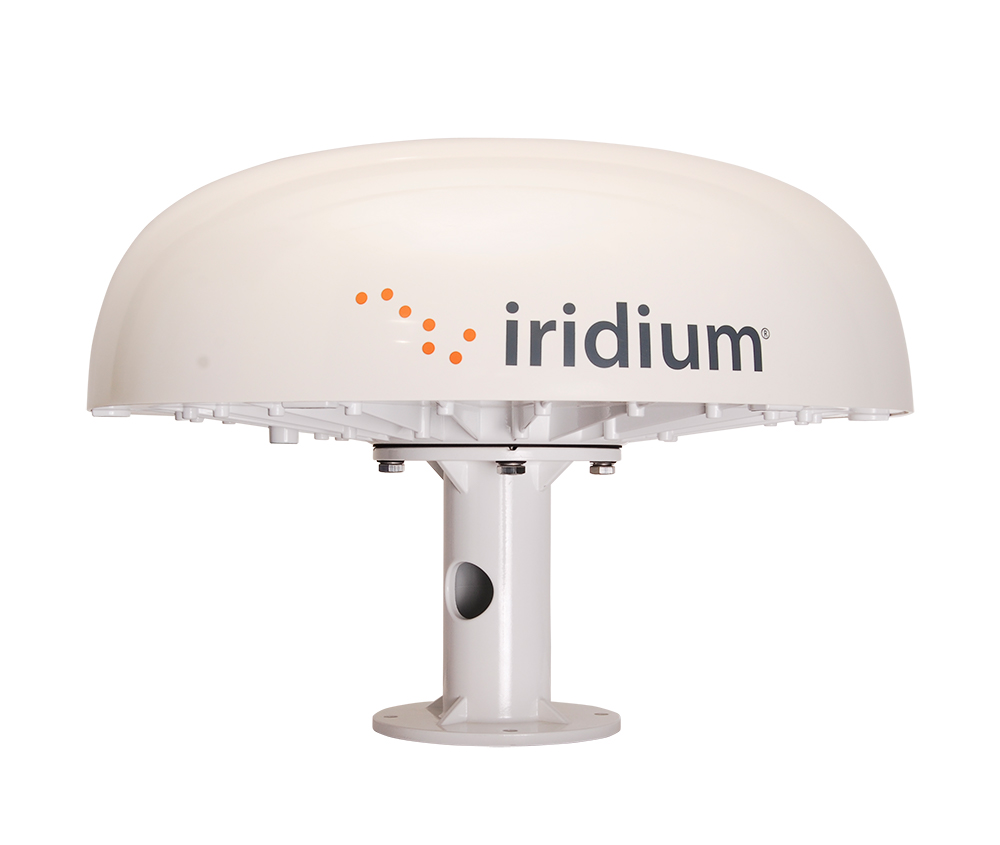

Iridium Pilot

Iridium Pilot® (Discontinued)

Manufacturer : Iridium

Model : BDU: 9701 / ADU: 9801

Services: Iridium OpenPort®

  • DISCONTINUED as of 06/2020
  • Truly Global, Pole-to-Pole Coverage
  • Up to Three (3) Simultaneous Voice Lines
  • Easy to Install
  • Ideal for Crew Calling and Bridge Communications
Iridium Pilot
Iridium Pilot mounted on a ship
Iridium Pilot in use for Arctic expedition
Iridium Pilot
Iridium Pilot mounted on a ship
Iridium Pilot in use for Arctic expedition

Iridium Pilot® (Discontinued)

Manufacturer : Iridium

Model : BDU: 9701 / ADU: 9801

Services: Iridium OpenPort®

  • DISCONTINUED as of 06/2020
  • Truly Global, Pole-to-Pole Coverage
  • Up to Three (3) Simultaneous Voice Lines
  • Easy to Install
  • Ideal for Crew Calling and Bridge Communications

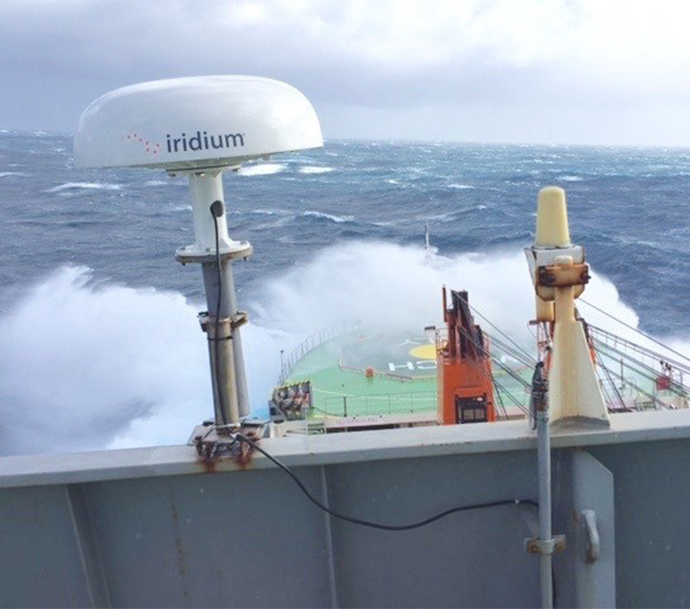

Iridium Pilot installed on a ship

Delivering Value, Performance, & Durability at Sea

Built to perform in tough conditions, Iridium Pilot® delivers reliable global broadband data and voice connectivity in one low-cost platform — keeping ships and crews connected when they need it most.

Built for the Toughest Conditions

Iridium Pilot is uniquely engineered to keep ships connected in blazing sun, frigid cold and high winds, over the Earth’s entire surface; open ocean or polar regions.

  • Truly Global Coverage
  • Ideal for primary and VSAT companion communications anywhere in the world, including polar regions, harbors, and ports
  • Multiple Voice Lines
  • Three (3) independent phone lines available with ability to separate business calls from crew welfare
  • Easy To Install
  • The lightweight, low profile omnidirectional antenna can be easily mounted at any convenient location on deck
  • Broadband Data
  • Delivers Iridium OpenPort® broadband services with speeds up to 134 Kbps
  • Weather Resilient Communications
  • Iridium's L-band connectivity performs even in adverse or harsh weather conditions at sea

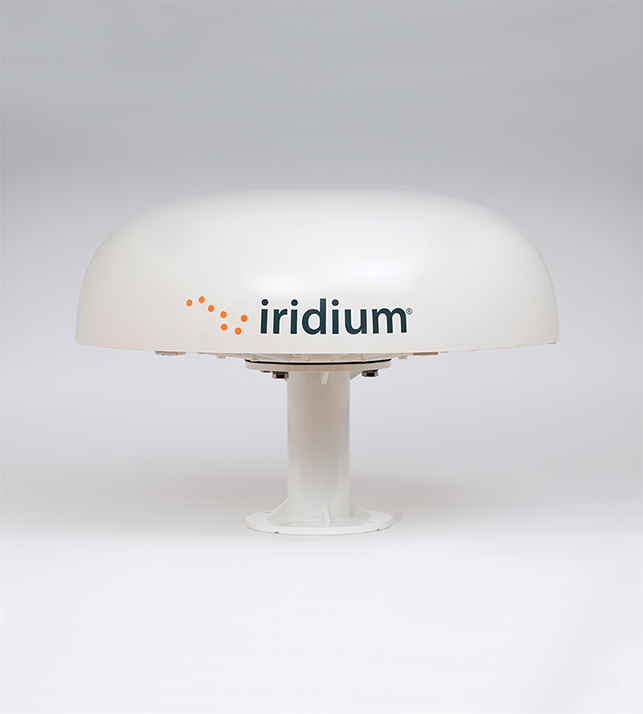

Iridium Pilot photograph

Related Case Studies

Iridium Pilot® Aids Antarctic Rescue of Stranded American Scientists

Argentina’s Ministry of Foreign Affairs facilitated a remote rescue mission using a naval icebreaker with Iridium Pilot.

Iridium® Keeps Climate Researchers Connected in the South Pole

Iridium’s tracking and communication devices provide a dynamic toolkit for conducting and relaying critical findings.

Related Case Studies

Iridium Pilot® Aids Antarctic Rescue of Stranded American Scientists

Iridium® Keeps Climate Researchers Connected in the South Pole

Argentina’s Ministry of Foreign Affairs facilitated a remote rescue mission using a naval icebreaker with Iridium Pilot.

Product Specifications and Certifications

Technical Specifications

Antenna Iridium Pilot® (Discontinued)
Mechanical
Weight 12500 g -
Environmental
Operating Temperature Range -30 to 70 ℃ -
Ingress Protection IP56 -
Network
Telephony - Yes

Certifications

  • FCC Part 15B
  • CE
  • IC
  • ANATEL
  • Australia
  • Italy
  • Mexico
  • Japan
  • Peru
  • Russia
  • Ukraine
