RockBLOCK+

Manufacturer : Ground Control

  • Global Location Tracker Using the Iridium® Satellite Network
  • Rugged
  • Waterproof
  • Two-Way Communications

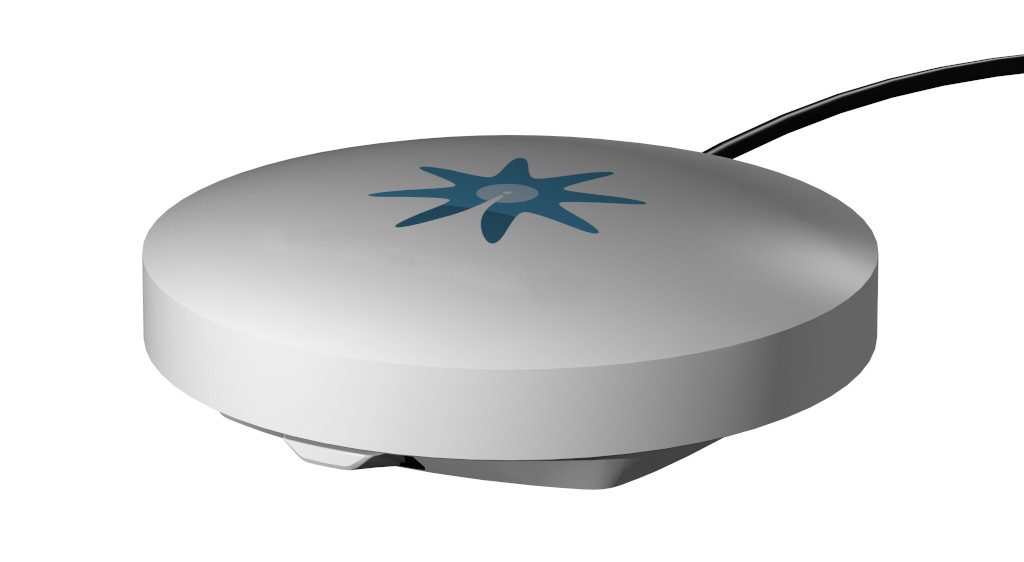

Rock Seven RockBLOCK+ Product Image
Rock Seven RockBLOCK+ Product Image

RockBLOCK+


Manufacturer : Ground Control

  • Global Location Tracker Using the Iridium® Satellite Network
  • Rugged
  • Waterproof
  • Two-Way Communications

Rugged Satellite Communications

The RockBLOCK+ allows you to send and receive short messages from anywhere on Earth with a clear view of the sky. It works far beyond the reach of Wi-Fi and GSM networks. Maybe you want to transmit weather information from mid-ocean? Or use it to control your robot in the middle of the desert? Perhaps you need to communicate in an emergency, when other networks might not be available?

RockBLOCK+ has a built-in power regulator and can accept between 9-30v DC. At the heart of RockBLOCK is an Iridium 9602 modem. The RockBLOCK hosts the 9602 and provides it with an antenna, and its power supply requirements. It exposes the modem’s serial interface via RS-232.

Sturdy, Waterproof, Global Tracker

Perfect for use in extreme environments the RockBLOCK+ encompasses all the messaging attributes of the RockBLOCK.

  • Functional
  • Waterproof casing with additional mounting options allow you to use the RockBLOCK + in many different environments
  • Power Requirements
  • The RockBLOCK + runs on 12/24v DC power supply. The integrated Sleepmode ensures that battery life is conserved when not in transmission
  • Integration
  • Appearing as a serial interface, the RockBLOCK can be controlled by a simple set of AT commands, making it easy to integrate into your own software
  • 2-way Global Messaging
  • Messages of up to 340 bytes can be delivered to your chosen email address or sent to your web service as a simple HTTP post. 270 byte messages can be sent by way of a simple HTTP Post
  • Global Connectivity
  • The RockBLOCK utilizes the power of the Iridium® Satellite Network. Iridium is the only satellite network that offers 24/7 transmission from any point on Earth including the polar regions

Product Specifications and Certifications

Technical Specifications

Mechanical
Field Label Field Value
Dimensions ( ø x H ) 40 mm x 130 mm
Weight 300 g
Iridium Embedded Technology Iridium 9602 Module
Environmental
Field Label Field Value
Operating Temperature Range -40 to 85 ℃
Operating Humidity Range < 75 % RH
Storage Temperature Range -40 to 85 ℃
Ingress Protection IP68
Power
Field Label Field Value
Power Supply 3 m 9-30v DC

RockBLOCK+

Perfect for use in extreme environments the RockBLOCK+ encompasses all the messaging attributes of the RockBLOCK.
