Lars Thrane LT-4100S GMDSS Satellite Midband Terminal
Services: Global Maritime Distress & Safety System (GMDSS) | Iridium Certus® 100 | Voice Calling | Iridium GMDSS Powered By Iridium Certus
-
Fully MED/Wheelmark approved Iridium Certus® 100 GMDSS terminal
-
Distress alert & distress call
-
Ship Security Alert System (SSAS) & Long Range Identification & Tracking (LRIT)
-
IP-data: 22 kbps (up) / 88 kbps (down) & two individual voice channels
-
Up to 500m antenna cable
Lars Thrane LT-4100S GMDSS Satellite Midband Terminal
Manufacturer : Lars Thrane A/S
Model : 90-104949
Services: Global Maritime Distress & Safety System (GMDSS) | Iridium Certus® 100 | Voice Calling | Iridium GMDSS Powered By Iridium Certus
-
Fully MED/Wheelmark approved Iridium Certus® 100 GMDSS terminal
-
Distress alert & distress call
-
Ship Security Alert System (SSAS) & Long Range Identification & Tracking (LRIT)
-
IP-data: 22 kbps (up) / 88 kbps (down) & two individual voice channels
-
Up to 500m antenna cable
Supporting Truly Global Coverage for SOLAS Vessels
The LT-4100S GMDSS System is an Iridium satcom product supporting all GMDSS requirements for SOLAS vessels with truly global coverage.
The LT-4100S GMDSS System is fully compliant and tested towards the new GMDSS standard IEC 61097-16 (2019). The LT-4100S GMDSS System is MED/Wheelmark approved.
The LT-4100S GMDSS System is small and compact. No requirements for either message terminal or printer. The LT-4100S GMDSS System offers the Iridium GMDSS services, high quality voice (2 channels), and IP data.
The built-in GNSS/GPS receiver supports tracking functionality and can output NMEA 0183 position data. The LT-4100S GMDSS System can interface to external BAM and ECDIS systems. The antenna unit can be installed up to 500 meters from the Control Unit.

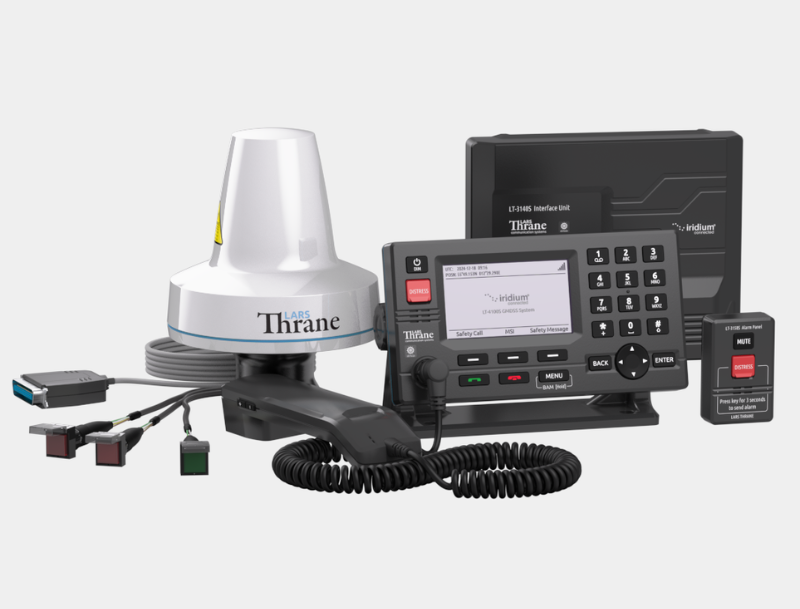

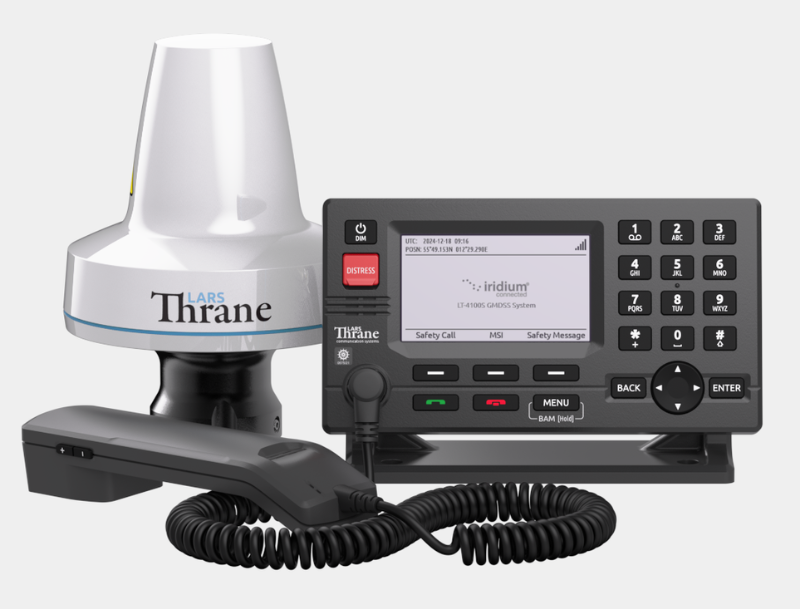

The standard LT-4100S GMDSS System is offered in a version that includes control unit & bracket mount, handset & cradle, antenna unit & power cable. The standard version fulfills all the GMDSS basic requirements. Additional services like SSAS, GMDSS Alarm Panels and printer, will require the LT-3140S Interface Unit.
Features
- Truly Global Coverage
- Distress Alert & Distress Call
- Maritime Safety Information (MSI)
- BAM & ECDIS Interface
- High Quality Voice
-
2 channels
- IP-Data
-
22 kbps (up) / 88 kbps (down)
- Antenna Cable Length
-
Up to 500m
Product Specifications and Certifications
| Mechanical | |
|---|---|
| Iridium Embedded Technology | Iridium Certus 9770 Module |
- Iridium® certification
- MED
- RED
- FCC
- ISED
- ROHS2
