Iridium Edge® Pro

Manufacturer : Iridium

Model : EDGEPRO9690

  • Intelligent, Programmable Stand-Alone Device

  • Save on Development Costs and Reduce Time to Market

  • Digital and Analog I/O Ports

  • Integrated GPS, Accelerometer, and Temperature Sensors

  • Development Kit and Online Development Platform with Java Programming Libraries Available

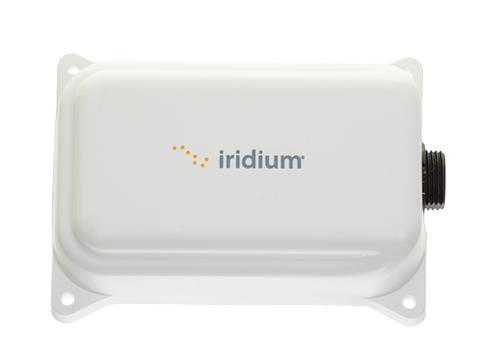

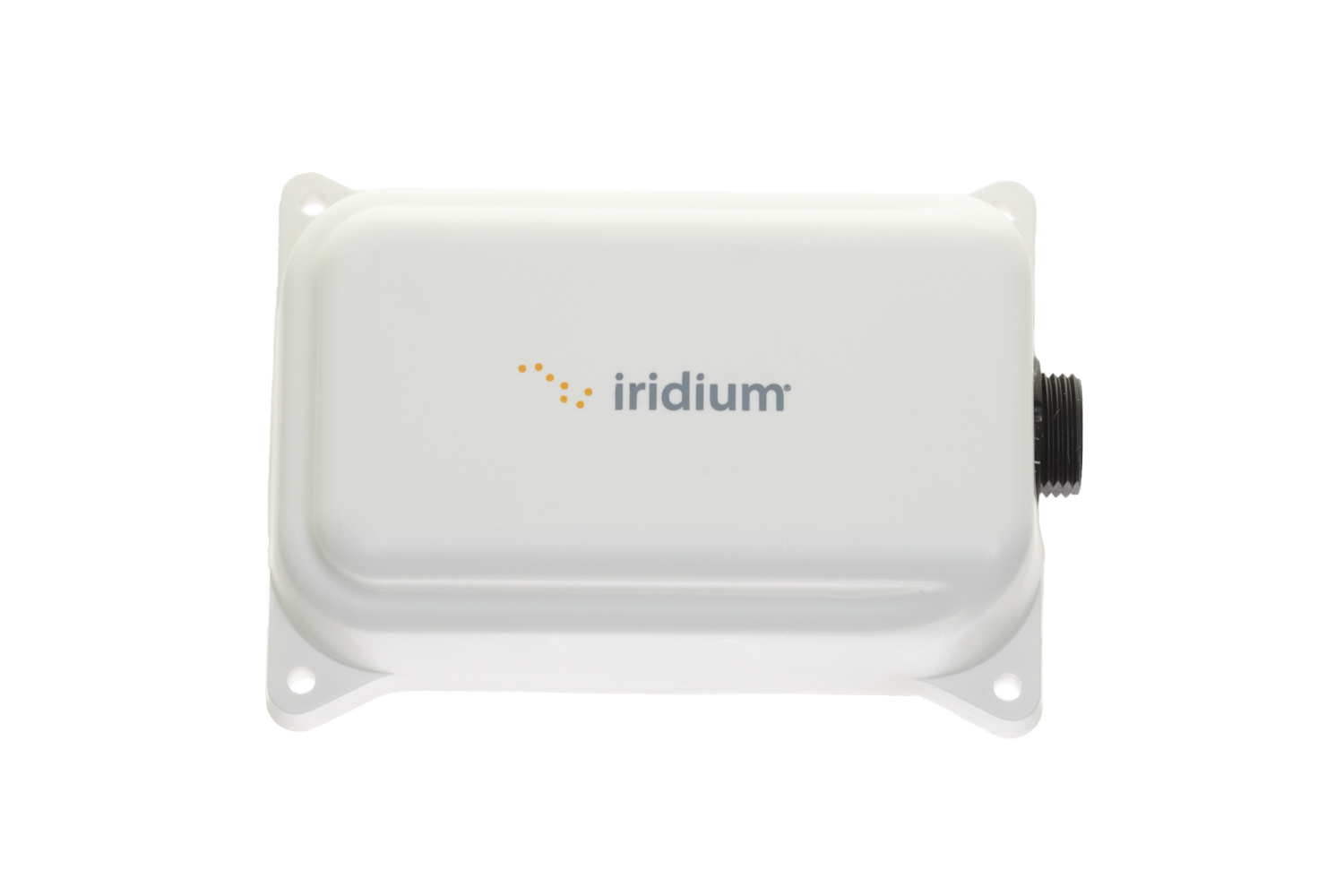

Iridium Edge Pro device

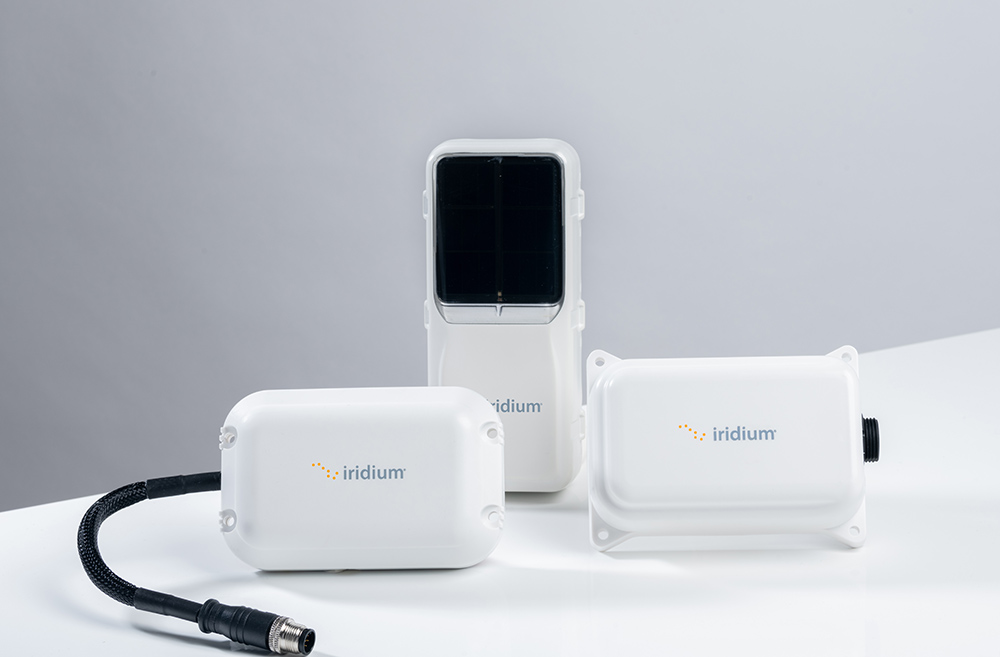

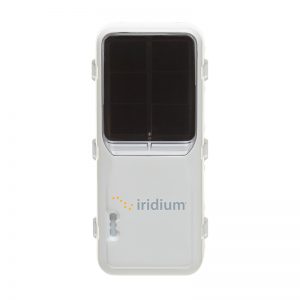

Iridium Edge family of products
Iridium Edge Pro device
Iridium Edge family of products

Iridium Edge® Pro


Manufacturer : Iridium

Model : EDGEPRO9690

  • Intelligent, Programmable Stand-Alone Device

  • Save on Development Costs and Reduce Time to Market

  • Digital and Analog I/O Ports

  • Integrated GPS, Accelerometer, and Temperature Sensors

  • Development Kit and Online Development Platform with Java Programming Libraries Available

Collage of Iridium Edge Pro sample markets

Innovate. Customize. Deploy.

Iridium Edge Pro offers a simplified way to innovate, customize, and deploy smarter solutions for remote asset management. Create customizable end-to-end monitoring solutions for vessels, vehicles, and remote equipment using Iridium’s best in class two-way network and truly global coverage.

Asset Management Made Smarter

Create new applications quickly, test them virtually, and deploy them confidently anywhere in the world. Through powerful Java programming, the Iridium Edge Pro collects and processes data based on operational requirements, including exception-only reporting that can minimize operational costs.

  • Programmable
  • A programmable hardware platform with interfaces for sensor and equipment integration

  • Built-In Services
  • Geofencing, event logging, position reporting, CanBus, Modbus, J1939, and BLE

  • Two Way Communications
  • Receive data and easily make over-the-air modifications in real-time from anywhere in the world

  • Cellular Companion
  • Easily paired with cellular solutions using programmable interfaces

  • Quick & Easy Development
  • Quick partner development using MicroEJ® Java development tools and industry-standard eclipse-based Integrated Development Environment (IDE)

  • Certifications
  • Critical industry, regional, and country-specific certifications available to expedite solution deployment

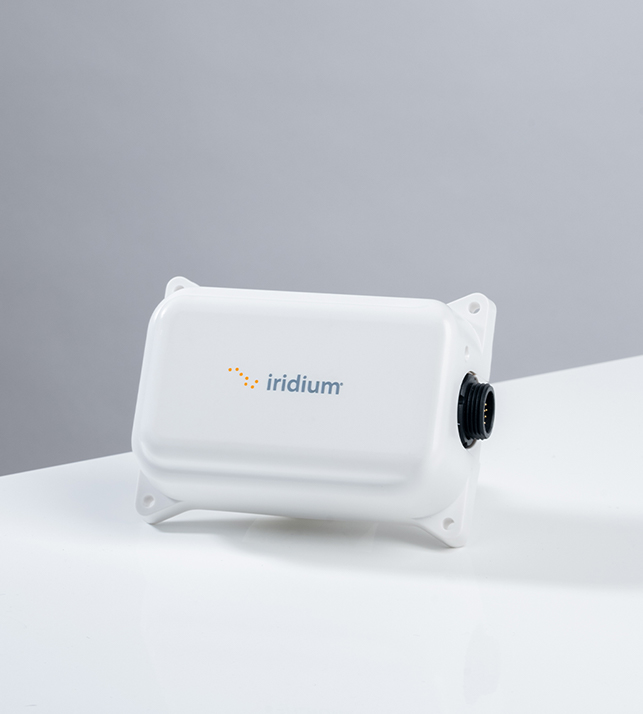

Iridium Edge Pro studio photograph

Product Specifications and Certifications

Technical Specifications

Mechanical
Dimensions (L x W x H) 127mm x 90mm x 41mm
Weight 200 g
Environmental
Operating Temperature Range -40 to +85 ℃
Ingress Protection IP67
Vibration Standard SAE J1455 Section 4.10
Power
Input Voltage Range 7 to 32V
Maximal Power 1.6 W

Certifications

  • ITU
  • CE
  • IC
  • FCC Parts 15C, 25

Login to access additional resources

Resources

Certification - Regulatory
Last Updated
Size
Document Name
Iridium Australia - Asbestos Declaration
File Name
2022 Iridium Australia Asbestos Declaration - exe.pdf
Vendor
Iridium
Description
2022 Iridium Australia Asbestos Declaration for importers to Australia
File Type
PDF
File Size
168.34 KB
File Version
1.0
Date
February 07, 2022 12:00 AM EST
Related Products
Iridium 9555, Iridium 9575A for U.S. Government, Iridium 9602 Module, Iridium 9603 Module, Iridium Certus™ 9770, Iridium Certus™ 9810, Iridium Core 9523, Iridium Edge®, Iridium Edge® Demo Kit, Iridium Edge® Pro, Iridium Extreme®, Iridium Edge® Solar Demo Kit, Iridium Extreme® PTT, Iridium Extreme® in Sporting Camo, Iridium Edge® Pro Development Kit, Iridium Edge® Solar, Iridium Extreme® in Safety Yellow, Iridium GO!®, Iridium GO!® App, Iridium GO!® Fixed Installation Kit, Iridium GO!® Vehicular Kit, Iridium Pilot® (Discontinued), Iridium Pilot® Land Station (Discontinued)
Document Name
Iridium Edge Pro - EU Declaration of Conformity (EDGEPRO9690)
File Name
CRT_Iridium Edge Pro_EU Declaration of Conformity_EDGEPRO9690_101420.pdf
Vendor
Iridium
Description

EU Declaration of Conformity for the Iridium Edge Pro
PN: EDGEPRO9690
Dated: October 14, 2020

File Type
PDF
File Size
160.76 KB
File Version
1.0
Date
October 14, 2020 05:45 PM EST
Related Products
Iridium Edge® Pro
Document Name
Iridium Edge Pro - Maritime - Class Society SOP
File Name
419236 SOP.pdf
Vendor
Iridium
Description
Statement of Performance (SOP) for Iridium 9690 Edge Pro Maritime Class Society testing
File Type
PDF
File Size
144.75 KB
File Version
E21079.01
Date
July 20, 2021 12:00 AM EST
Related Products
Iridium Edge® Pro
Document Name
Iridium Edge Pro - Maritime - Class Society Test Report
File Name
419236 TRF MAR r01-1.pdf
Vendor
Iridium
Description
Technical test report for Iridium 9690 Edge Pro Maritime Class Society testing
File Type
PDF
File Size
3.75 MB
File Version
E21079.01
Date
May 28, 2021 12:00 AM EST
Related Products
Iridium Edge® Pro
Document Name
Iridium Edge Pro - REACH Declaration (EDGEPRO1901)
File Name
CRT_Iridium Edge Pro_REACH Declaration_EDGEPRO1901_072420.pdf
Vendor
Iridium
Description

REACH Declaration for the Iridium Edge Pro
PN: EDGEPRO1901
Dated: July 24, 2020

File Type
PDF
File Size
182.19 KB
File Version
1.0
Date
July 24, 2020 01:07 PM EST
Related Products
Iridium Edge® Pro
Verticals
IoT
Document Name
Iridium REACH 223 Declarations - All Products - February 15, 2022
File Name
Iridium REACH 223 Declaration - All Products - February 15, 2022.zip
Description
Under Article 33 of EU REACH Regulation 1907/2006, Iridium Satellite LLC (Iridium) has a duty to communicate to our customers the presence of SVHCs in excess of 0.1% by weight of articles contained in our products. Iridium reviewed the following transceiver products for the presence of the Two Hundred Twenty-Three (223) SVHC substances on the EU SVHC Candidate List as of January 17, 2022.
File Type
ZIP
File Size
9.24 MB
File Version
223
Date
May 16, 2022 12:00 AM EST
Related Products
Iridium 9575A for U.S. Government, Iridium 9555, Iridium 9602 Module, Iridium 9603 Module, Iridium Certus™ 9770, Iridium Certus™ 9810, Iridium Core 9523, Iridium Edge®, Iridium Edge® Pro, Iridium Edge® Solar, Iridium Extreme®, Iridium Extreme® in Safety Yellow, Iridium Extreme® in Sporting Camo, Iridium Extreme® PTT, Iridium GO!®
Document Name
Iridium SIM Cards - REACH 219 Declaration
File Name
Iridium REACH 219 Declaration - SIM Cards exe.pdf
Vendor
Iridium
Description
This is the REACH 219 declaration for all Iridium SIM models, (listed in the declaration).
File Type
PDF
File Size
169.57 KB
File Version
211
Date
June 28, 2021 12:00 AM EST
Related Products
Iridium Extreme®, Iridium 9555, Iridium Certus™ 9770, Iridium Certus™ 9810, Iridium Core 9523, Iridium Edge®, Iridium Edge® Pro, Iridium Edge® Solar, Iridium GO!®, Iridium Extreme® PTT, Iridium Pilot® (Discontinued), Iridium Pilot® Land Station (Discontinued)
Document Name
Iridium SIM Cards - RoHS Certificate of Compliance
File Name
Iridium RoHS Declaration - SIM Cards - exe.pdf
Vendor
Iridium
Description
This is the EU RoHS certificate for all Iridium SIM models, (listed in the declaration).
File Type
PDF
File Size
195.08 KB
File Version
RoHS 2, Annex III and IV
Date
June 28, 2021 12:00 AM EST
Related Products
Iridium 9555, Iridium Certus™ 9770, Iridium Certus™ 9810, Iridium Core 9523, Iridium Edge®, Iridium Edge® Pro, Iridium Edge® Solar, Iridium Extreme®, Iridium Extreme® PTT, Iridium GO!®, Iridium Pilot® (Discontinued), Iridium Pilot® Land Station (Discontinued)
Document Name
Iridium Subscriber Equipment - TSCA Declaration
File Name
Iridium TSCA Letter - 2021-11-09 - exe.pdf
Vendor
Iridium
File Type
PDF
File Size
241.54 KB
File Version
2.0
Date
May 21, 2021 12:00 AM EST
Related Products
Iridium 9555, Iridium 9575A for U.S. Government, Iridium 9602 Module, Iridium 9603 Module, Iridium Certus™ 9770, Iridium Certus™ 9810, Iridium Core 9523, Iridium Edge®, Iridium Edge® Demo Kit, Iridium Edge® Pro, Iridium Edge® Pro Development Kit, Iridium Edge® Solar, Iridium Edge® Solar Demo Kit, Iridium Extreme®, Iridium Extreme® PTT, Iridium GO!®, Iridium GO!® App, Iridium GO!® Fixed Installation Kit, Iridium Mail App, Iridium Pilot® (Discontinued), Iridium Pilot® Land Station (Discontinued)
Comparison Chart
Document Name
Iridium Edge Family - Comparison Chart
File Name
CC_Iridium Edge Family Products_Comparison Chart_033121(2).pdf
Vendor
Iridium
Description

Chart comparing the differences between the Iridium Edge Family's line of products, which include the Iridium Edge, Iridium Edge Pro and the Iridium Edge Solar.
Dated: March 31, 2021

File Type
PDF
File Size
234.3 KB
File Version
1.0
Date
March 31, 2021 09:00 AM EST
Related Products
Iridium Edge®, Iridium Edge® Demo Kit, Iridium Edge® Pro, Iridium Edge® Pro Development Kit, Iridium Edge® Solar, Iridium Edge® Solar Demo Kit
Verticals
IoT
Document Name
Iridium IoT - Comparison Chart - Products & Services by Service Class
File Name
CC_Iridium IoT Products Services_by Service Class_Comparison Chart_Oct 2021.pdf
Vendor
Iridium
Description
Chart comparing applications and features between Iridium and Iridium Connected® narrowband, midband, and broadband IoT products.
File Type
PDF
File Size
454.73 KB
File Version
4.0
Date
October 14, 2021 12:00 AM EST
Related Products
Iridium Core 9523, Iridium 9603 Module, Iridium 9602 Module, Iridium Edge®, Iridium Edge® Pro, Iridium Edge® Solar, Iridium Certus™ 9770
Related Services
Iridium Certus® 100, Iridium Short Burst Data® (SBD®)
Verticals
IoT
Product & Service Manuals
Oct 27, 2020
784.95 KB
Document Name
Iridium Edge Pro - User Manual
File Name
UM_Iridium Edge Pro_User Manual_102720.pdf
Vendor
Iridium
Description

User Manual for the Iridium Edge Pro
Dated: October 27, 2020

File Type
PDF
File Size
784.95 KB
File Version
1.0
Date
October 27, 2020 01:54 PM EST
Related Products
Iridium Edge® Pro
Verticals
IoT
Product Details
Sep 17, 2020
205.62 KB
Document Name
Iridium Edge Pro - Datasheet
File Name
DS_Iridium Edge Pro_Datasheet_091720.pdf
Vendor
Iridium
Description

Product Datasheet for the Iridium Edge Pro
Dated: September 17, 2020

File Type
PDF
File Size
205.62 KB
File Version
3.0
Date
September 17, 2020 10:48 AM EST
Related Products
Iridium Edge® Pro
Verticals
IoT
Use Cases & Infographics
Document Name
Iridium Edge Family - Use Case - Agribusiness
File Name
Iridium Edge Family for Agribusiness - Use Case.pdf
Vendor
Iridium
Description
Learn how Iridium Edge®, Iridium Edge® Solar, and Iridium Edge® Pro help agribusiness professionals work safely and efficiently.
File Type
PDF
File Size
8.12 MB
File Version
1.0
Date
February 16, 2022 12:00 AM EST
Related Products
Iridium Edge® Pro, Iridium Edge® Solar, Iridium Edge®
Verticals
IoT
Document Name
Iridium Edge Pro - Use Case - Fisheries (VMS)
File Name
UC_Iridium Edge Pro_Use Case_Fisheries (VMS)_082020(2).pdf
Vendor
Iridium
Description

Use Case describing how the Iridium Edge Pro can be utilized in Fisheries (VMS) industries

File Type
PDF
File Size
224.52 KB
File Version
1.0
Date
August 14, 2020 09:00 AM EST
Applications
Vessel Monitoring System
Related Products
Iridium Edge® Pro
Verticals
IoT
Document Name
Iridium Edge Pro - Use Case - Maritime - Fisheries (VMS) - RUS
File Name
UC_Iridium Edge Pro_Use Case_Maaritime_Fisheries (VMS)_082020_RUS.pdf
Vendor
Iridium
Description

Use Case describing how the Iridium Edge Pro can be utilized in Fisheries (VMS) industries (Russian translation)

File Type
PDF
File Size
4.72 MB
File Version
1.0
Date
August 20, 2020 12:00 AM EST
Applications
Vessel Monitoring System
Related Products
Iridium Edge® Pro
Verticals
IoT, Maritime
Document Name
Iridium Edge Pro - Use Case - SCADA
File Name
UC_Iridium Edge Pro_Use Case_SCADA_082020(2).pdf
Vendor
Iridium
Description

Use Case describing how the Iridium Edge Pro can be utilized in SCADA

File Type
PDF
File Size
184.53 KB
File Version
1.0
Date
August 14, 2020 09:00 AM EST
Applications
SCADA
Related Products
Iridium Edge® Pro
Related Services
Iridium Short Burst Data® (SBD®)
Verticals
IoT
Document Name
Iridium Edge Pro - Use Case - SCADA (RUS)
File Name
UC_Iridium Edge Pro_Use Case_SCADA_082020_RUS.pdf
Vendor
Iridium
Description

Use Case describing how the Iridium Edge Pro can be utilized in SCADA (Russian translation)

File Type
PDF
File Size
2.81 MB
File Version
1.0
Date
August 20, 2021 12:00 AM EST
Applications
SCADA
Related Products
Iridium Edge® Pro
Related Services
Iridium Short Burst Data® (SBD®)
Verticals
IoT

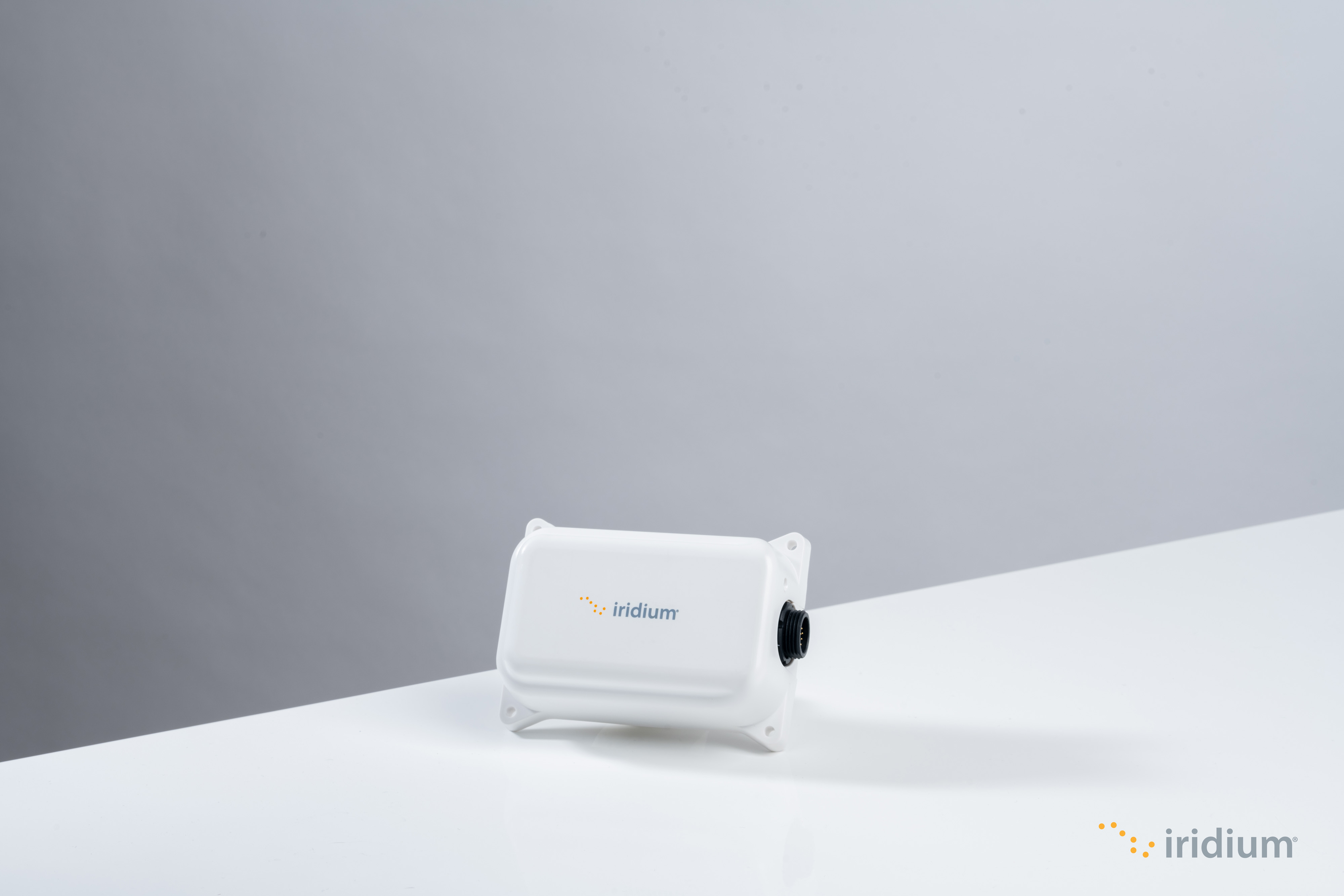

Iridium Edge Pro Product Image

Iridium Edge® Pro

Create new applications quickly, test them virtually, and deploy them confidently anywhere in the world. Through powerful Java programming, the Iridium Edge Pro collects and processes data based on operational requirements, including exception-only reporting that can minimize operational costs.
