CPN EVERY MissionLINK 700

By : CPN Satellite Services GMBH | Model : 00003053
  • Fully Operating & IP-54 Protected When Lid Is Closed
  • Autofailover: Always Searches For the Best Connection Available
  • (3) High Quality Voice Lines Via Iridium Certus® 700 Service
  • SAT-antenna Is Detachable For External Mounting on a Vehicular Roof (Optional)
  • Fly Away Ready
  • Works Completely Autonomously Via Included Batteries

The CPN EVERY MissionLINK 700 Dual Mode Peli Case Solution using the new Iridium Certus® 700 service and CPN Smart SIM’s gives your critical operation global communications coverage regardless of the landscape, the weather conditions & the availability of power.

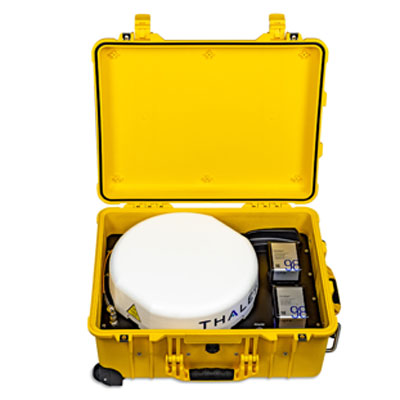

The CPN EVERY MissionLINK 700, is a Dual Mode (LTE & Satellite) Peli Case Solution, fully operating and IP-54 protected when the lid is closed.

The CPN EVERY MissionLINK 700 Dual Mode Peli Case Solution offers wireless LTE Connectivity and has an automatic failover to the Iridium Certus® Service, when the LTE connection is lost or not available.

It is always searching for the best wireless connection available for essential communications; EVERY-where on this planet.


Features

Multiple Power Sources
Battery, Vehicle 12V DC, External Battery Charger (90 – 264V AC)

Detachable Batteries
98 Wh Batteries with Battery Charging Level & Capacity Indicator

Hot-swap Function
Swaps the Batteries without Interruption for Endless Off-grid Operation

Battery Protect
Disconnects the Battery Before it Has Insufficient Power Left to Crank the Engine, Using a Cigarette Lighter Cable

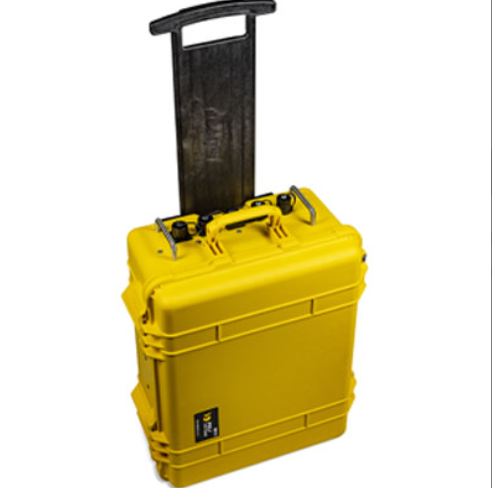

All-In-One Trolley
For Easy Transportation

Integrated 4-in-1 Antenna
GSM, Diversity, Wi-Fi, GNSS

Sierra Wireless Smart SIM
Commercial & Enterprise LTE Network Connectivity for North America, EMEA or Australia & New Zealand Licensed


Benefits

  • Primary LTE Connection with Automatic Failover to Satellite
  • Three (3) High Quality Voice Lines via Iridium Certus® 700 Service
  • Location Tracking
  • Electronically Steered Antenna (No Pointing Needed)
  • Simple Handling
  • Cellular Active LED
  • Airline Checkable (Batteries Must be Carried in Hand Luggage)

Technical Specifications

Physical Specifications

Dimensions 61.4 x 46.5 x 30.7 cm (24.1 x 18.3 x 12.08 in)
Weight 20 kg (44 lb)
Ingress Protection IP54, Dust & Water-resistant
  • Peli Case 1560
  • Thales MissionLINK
  • AirLink® LX60 LTE Router with 4in1 Antenna
  • (2) x 98 Wh / 6.8 Ah Batteries (Including Travel Case)
  • External Power Supply (Including Travel Case)
  • 3 m Vehicle Cable
  • 3 m Ethernet Cable
  • Quick Start Guide



Power

Vehicle
      Input Voltage 12V DC
External Battery Charger
      Input Voltage 90 – 264V AC
      Output Voltage 16.8V DC (84W)
      Charging Time Batteries 2.5h (System Not Running)
Battery
(2) Detachable Batteries (98Wh / 6.8Ah)



Environmental Specifications

Operating Temperature -30°C to 55°C (-22°F to 131°F)
Battery Charging Temperature -10°C to 35°C (14°F to 95°F)



Connectivity

  • GNSS
    • LTE Modem: GPS, GLONASS, BeiDou, Galileo
    • MissionLINK: GPS

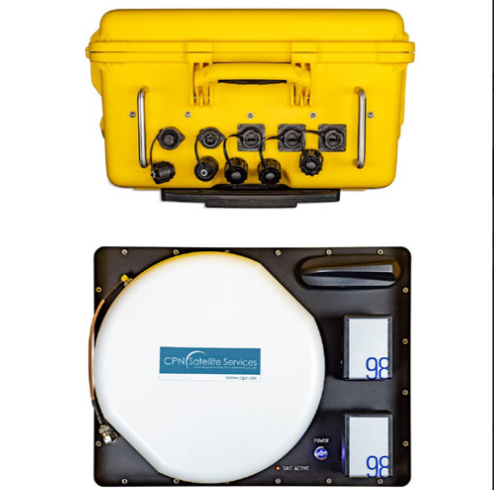

Interfaces

  • Dual Band 802.11 AC Wi-Fi Hot-spot
  • (2) External Ethernet Port’s (RJ-45)
  • (1) External Phone Port (RJ-14)



Communication

  • LTE:
    • Downlink: Up to 150 Mbps
    • Uplink: Up to 50 Mbps
  • Satellite:
    • Downlink: Up to 700 Kbps
    • Uplink: Up to 352 Kbps
    • Streaming 256 kbps

Certifications

  • Thales Approved
