PLANET 9770 UAV-L Terminal
-
Meets Global Operations Connectivity Requirements for Unmanned Aerial Vehicles (UAV)
-
Global Mobile Connectivity
-
Optimal Midband Throughput
-
Easy Integration on Manned/Unmanned Platforms
-
High-Reliability Product & Service
![](https://www.iridium.com/wp-content/themes/Iridium/images/IMG_Logo_Iridium_Connected_Logo_BLKGLD_MAY18.png)

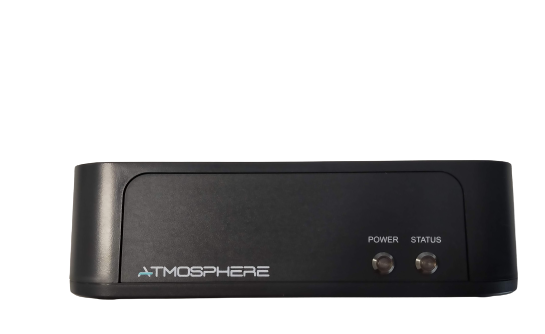

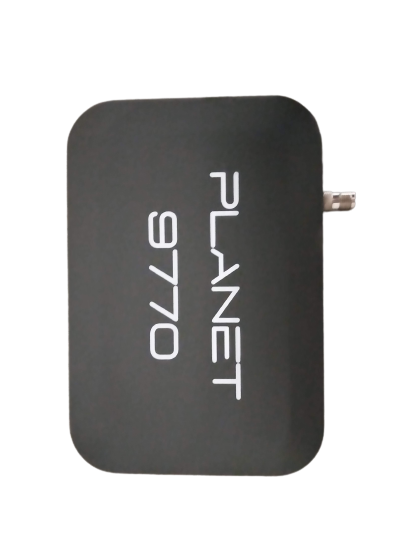

PLANET 9770 UAV-L Terminal
Manufacturer : ATMOSPHERE
Model : 9770 UAV-L
-
Meets Global Operations Connectivity Requirements for Unmanned Aerial Vehicles (UAV)
-
Global Mobile Connectivity
-
Optimal Midband Throughput
-
Easy Integration on Manned/Unmanned Platforms
-
High-Reliability Product & Service
About The Terminal
The PLANET 9770 UAV-L Terminal answers mobile communication requirements of UAV systems with Iridium Certus® 100 satellite service. It delivers native IP connectivity with midband throughput (88kbps MT, 22kbps MO).

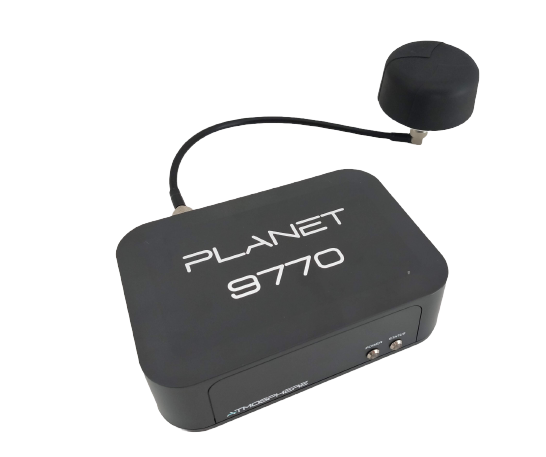

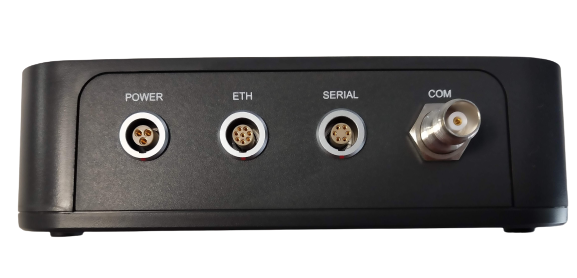

The terminal offers local interfaces (Power, Ethernet, Serial), a GNSS receiver for autonomous location and timing, and uses a low-profile passive antenna that can be easily installed on the UAV without ground plane required.
In addition to mobile IP routing capability, the embedded PLANET application–available through a web interface–provides added value functions such as tracking, collaboration tools, telemetry handling, and weather upload services.
Terminal Features
- GNSS Receiver
- Fanless Processor (SMARC)
- High-Reliability Power Modules
- Extensive SSD Storage
- Remote Platform Command & Control
- Payload Configuration
- Real-Time Sensor Data & Downlink
- Independent Flight Termination
Product Specifications and Certifications
Mechanical | |
---|---|
Iridium Embedded Technology | Iridium Certus 9770 Module |
Iridium Certification
