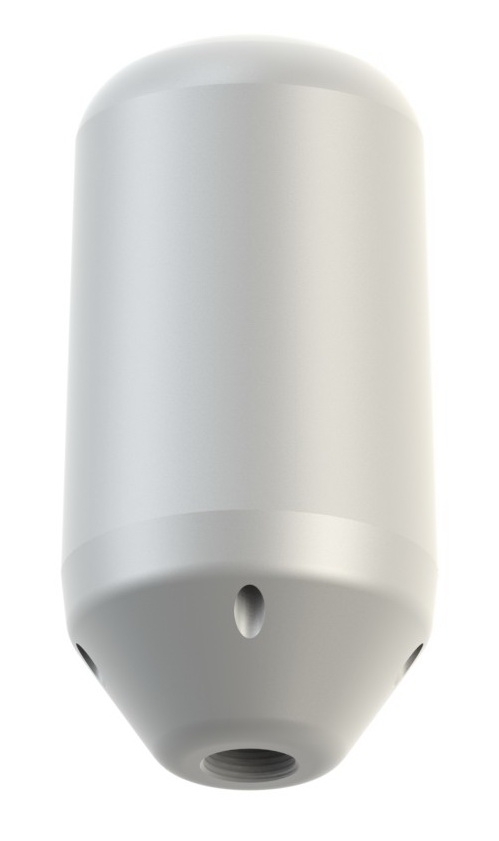

SCAN Passive Omni Antenna 65000

Manufacturer : SCAN Antenna A/S

Model : 65000-001

  • Passive Antenna for Iridium® Terminals
  • Well Suited for Iridium GO!®
  • Requires No Pointing Towards Satellite
  • Low Loss Radome
  • Cable Loss Below 3 dB is Recommended
Passive Omnidirectional Antenna 65000 Product Image
Passive Omnidirectional Antenna 65000 Product Image
Passive Omnidirectional Antenna 65000 Product Image
Passive Omnidirectional Antenna 65000 Product Image
Passive Omnidirectional Antenna 65000 Product Image
Passive Omnidirectional Antenna 65000 Product Image
Passive Omnidirectional Antenna 65000 Product Image
Passive Omnidirectional Antenna 65000 Product Image
Passive Omnidirectional Antenna 65000 Product Image

SCAN Passive Omni Antenna 65000


Manufacturer : SCAN Antenna A/S

Model : 65000-001

  • Passive Antenna for Iridium® Terminals
  • Well Suited for Iridium GO!®
  • Requires No Pointing Towards Satellite
  • Low Loss Radome
  • Cable Loss Below 3 dB is Recommended

Passive Omni Antenna

The Scan Antenna Passive Omni Antenna is designed for Iridium terminals optimum connection between the terminal and the satellites. It is well suited for maritime, land-mobile and fixed installations.

Product Specifications and Certifications

Technical Specifications

SCAN Passive Omni Antenna 65000

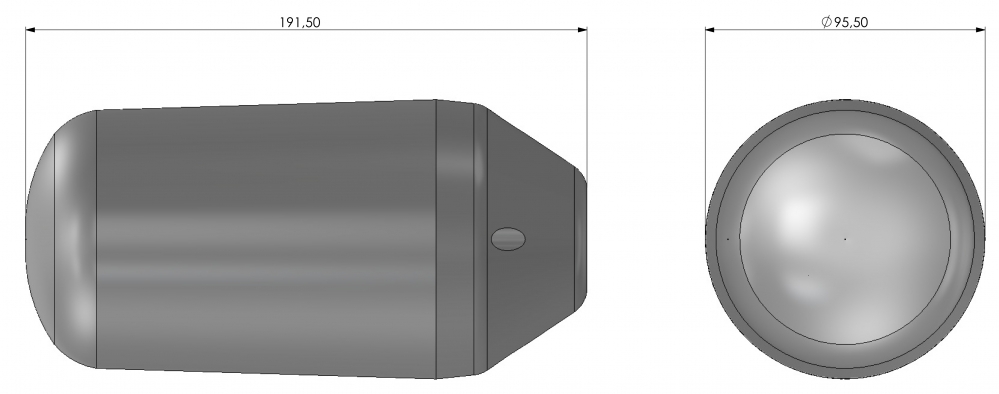

Mechanical
Dimensions ( H x ø ) 150mm x 95mm
SCAN Passive Omni Antenna 65000
Environmental
Operating Temperature Range -40 to +70 ℃
Ingress Protection IP67
SCAN Passive Omni Antenna 65000

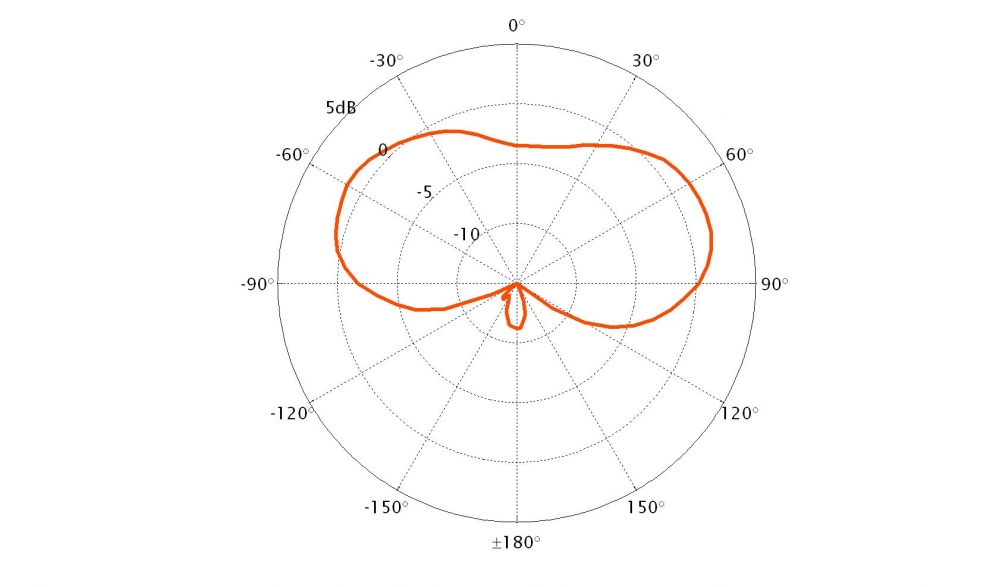

Antenna
Antenna Design Helical
Type Passive Omnidirectional Antenna
Polarization RHCP
Maximum Gain 2 dBi
Steering Omni
SCAN Passive Omni Antenna 65000
RF Interface
Frequency Range 1616 - 16226.5 MHz
I / O Impedence 50 Ohm

SCAN Passive Omni Antenna 65000
