Sirius One

  • Combines Short Burst Data® (SBD®), VMS, & LRIT in One Module
  • Easy Installation
  • Extended Battery for Operation Even Without External Power
  • Internal Temperature Sensors
  • Built in GPS, GLOSNASS, Wi-Fi Access Point, and Iridium® Antenna

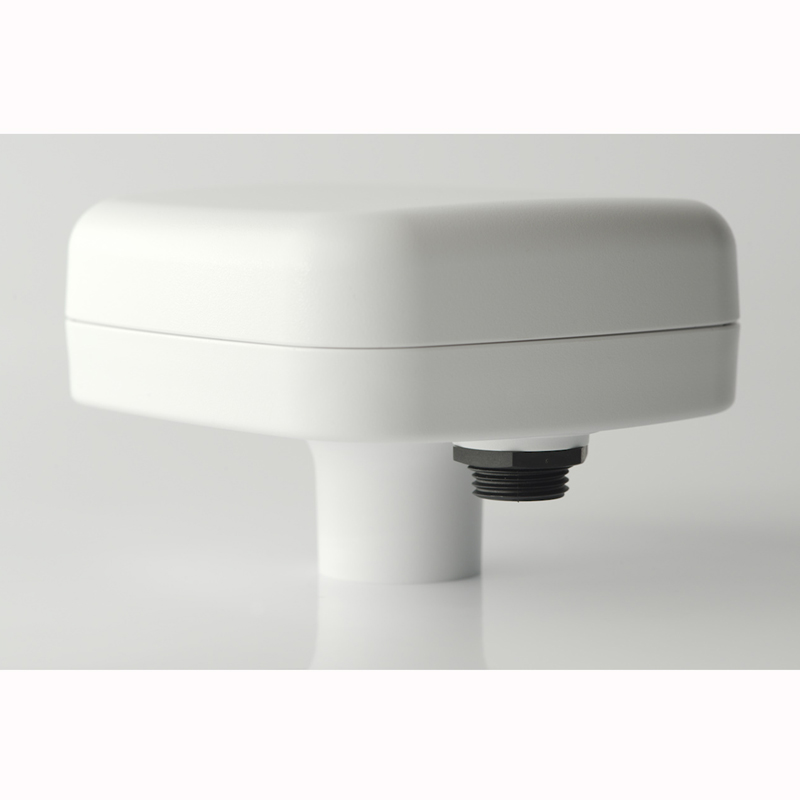

SIRIUS One on white background
Alternate view of SIRIUS One on gray background
Schematics for Polaris Sirius One LRIT and VMS solution
SIRIUS One on white background
Alternate view of SIRIUS One on gray background
Schematics for Polaris Sirius One LRIT and VMS solution

Sirius One


  • Combines Short Burst Data® (SBD®), VMS, & LRIT in One Module
  • Easy Installation
  • Extended Battery for Operation Even Without External Power
  • Internal Temperature Sensors
  • Built in GPS, GLOSNASS, Wi-Fi Access Point, and Iridium® Antenna

As Simple as Tracking Should Be

Robustness, reliability, versatility and low cost were the focus points during the design of this device. Cutting edge low-powered combined GPS and GLONASS enable this solution's enhanced tracking abilities and prolonged operations on battery.


Truly Global LRIT, VMS, and More

As dedicated, standalone LRIT and VMS module, the Sirius One satisfies maritime compliance needs globally, including in A4 regions, and provides a single point of contact for all navigation and communications services via Iridium's truly global network.

  • Fully Self-Contained
  • A durable, IP67-rated, fully self-contained unit combining SBD, VMS, and LRIT
  • Simple Web Interface
  • Easily configure your transceiver, see real-time status' in the dashboard, and receive text messages
  • Easy Installation
  • Just add power for standalone operations, fits directly on a 1”-14 pipe
  • VMS Tracking
  • Polaris Electronics’ web-based tracking system, POLARIStrack, makes it possible to instantly deploy basic, low-cost VMS solutions
  • Compliance
  • Report format complies with LRIT and most VMS demands, customizable reporting format available; Approved by FCC, CE, IEC 60945
  • Internal Temperature Sensor
  • The device features wide range of operating temperatures and a heater for sub-zero charging
  • Event-Driven Reporting (Optional)
  • Power up and down, GPS blocked/unblocked, stored reports
  • Connection Box Add-On
  • Optional connection box provides status LEDs, I/O pins, and more
  • Over-The-Air Configuration

Product Specifications and Certifications

Technical Specifications

Mechanical
Field Label Field Value

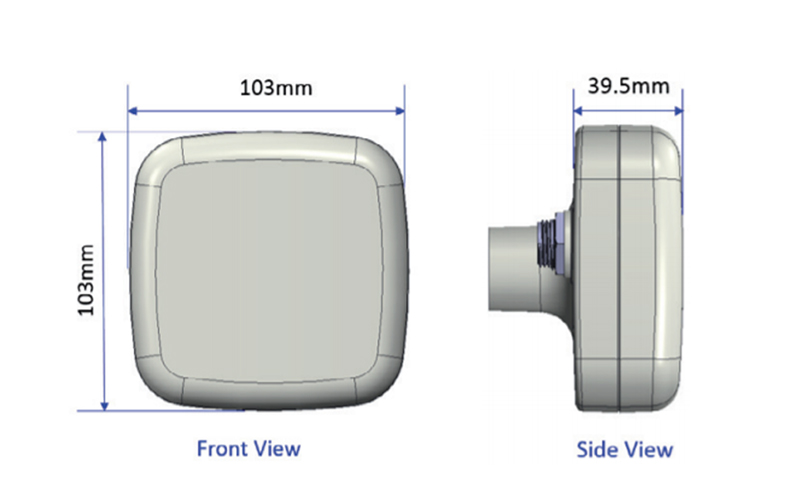

Dimensions ( L x W x H ) 103 x 103 x 39.5 mm
Weight 390 g
Environmental
Field Label Field Value
Operating Temperature Range -25 to +50 ℃
Storage Temperature Range -40 to +80 ℃
Ingress Protection IP67
Wi-Fi
Field Label Field Value
Wi-Fi Enabled Yes
Interface Wi-Fi Access Point, Ethernet, RS232/RS485, USB, IO Pins, CAN-Bus

Certifications

  • FCC
  • CE
  • IEC 60945

Sirius One

As dedicated, standalone LRIT and VMS module, the Sirius One satisfies maritime compliance needs globally, including in A4 regions, and provides a single point of contact for all navigation and communications services via Iridium's truly global network.
