Ioneer-I A19401

Manufacturer : Weatherdock AG

Model : ZL1000

  • Real-Time Tracking and Alerting with Reliable Position Reporting Available 24/7
  • 'Over the Air' Bi-directional Iridium® Communication in Addition to VHF Communication
  • Unlimited Traceability Available for Best Monitoring Results
  • Additional ‘Push-to-Alert’ Button
  • Intelligent Tamper-Proof Solution
Ioneer-I A19401 Product Imagery

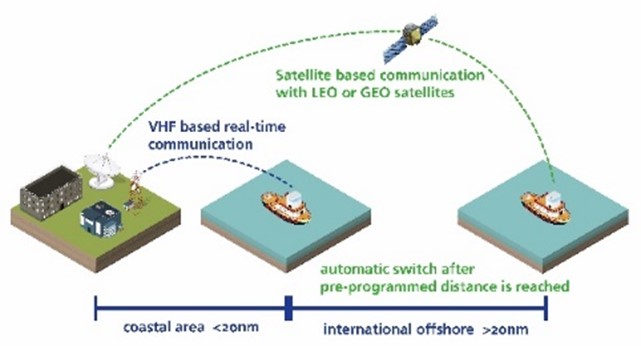

graphic of how the Weatherdock Ioneer device works

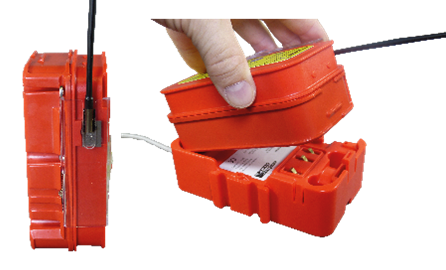

image of weatherdock ioneer charging
Ioneer-I A19401 Product Imagery
graphic of how the Weatherdock Ioneer device works
image of weatherdock ioneer charging

Ioneer-I A19401


Manufacturer : Weatherdock AG

Model : ZL1000

  • Real-Time Tracking and Alerting with Reliable Position Reporting Available 24/7
  • 'Over the Air' Bi-directional Iridium® Communication in Addition to VHF Communication
  • Unlimited Traceability Available for Best Monitoring Results
  • Additional ‘Push-to-Alert’ Button
  • Intelligent Tamper-Proof Solution

Compact and Robust
Maritime Solution

The IONEER-I locator beacon is dedicated to a various number of applications. Whether for persistent position reporting and locating via VFH and/or Iridium®, for bi-directional communication within the Iridium® network or for working as an Iridium® bridge for terminal mobile devices connected via Bluetooth® LE with the IONEER to communicate into the Iridium® network.

The position reporting and locating can be done on regular or customized VHF frequencies to an onshore receiver station, e.g. fishing fleet headquarter for monitoring the fleet vessels. Via the Iridium satellite network the same position reporting can be forwarded to a server-related IP address. It is possible to switch from VFH based reporting to Iridium based reporting depending on the shore distance. In the event with no VFH communication possible, the IONEER switches pre-programmed to Iridium reporting. By means of the bi-directional 2-way-communication via Iridium satellite network it is possible to do a lot of ‘Over the Air’ communication and parameterization. In addition to the position reporting there are more figures and status quo of interest to be read out and broadcasted.

Seawater, oil, UV-light and shock resistance will round off the high quality performance of the IONEER.

Unlimited Traceability

The IONEER system allows persistent locating and monitoring of vessels or other moving objects in all areas via VHF technologies. Compact and robust, the IONEER offers a very high battery lifetime of 200 hours persistent position reporting (within a 5 min interval).

  • Individual Broadcasting
  • The range of terrestrial VFH broadcasting can be pre-defined by software. As soon as a pre-programmed distance from the coastline is overrun, the IONEER unit switches automatically into SAT-Comm
  • Bi-directional Iridium® SAT-Comm
  • ‘Over-The-Air’ communication and parameterization can be done bi-directional: Ship-to-SAT-to-Shore and vice versa
  • Additional ‘Push-to-Alert’ Button
  • By triggering the alert button, additional to the regular position report a standardized maritime emergency message or optional GMDSS message will be sent out to every vessel in the near vicinity
  • Coastal Security and Fleet Management
  • Real-Time-knowledge of ‘who and where’ is critical in administration of coastal fishing fleets and coastal border security issues. By transmitting the unit ID and additional names, identifying is easy
  • Geofencing
  • Using the IONEER programming software the creation of restricted or no-entry zones is possible for best possible monitoring of fleet vessels
  • Bluetooth Functionality
  • Using your smartphone or other terminal mobile device, it is possible to provide key figure status quo of the vessel, e.g. engine temperature or fuel level, and daily fishing reports with the app
  • Route Data Storage
  • The IONEER is ready to store waypoints of thousands of nautical miles for better transparency of areas of activity according to the IUU guidelines
  • Customization
  • The IONEER unit can be individualized by means of pre-programming additional data e.g. ship name, type of vessel and area of activity into the unit for transmission
  • Intelligent Tamper-proof Solution
  • If the unit is stolen or tampered, a special information message is sent to the shore based receiver station and via Iridium® to the dedicated IP server address
  • Various Power Supply Solutions
  • Charge your device via the Li-Ion battery charging station, using a fixed solution like a vessel generator / battery, or utilize the solar panel for charging

Product Specifications and Certifications

Technical Specifications

Ioneer-I A19401
Mechanical
Dimensions (L x W x H) 130mm x 70mm x 30mm
Weight 380 g
Ioneer-I A19401
Environmental
Operating Temperature Range -10 to +55 ℃
Storage Temperature Range -30 to +70 ℃
Ingress Protection IP67
Ioneer-I A19401
Network
Additional Networks Global Navigation System, VHF-based AIS connectivity, Bluetooth LE Connectivity to App Up to 20m Range

Certifications

  • CE
  • Iridium Approved
  •  IEC 62287-1
  • IEC 61097-14
  • IEC 60945
  • ITU-R M.1371-5
  • IMO Res. MSC.246(83)
  • IEC 61108-1

Ioneer-I A19401

The IONEER system allows persistent locating and monitoring of vessels or other moving objects in all areas via VHF technologies. Compact and robust, the IONEER offers a very high battery lifetime of 200 hours persistent position reporting (within a 5 min interval).
