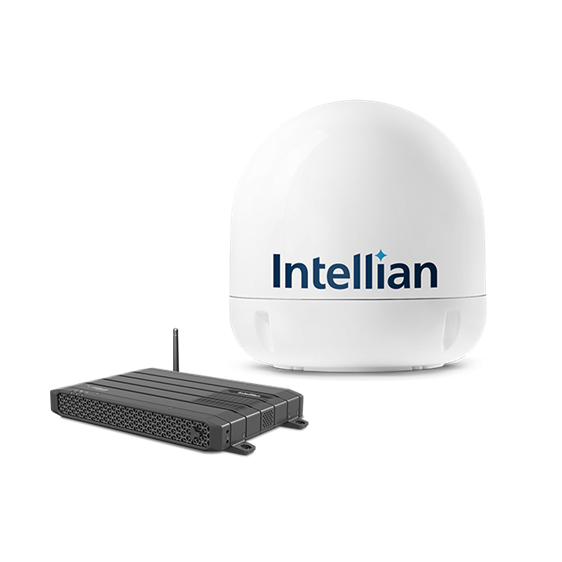

Intellian C700 Winterized Maritime Terminal

  • Designed for the extreme environments of harsh cold-weather regions

  • Enhanced global operability in cold climates, down to -50°C or -67°F

  • Easy installation & simple configuration

  • Reliable solid-state technology

  • Designed for 10-year operational lifetime

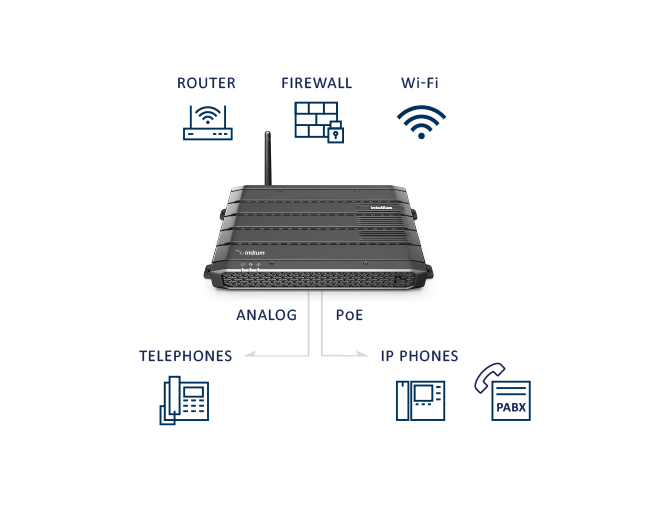

Intellian C700 how it works
Intellian C700 how it works

Intellian C700 Winterized Maritime Terminal


  • Designed for the extreme environments of harsh cold-weather regions

  • Enhanced global operability in cold climates, down to -50°C or -67°F

  • Easy installation & simple configuration

  • Reliable solid-state technology

  • Designed for 10-year operational lifetime

Delivering Iridium Certus® Broadband for Maritime in Extreme Low Temperature Conditions

The C700 enables a variety of applications including safety, bridge and crew welfare communications, Connected Ship IoT capabilities like engine monitoring and remote diagnostics, as well as situational awareness reports. Intellian C700 terminals are optimized as VSAT companion devices.

Key Features

Designed to provide the fast L-band broadband service, the C700 delivers up to 352 kbps transmit and 704 kbps receive speeds–protected by a built-in firewall for cyber secure connections. Its 12-element patch technology also ensures reliable connectivity, even in adverse weather or environments.

  • Cold Weather Resilience
  • Designed for extreme low temperature conditions, like the polar regions. (ADU operating temp. –50°C – + 55°C)

  • Antenna
  • Powerful twelve (12) element patch phased-array antenna, plus H2 antenna amplifier for 352 kbps uplink service guarantees reliable and high throughput even in rough seas

  • Easy to Install
  • Easy installation and simple configuration to get service started quickly; Rack mount version available

  • Power-over-Ethernet (PoE)
  • Built-in Power-over-Ethernet (PoE) for powering IP devices like SIP phones, cameras, Wireless Access Points, etc.

  • No Moving Parts
  • Reliable solid-state technology for reliable connectivity anywhere in the world

  • Maritime Safety
  • GMDSS-capable; will support Iridium® GMDSS over Iridium Certus when available

  • Simultaneous Functionality
  • Three (3) high-quality voice lines with soft PBX function; built-in router and Wi-Fi supporting multiple users

  • Integration
  • Supports up to sixteen (16) SIP Phones, two (2) Analog Phones, 4-Port Ethernet (LAN) PoE, and WAN

  • Failover
  • Built-in WAN for least-cost routing of data traffic via 3G/LTE

  • Long Operational Lifetime
  • Designed for a 10-Year minimum operational lifetime and comes with a three (3) year global warranty (parts and labor)

Product Specifications and Certifications

Technical Specifications

Mechanical
Dimensions ( H x Ø ) 700mm x 720mm
Weight 2100 g
Iridium Embedded Technology Iridium Certus 9810 Module
Environmental
Operating Temperature Range ADU: -50 to +55; BDU: -15° to +55 ℃
Operating Humidity Range ≥95 % RH
Durability Standard IEC60068-2-27 (Operation) IEC60721-3-6 Class 6M3 (Survival)
Ingress Protection ADU: IP56, BDU: IP31
Vibration Standard IEC60945 (Operation), IEC60721-3-6 Class 6M3 (Survival)
Antenna
Antenna Design 12-patch Phased Array Antenna Design
RF Interface
Frequency Range 1616 to 1626.5 MHz
Power
Input Voltage Range 10.8 – 30 V DC
Maximal Power 120 W
Network
Additional Networks 3G/4G/LTE WAN Port
Telephony Up to Three (3) High-Quality Voice Lines
Data Speeds
Data Speed Uplink (UL) 352 Kbps
Data Speed Downlink (DL) 704 Kbps
Wi-Fi
Wi-Fi Enabled Yes
Interface 802.11 b/g

Certifications

  • CE
  • RED
  • FCC
  • RMRS
