BlueTraker® SSAS
Services: Iridium Short Burst Data® (SBD®)
-
Failsafe Way of Alerting a Flag Operator/Professional SSAS Management of a Vessel in Distress
-
‘Return Link’ Acknowledgment Message Confirming a Distress Message has been Received
-
SOLAS Security Alert or Day-to-day Tracking
-
Designed for Harsh Maritime Environments
-
Two (2) or More Security Buttons
BlueTraker® SSAS
Manufacturer : EMA D.O.O.
Model : BlueTraker® SSAS
Services: Iridium Short Burst Data® (SBD®)
-
Failsafe Way of Alerting a Flag Operator/Professional SSAS Management of a Vessel in Distress
-
‘Return Link’ Acknowledgment Message Confirming a Distress Message has been Received
-
SOLAS Security Alert or Day-to-day Tracking
-
Designed for Harsh Maritime Environments
-
Two (2) or More Security Buttons

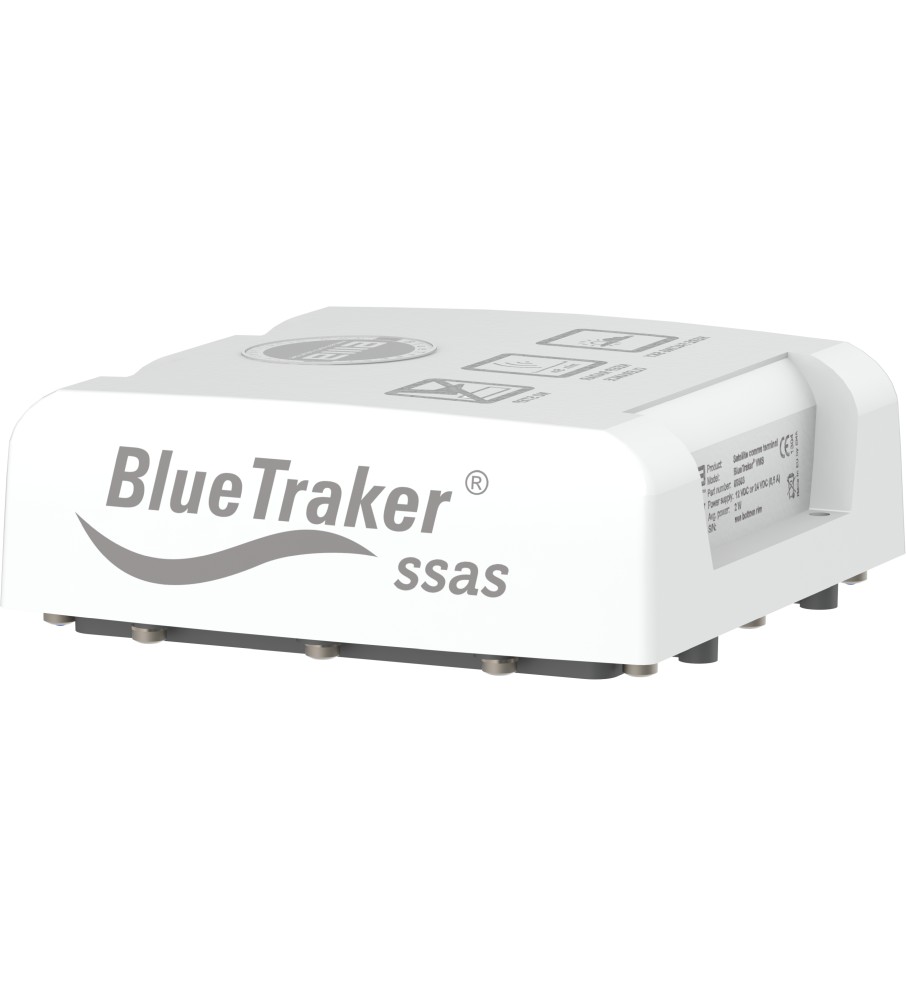

BlueTraker SSAS Transponder
BlueTraker SSAS transponder is a satellite communication terminal that provides a failsafe way of alerting a flag operator/professional SSAS management and monitoring services to a vessel in distress. In addition to satisfying the SOLAS security alert requirements, the BlueTraker SSAS transponder can be used for day-to-day tracking purposes. A ship’s position can be monitored by a service provider’s web-tracking site offering additional value for the flag operator.
Features
“The BlueTraker SSAS terminal is a self-contained unit with pre-programmed tracking and security alerting functionalities. The unique double-shell housing with a ventilated layer between the two shells gives it an added protection against low temperatures and winds.
- Tracking and Alert Messaging
-
In addition to satisfying the SOLAS security alert requirements, BlueTraker SSAS terminal can be used for day-to-day tracking purposes using service provider’s web tracking site
- Requirements
-
Onboard security alert systems are governed by various internationally agreed rules and regulations as promulgated by the International Maritime Organisation (IMO), Maritime Safety Committee (MSC)
- Pole to Pole Coverage
-
To be able to navigate through A4 Sea area it is crucial to have equipment that has been specifically engineered to withstand the harsh weather conditions experienced in this inhospitable environment
- Two (2) Security Buttons
-
Two security buttons to sound the alarm in case of an emergency situation
Product Specifications and Certifications
| Mechanical | |
|---|---|
| Dimensions (L x W x H) | 67mm x 198mm x 198mm |
| Volume | 2800 cc |
| Weight | 1100 g |
| Iridium Embedded Technology | Iridium 9602 Module |
| Environmental | |
| Operating Temperature Range | IEC 60945:2002: -25°C to +55°C (Exposed Part), -15°C to +55°C (Protected part); MIL-STD-810G: -40°C to +85°C (Protected Part) ℃ |
| Operating Humidity Range | 10 to 100 % RH |
| Storage Temperature Range | -25 to +70 ℃ |
| Durability Standard | IEC 60945:2002; MIL-STD-810G |
| Ingress Protection | IP68 (Depth 6 m, Duration 30 min.) According to IEC 60529 (Exposed Part) |
| Vibration Standard | IEC 60945:2002 |
| Antenna | |
| Antenna Design | Integrated, Non-removable Antennas |
| GPS | |
| Accuracy, Positional | 2.5 m |
| Accuracy, Velocity | 0.1 m/s |
| Accuracy, Timing | 10 ns |
| GPS TTFF | <35 s |
| Operational Limits, Altitude | 18000 m |
| Operational Limits, Velocity | 515 m/s |
| Battery | |
| Capacity | 5300 mAh |
| Battery Life, Talk Time | 72 hr |
| Charge Time | 8 hr |
| Power | |
| Input Voltage Range | 9V DC to 36 V DC |
| Maximal Current | 500 mA |
| Maximal Power | 5 W |
Fully Approved and Certified
The BlueTraker SSAS terminal is fully compliant with the laws and regulations covering Ship Security And Alert System. All BlueTraker terminals are IEC 60945 certified and comply with IP68/IP69K. The terminals have been designed to comply with the highest security & safety requirements expected of the customers, making the installation as tamper-proof as possible.
Compliance Approvals, Certifications, & Standards
- Russian Maritime Register of Shipping Type Approval
- DNV GL Type Approval
- Iridium Compliance Certificate
- US Coast Guard Letter of Compliance
- Compliant with Related EU Directives”
- IEC 60945:2002 – Maritime Electronic Navigation and Communication Equipment and Systems
- IEC 60529/IP68 – Water and Dust Ingress Protection;
- IEC 60950-22 – Information Technology Equipment – Safety – Part 22: Equipment to be Installed Outdoors
- ISO 7367-2 – Electrical Transients Along Supply Lines – Load Dump
- ISO 16750-2 – Environmental Conditions and Testing for Electrical and Electronic Equipment – Part Two; Electrical Loads – Load Dump
