BlueTraker® SSAS Arctic
Services: Iridium Short Burst Data® (SBD®)
-
Failsafe Way of Alerting a Flag Operator/Professional SSAS Management of a Vessel in Distress
-
‘Return Link’ Acknowledgment Message Confirming a Distress Message has been Received
-
SOLAS Security Alert or Day-to-day Tracking
-
Designed for Harsh Maritime Environments, Even in the Polar Regions (– 50°C)
-
Two or More Security Buttons
BlueTraker® SSAS Arctic
Manufacturer : EMA D.O.O.
Model : BlueTraker® SSAS Arctic
Services: Iridium Short Burst Data® (SBD®)
-
Failsafe Way of Alerting a Flag Operator/Professional SSAS Management of a Vessel in Distress
-
‘Return Link’ Acknowledgment Message Confirming a Distress Message has been Received
-
SOLAS Security Alert or Day-to-day Tracking
-
Designed for Harsh Maritime Environments, Even in the Polar Regions (– 50°C)
-
Two or More Security Buttons

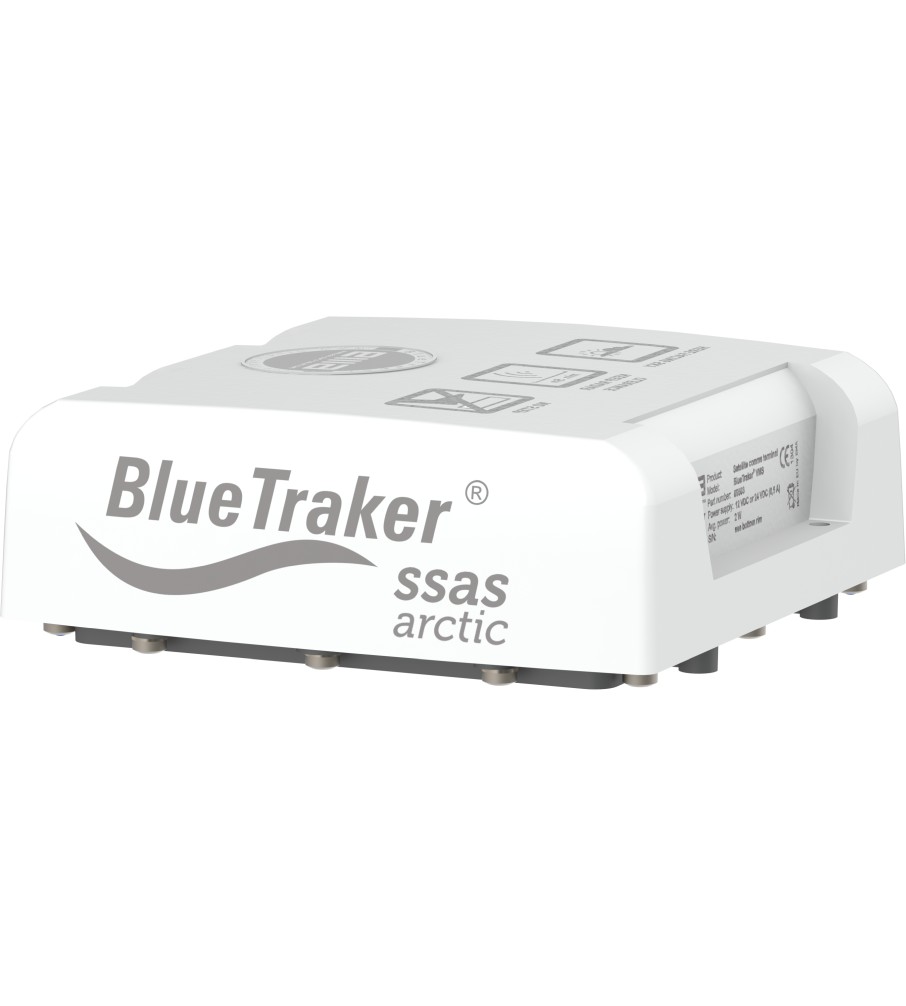

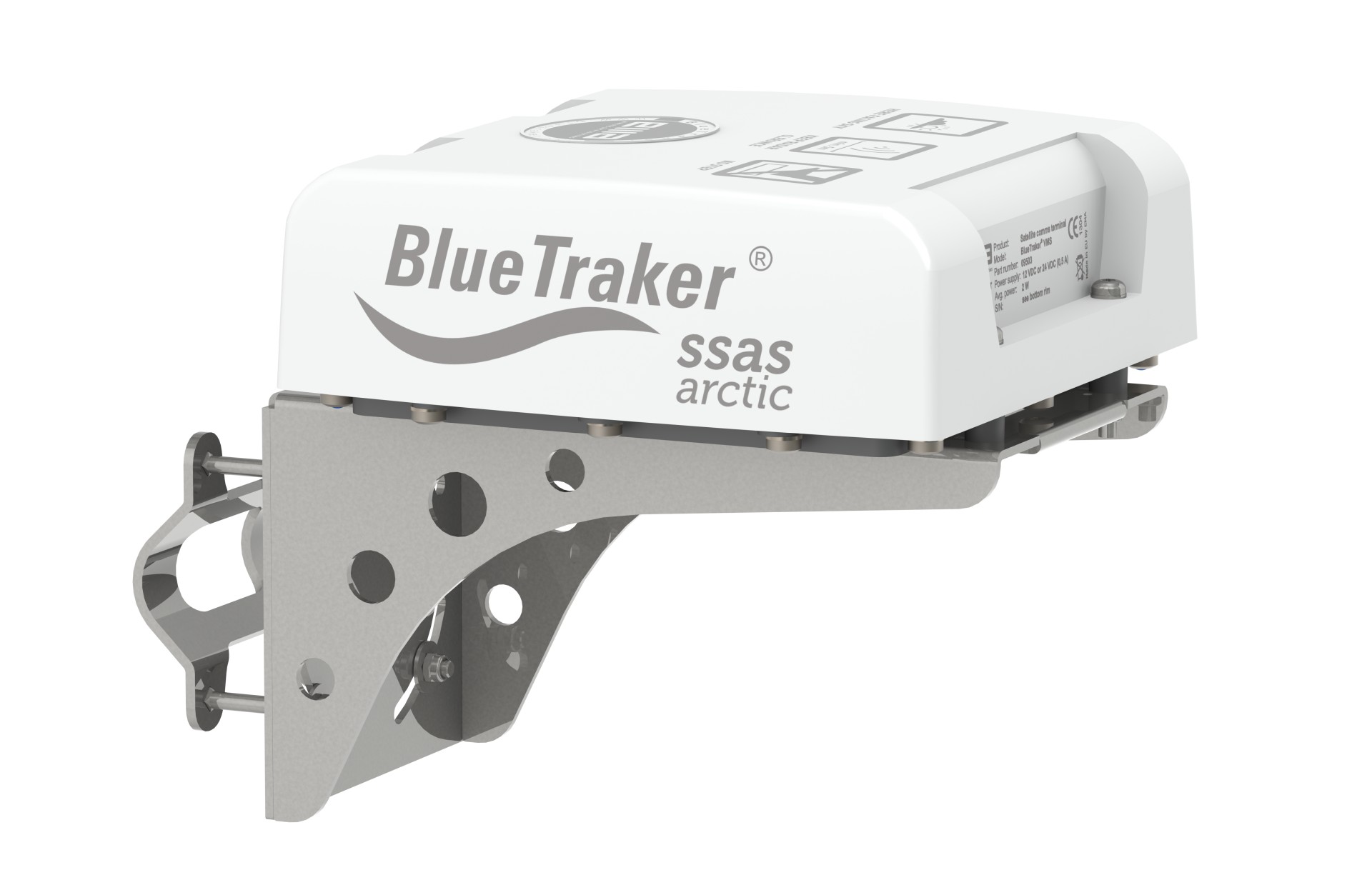

BlueTraker SSAS
Arctic Transponder
BlueTraker SSAS transponder is a satellite communication terminal that provides a failsafe way of alerting a flag operator/professional SSAS management and monitoring services to a vessel in distress. In addition to satisfying the SOLAS security alert requirements, the BlueTraker SSAS transponder can be used for day-to-day tracking purposes. A ship's position can be monitored by a service provider's web-tracking site offering additional value for the flag operator.
To survive severe Arctic conditions a distributed web of heating elements throughout the electronic circuitry keeps the terminal operational down to minus 50°C. Additionally, device can cold start from temperatures down from -50°C! All electronic and mechanical components are specifically selected for low temperature operation!
Features
A SSAS terminal capable of withstanding the extreme cold of Polar Regions, including Sea area A4. Terminal's unique double shell housing resists accelerated cooling in harsh environments. Its smart engineering allows operation and even cold start at temperatures as low as -50°C!
- Tracking and Alert Messaging
- In addition to satisfying the SOLAS security alert requirements, BlueTraker SSAS terminal can be used for day-to-day tracking purposes using service provider’s web tracking site
- Ready to Operate in ARCTIC Areas
- Terminal's unique double shell housing resists accelerated cooling in harsh environments. Its smart engineering allows operation and even cold start at temperatures as low as -50°C
- Requirements
- Onboard security alert systems are governed by various internationally agreed rules and regulations as promulgated by the International Maritime Organisation (IMO), Maritime Safety Committee (MSC)
- Two Security Buttons
- Two security buttons to sound the alarm in case of an emergency situation
- Pole to Pole Coverage
- To be able to navigate through A4 Sea area it is crucial to have equipment that has been specifically engineered to withstand the harsh weather conditions experienced in this inhospitable environment
Product Specifications and Certifications
| Mechanical | |
|---|---|
| Dimensions (L x W x H) | 67mm x 198mm x 198mm |
| Volume | 2800 cc |
| Weight | 1100 g |
| Iridium Embedded Technology | Iridium 9602 Module |
| Environmental | |
| Operating Temperature Range | IEC 60945:2002: -50°C to +55°C (Exposed Part), -15°C to +55°C (Protected Part) ℃ |
| Operating Humidity Range | 10 to 100 % RH |
| Storage Temperature Range | -25 to +70 ℃ |
| Durability Standard | IEC 60945:2002 |
| Ingress Protection | IP68 (Depth 6 m, Duration 30 min.) According to IEC 60529 (Exposed Part) |
| Vibration Standard | IEC 60945:2002 |
| Antenna | |
| Antenna Design | Integrated, non-removable antennas |
| GPS | |
| Accuracy, Positional | 2.5 m |
| Accuracy, Velocity | 0.1 m/s |
| Accuracy, Timing | 10 ns |
| GPS TTFF | <35 s |
| Operational Limits, Altitude | 18000 m |
| Operational Limits, Velocity | 515 m/s |
| Battery | |
| Capacity | 5300 mAh |
| Battery Life, Talk Time | 72 hr |
| Charge Time | 8 hr |
| Power | |
| Power Supply | 24V DC, 1A / Arctic Version |
| Input Voltage Range | 9 to 36 V DC, 0.5A Max |
| Maximal Current | 1000 mA |
| Maximal Power | 20 W |
Fully Approved and Certified
The BlueTraker SSAS Arctic terminal is fully compliant with the laws and regulations covering Ship Security And Alert System. All BlueTraker terminals are IEC 60945 certified and comply with IP68/IP69K. The terminals have been designed to comply with the highest security & safety requirements expected of the customers, making the installation as tamper-proof as possible.
Compliance Approvals, Certifications, & Standards
- Russian Maritime Register of Shipping Type Approval
- DNV GL Type Approval
- Iridium Compliance Certificate
- US Coast Guard Letter of Compliance
- Compliant with Related EU Directives”
- IEC 60945:2002 – Maritime Electronic Navigation and Communication Equipment and Systems
- IEC 60529/IP68 – Water and Dust Ingress Protection
- IEC 60950-22 – Information Technology equipment – Safety – Part 22: Equipment to be Installed Outdoors
- IEC 60068-2-1 – Low Temperature Functional Test
- ISO 7367-2 – Electrical Transients Along Supply Lines – Load Dump
- ISO 16750-2 – Environmental Conditions and Testing for Electrical and Electronic Equipment – Part Two; Electrical Loads – Load Dump
