Telespazio TPZ-AIR100
Manufacturer : Telespazio SPA
Model : TPZ-AIR100
-
Easy Installation | Ready To Use
-
Control Your UAV From Anywhere
-
IP Connectivity
-
Accurate Tracking (GNSS)
-
C2, Telemetry & Payload
Plug & Play

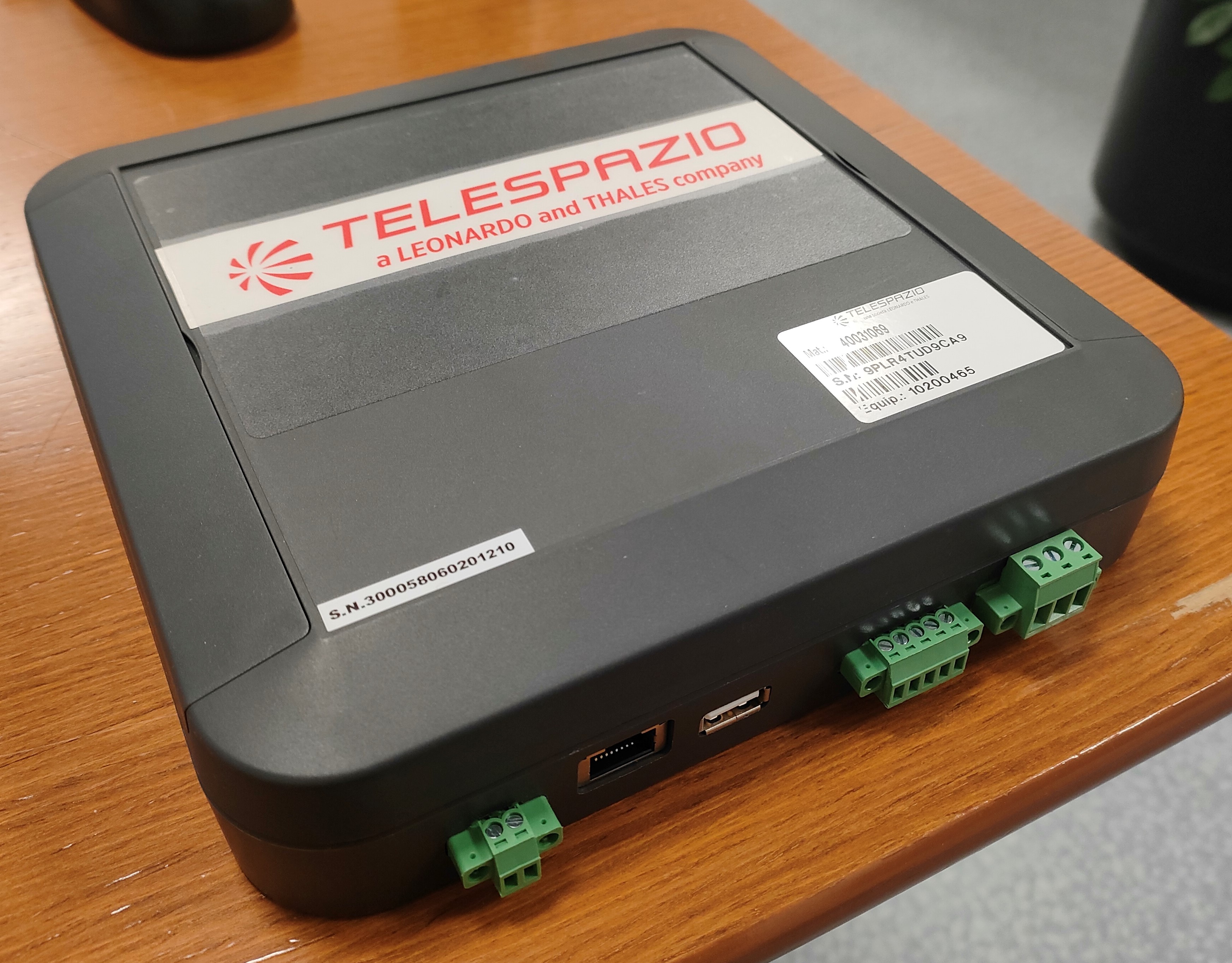

The TPZ-Air100 provides flexible, low-latency Beyond Radio Line Of Sight (BRLOS) capability to UAVs and light aircraft. Once installed on your UAV–and after fixing the external satellite antenna–this Iridium Connected® terminal is ready to work.
With extremely reliable connectivity, lightweight design, and the ability to use any customized app on the computing module, the terminal’s purposes are virtually unlimited.
Telespazio also offers TPZCloud: a digital platform empowering you to exploit any drone feature–from position tracking to data analysis and more.
TPZ-Air100 Features
- Satellite & Terrestrial Communications
-
LTE, Wi-Fi, Bluetooth, LoRaWAN
- Connection Speeds
-
88Kbps Download | 22Kbps Upload
- Computer
-
Single Board with 16GB SD Memory
- Operating System
-
Linux-Based OS | Generous Computation & Memory Resources | Intelligent Functions like Rule-Based Routing Between Networks
- Design
-
Ruggedized Shell | Electronic Components Designed for Avionic Environment
Product Specifications and Certifications
| Mechanical | |
|---|---|
| Iridium Embedded Technology | Iridium Certus 9770 Module |
| General | |
| Size / Dimensions | 220 x 200 x 45mm |
| Weight | 900g |
| Ingress Protection | IP54 |
| Operating Temperature | -40°C to 70°C |
| Power Supply | 9-36 VDC |
| Data Speed | Upload: up to 22Kbps; Download: up to 88Kbps |
- Iridium
- FCC
- CE
- RED
