SmartCover Utility Infrastructure Monitoring System

Manufacturer : SmartCover®

Model : 2301, Part Number: ANT-ED Model Number: 2030, Part Number: ANT-EQ

  • System Allows Utility Operators to Predict and Prevent Overflows
  • Intelligent Sensor Attached to Essential City Infrastructure
  • Ultrasonic an Pressure Readings Transmitted via the Iridium® Satellite Network to Encrypted Servers
  • Data Analysis and Report Compilation Capabilities
  • On-line Access to Advise Utility Operators
SmartCover Utility Infrastructure Monitoring System Product Image

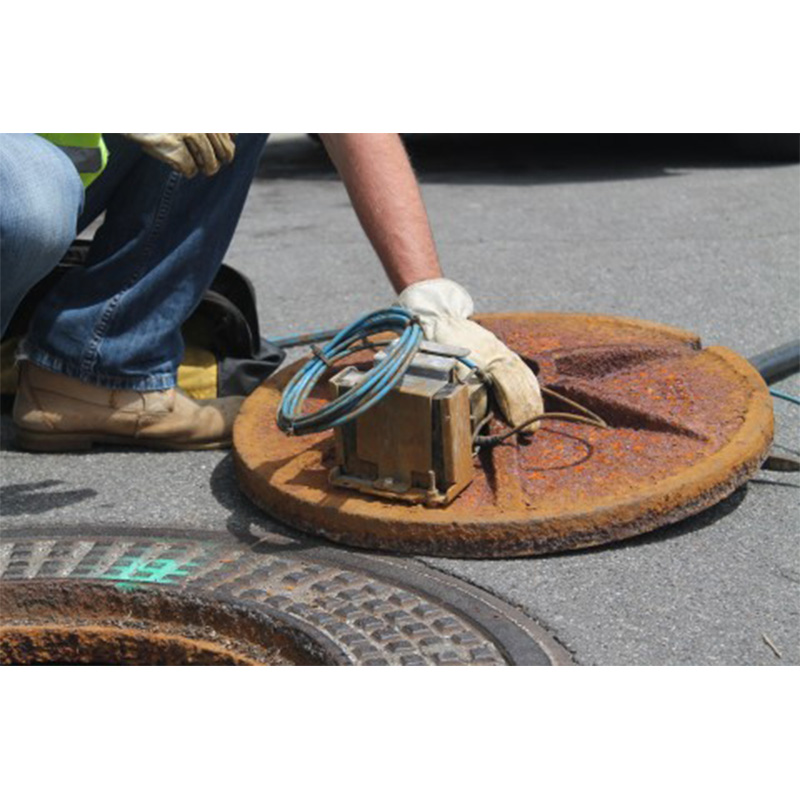

Image of SmartCover Monitoring System in Use
Rendering of Smart Cover Monitoring System

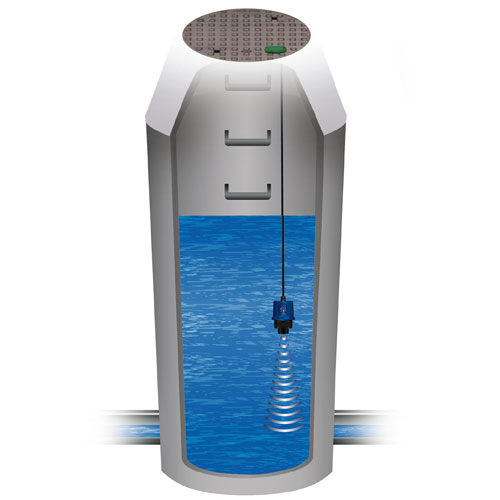

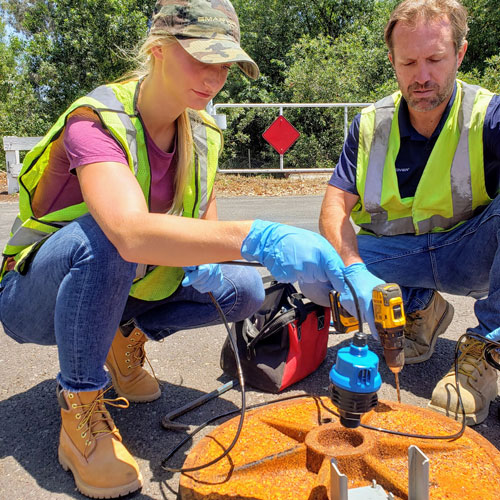

Smartcover Manhole with Subsonic Sensor 01-28-21 SmartCover Lifestyle Shot 1 SmartCover Utility Infrastructure Monitoring System Product Image

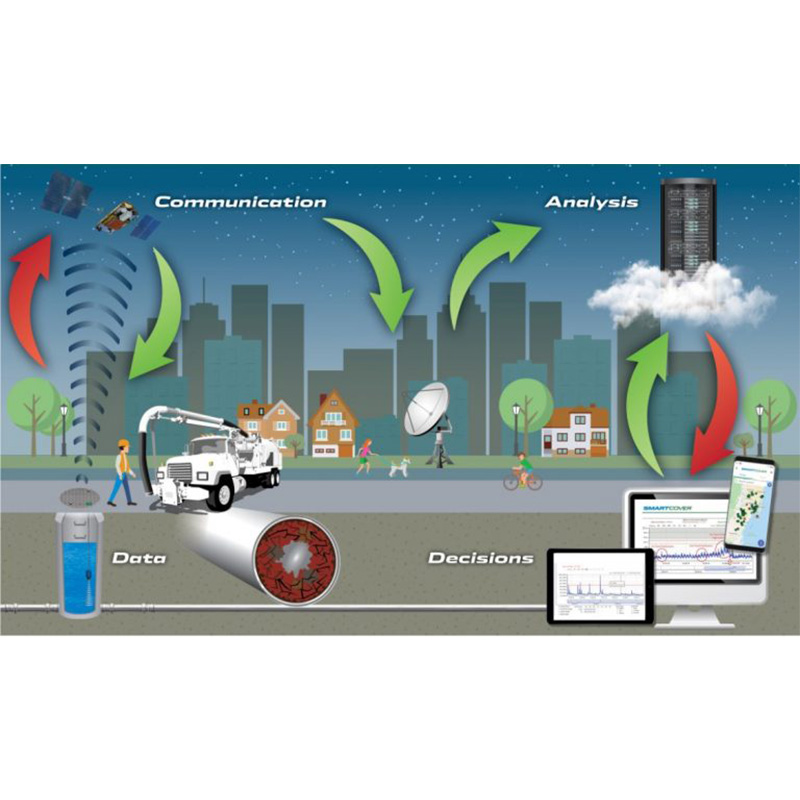

Diagram of how SmartCover Systems Work
SmartCover Utility Infrastructure Monitoring System Product Image
Image of SmartCover Monitoring System in Use
Rendering of Smart Cover Monitoring System
Smartcover Manhole with Subsonic Sensor 01-28-21 SmartCover Lifestyle Shot 1 SmartCover Utility Infrastructure Monitoring System Product Image

SmartCover Utility Infrastructure Monitoring System


Manufacturer : SmartCover®

Model : 2301, Part Number: ANT-ED Model Number: 2030, Part Number: ANT-EQ

  • System Allows Utility Operators to Predict and Prevent Overflows
  • Intelligent Sensor Attached to Essential City Infrastructure
  • Ultrasonic an Pressure Readings Transmitted via the Iridium® Satellite Network to Encrypted Servers
  • Data Analysis and Report Compilation Capabilities
  • On-line Access to Advise Utility Operators

Protect Communities
and Ensure Compliance

The SmartCover system allows utility operators to predict and prevent overflows, monitor H2S levels and detect infrastructure entry. Starting from an intelligent sensor attached to essential city infrastructure, the powerful combination of ultrasonic and pressure readings are transmitted via the Iridium satellite network to encrypted servers for data analysis. Reports are compiled and accessed online or through a mobile app to advise utility operators of impending overflows, H2S levels and infrastructure entry.

High Value, Data-Driven Solutions

SmartCover has Smart Sewer tools and features that give operators in-depth insights into their collection system.

  • No Entry Space Requirements
  • SmartCover sensors are installed without any confined space entry requirements which speeds up the installation process and keeps workers safe
  • Data Transmission of Real-Time Condition
  • Software is the main interface for utilities to have visibility and the ability to assess the condition of the collection system at any point in time
  • Monitor a Wide Range of Systems
  • The software platform is capable of monitoring for a wide variety of collection system challenges, including preventing sewer spills and blockages, pinpointing I&I and alerting operations to security
  • Analysis Done-for-you
  • Visually appealing dashboard shows reports that don’t require data analytics
  • Software Updates
  • Automatic software updates assures no data loss
  • Minimal Power Requirements
  • Intuitive Web-Based Interface & Dashboar
  • Easily Attaches to Infrastructure
  • Mobile Application for iOS & Android

Product Specifications and Certifications

Technical Specifications

SmartCover Utility Infrastructure Monitoring System
Mechanical
Dimensions (L x W x H) 139.7mm x 144.8mm x 124.5mm
Weight 2310 g
SmartCover Utility Infrastructure Monitoring System
Environmental
Operating Temperature Range -10 to 60 ℃
Ingress Protection IP68
SmartCover Utility Infrastructure Monitoring System
RF Interface
Frequency Range 1616 to 1626.5 MHz
SmartCover Utility Infrastructure Monitoring System
Power
Power Supply 3.6 VDC PowerPack™

Certifications

  • US/FCC Regulations: 47 CFR Part 15, Subpart B
  • Canada: ICES-003 Issue 6, 2016
  • US/FCC Regulations: 47 CFR Part 25, FCC ID: Q639603N (Radio)
  • US/FCC Regulations: 47 CFR Part 15B, FCC ID: Q639603N (Radio)
  • Canada: Certified under RSS-170 of the Canadian Radio Sstandards as IC: 4629A 9603N (Radio)

SmartCover Utility Infrastructure Monitoring System

SmartCover has Smart Sewer tools and features that give operators in-depth insights into their collection system.
