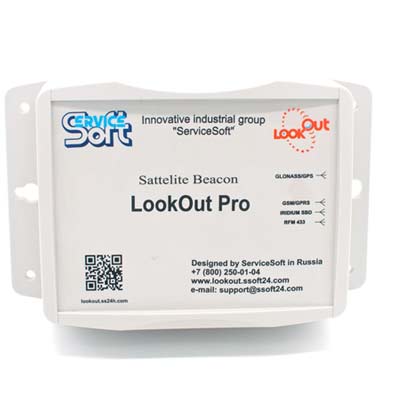

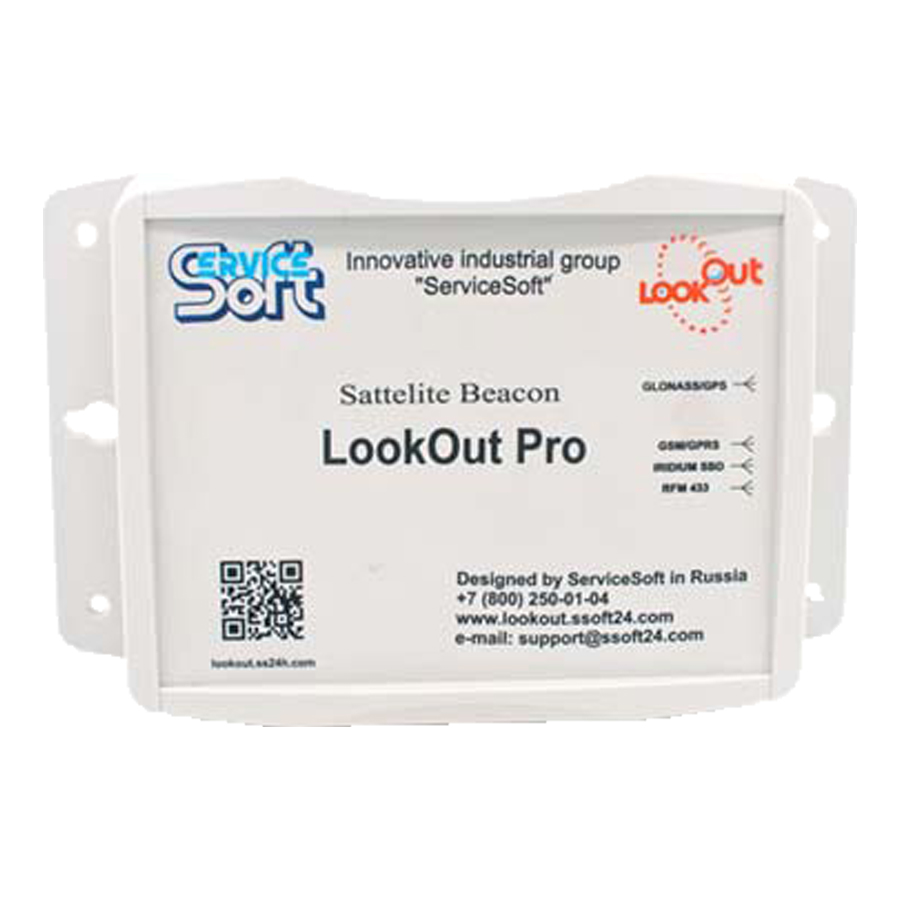

Service Soft - LookOut Pro

By : Service Soft OOO | Model :

  • Easy to Install & Use
  • Global Tracker of the Vessel Navigation Data (Location, Course & Speed)
  • Budget-friendly IoT Data Transmission Device
  • Additional GSM Channel & Ability to Connect Any Sensors Via Digital (RS422, RS485), Analog & Discrete Interfaces
  • Enclosure Protection Level is IP67
  • Transportation Conditions Monitoring via External Wireless Sensors
  • Convenient Mounting on Metal Surfaces by Supply Inbuilt Magnet

Lookout Satellite Beacon is a device that is designed to determine the coordinates of the location of a moving object (Transport / Equipment / Cargo) anywhere in the world & process parameters with subsequent data transfer via GSM /Iridium Channel. Also, in order to save energy, the product is able to archive & communicate at the appointed time for data transfer.

In conjunction with the Lookout Product, the user gets access to an internet service with which he can track his current location, as well as see the route for the selected time intervals & technological parameters.

Lookout Satellite Beacon can be installed on any moving object: Cars, Railway, Sea And River Transport, Construction Equipment, etc.


Features

  • Easy to Install & Use
  • Convenient Mounting On Metal Surfaces by Supply Inbuilt Magnet
  • Transportation Conditions Monitoring via External Wireless Sensors
  •

Benefits

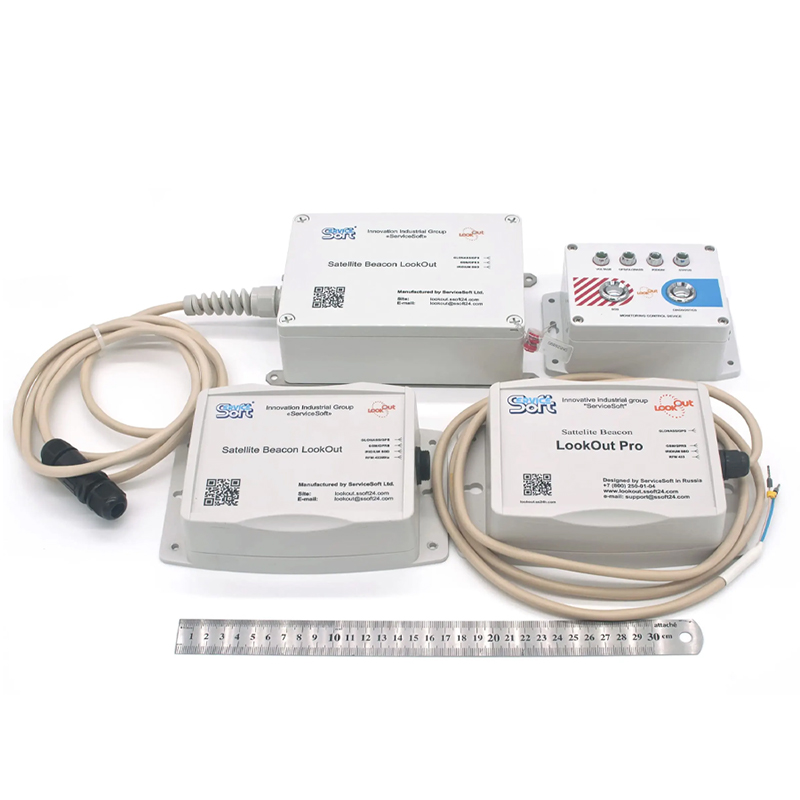

3 Modifications of LookOut Satellite Beacon:

Pro Self-Powered: Iridium SBD / GSM Data Transmission. Dustproof Housing with IP67 Protection, Up to 3 Years of Independent Operation without External Power Supply.

Pro Marine 2.0: Iridium SBD / GSM Data Transmission. Dustproof Housing with IP67 Protection. Wired Sensors Connection. “Victoria” Data Monitoring Service Approved.

Pro EPS: Iridium SBD / GSM Data Transmission. Connection of External Wireless, Autonomous Sensors:

  • Fuel Level (FLS, mm)
  • Temperature & Humidity (° C)
  • Panic Button (SOS)
  • Tamper Sensor (Autonomous)
  • Shock Sensor (G)

Technical Specifications

Dimensions 192 х 129 х 52 mm
Weight 1 kg with Batteries
Battery Type Lithium, АА Type – 12 pcs
Enclosure Rating IP67
Operating Temperature Range -40°С tо +60°С
Communication Channels Iridium, GSM


Compliance
Satellite Beacon (Satellite Tracker) Lookout has passed tests for compliance with the requirements of the Technical Regulations of the Customs Union. It has a Declaration of Conformity of the Customs Union, which confirms the Quality of the Manufactured Product “LookOut” with the requirements of Technical Regulations.

Certificate
Also, Satellite Lighthouse (Satellite Tracker) Lookout has a Voluntary Certificate of Compliance with GOST R Established Quality Standards.
