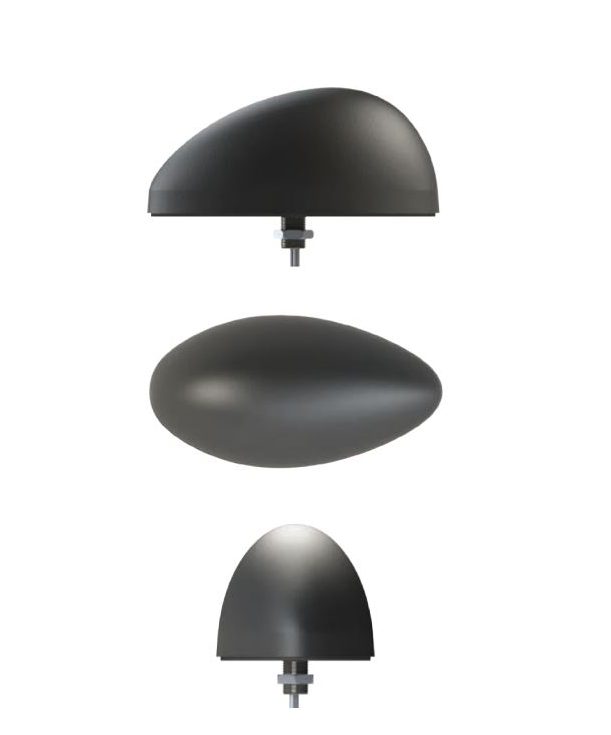

Multiple Viewpoints of Maxtena SATFLEET antenna
Maxtena SATFLEET antenna Specs
Maxtena SATFLEET antenna on white background
Multiple Viewpoints of Maxtena SATFLEET antenna

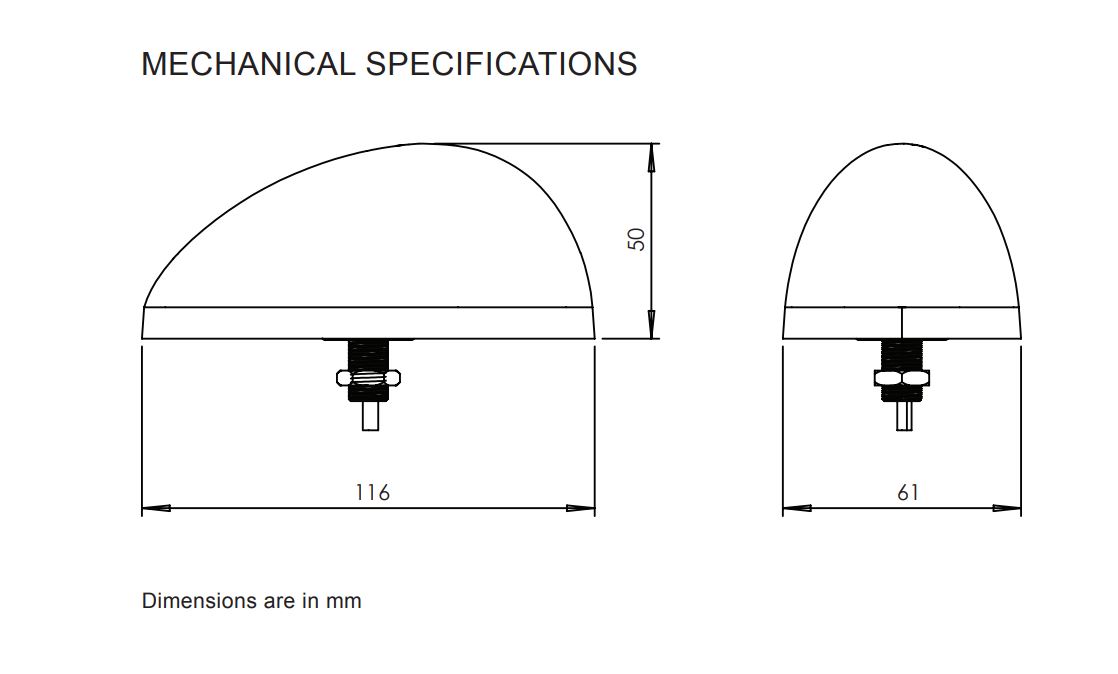

Maxtena SATFLEET antenna Specs

SATFleet


Manufacturer : Maxtena, Inc.

  • Superior Voice and Data Performance
  • Iridium Ground Plane Independent
  • Hight Performance Helix Iridium® Antenna
  • Active GPS Antenna
  • Low Weight, Compact Form Factor

High Performance,
Compact Form Factor

SATFleet is designed for reliable Iridium® network Short Burst Data® (SBD®) application and provides superior call/voice quality. This antenna is the ideal solution for the most extreme and demanding applications where reliable satellite reception and high accuracy are required; the SATFleet provides outstanding performance for any telematics and fleet management application. Among other uses, the antenna can be used to boost the performance of the Iridium handsets.

Two Antennas, One Compact Housing

Maxtena’s SATFleet Iridium/GPS fleet solution consists of two separate high performance antennas in one compact and secure housing: one helix Iridium enabling Voice and Data and one high gain active GPS antenna.

  • Small Size, Low Profile
  • By leveraging techniques in antenna miniaturization perfected in other products, the SATFleet provides maximum performance in one of the most compact, easy to install form factors
  • Easy Installation
  • The low profile SATFleet is a screw mount antenna with a rugged IP67 rated housing
  • All-Weather
  • Ideal for the most demanding environmental challenges, can withstand extreme temperatures and weather

Product Specifications and Certifications

Technical Specifications

Mechanical
Field Label Field Value
Dimensions ( L x W x H ) 116 x 61 x 50 mm
Weight 117 g
Environmental
Field Label Field Value
Operating Temperature Range -40 to +85 ℃
Ingress Protection IP67 and UV Stable
Antenna
Field Label Field Value
Type Passive Iridium Antenna
Polarization RHCP
Maximum Gain 1.5 dBi
Beam Width 120°
RF Interface
Field Label Field Value
Frequency Range 1621 MHz

Certifications

  • Iridium Certified
