MPA-D254-1621 Passive Microstrip Antenna

Manufacturer : Maxtena, Inc.

Model : MPA-D254-1621

  • Compact Size and Lightweight Features
  • Custom Tuning Capabilities
  • U.FL Connector or Other

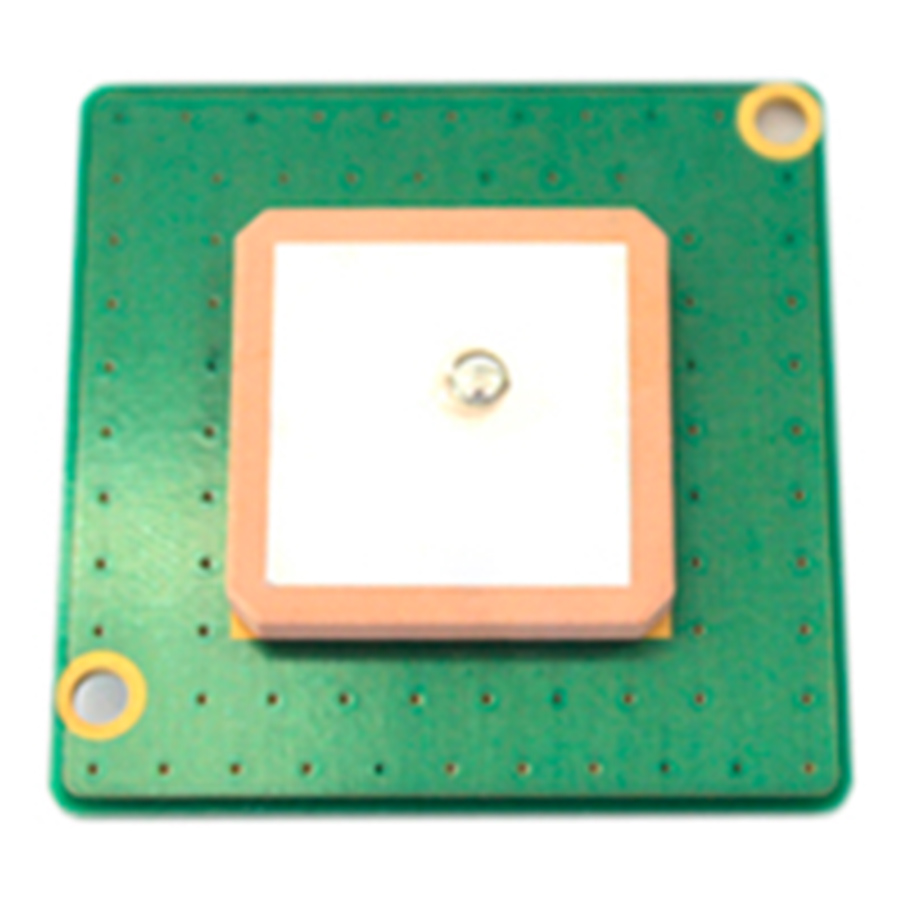

Maxtena MPA-D254-1621 Antenna on white background

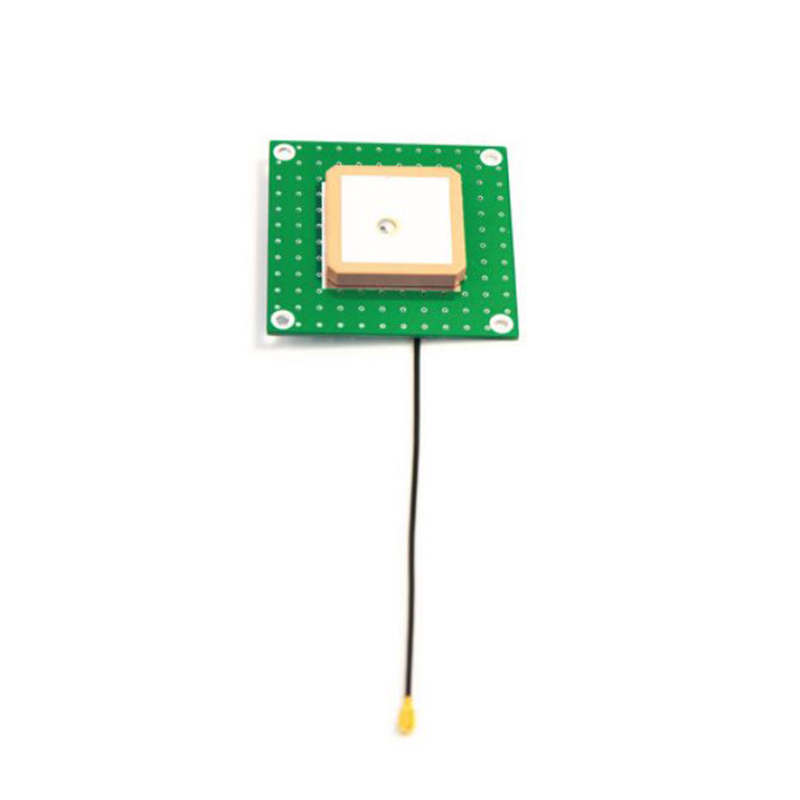

Maxtena MPA-D254-1621 Antenna and connector on white background

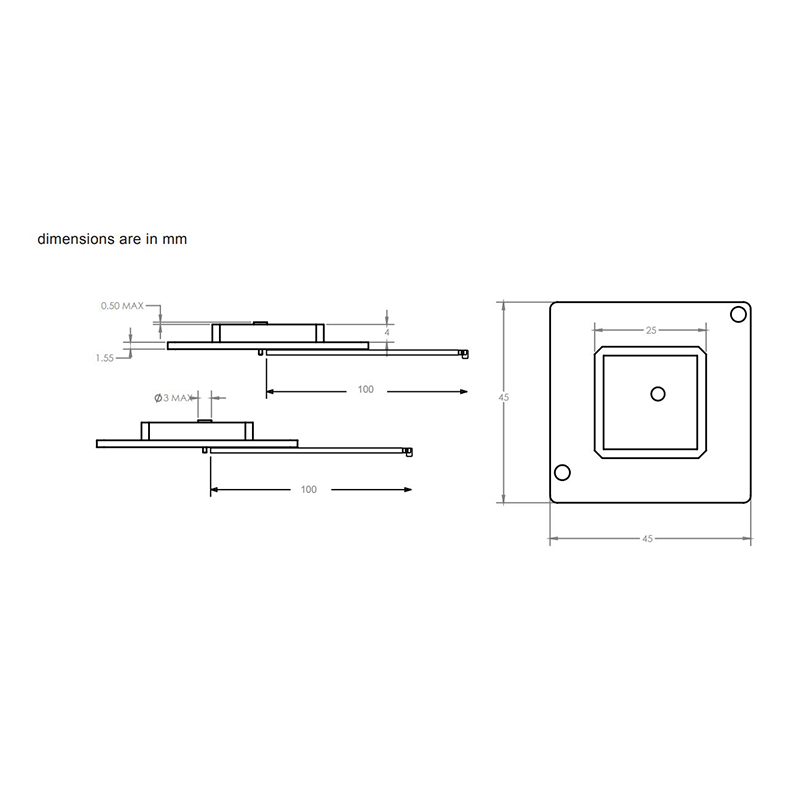

Diagram of Maxtena D254-1621 Antenna
Maxtena MPA-D254-1621 Antenna on white background
Maxtena MPA-D254-1621 Antenna and connector on white background
Diagram of Maxtena D254-1621 Antenna

MPA-D254-1621 Passive Microstrip Antenna


Manufacturer : Maxtena, Inc.

Model : MPA-D254-1621

  • Compact Size and Lightweight Features
  • Custom Tuning Capabilities
  • U.FL Connector or Other

High Performance,
Low Profile

The MPA-D254-1621 Passive Microstrip Antenna for Iridium® is a high-performance, very low profile antenna product designed for Iridium-based embedded applications. It is ideal for handhelds, PDAs and tracking devices. The very compact size and lightweight features make this Iridium embedded antenna one of a kind in the market and perfect for various commercial and industrial applications.

One of a Kind in the Market

This antenna product is designed for Iridium-based embedded applications, and is used in GPS handheld units, mobile devices, and tracking devices. It features higher upper hemisphere efficiency and a lower axial ratio as compared to regular patch antennas.

  • High Efficiency
  • With a total efficiency of 80%, this antenna can operate in the most extreme and demanding applications
  • Custom Cables and Connectors
  • Antenna comes standard with a 100 mm cable and U.FL connector, custom alternatives can be requested
  • Size and Features
  • The very compact size and lightweight features make this Iridium embedded antenna one of a kind in the market and perfect for various commercial and industrial applications

Product Specifications and Certifications

Technical Specifications

Mechanical
Field Label Field Value
Dimensions ( L x W x H ) 45 x 45 x 4 mm
Environmental
Field Label Field Value
Operating Temperature Range -40 to +85 ℃
Antenna
Field Label Field Value
Antenna Design Passive Microstrip Antenna
Polarization RHCP
Beam Width 100° (Both Axes)
RF Interface
Field Label Field Value
Frequency Range 1616 - 1626 MHz
I / O Impedence 50 Ohm
Network
Field Label Field Value
Location Based Services Yes

MPA-D254-1621 Passive Microstrip Antenna

This antenna product is designed for Iridium-based embedded applications, and is used in GPS handheld units, mobile devices, and tracking devices. It features higher upper hemisphere efficiency and a lower axial ratio as compared to regular patch antennas.
