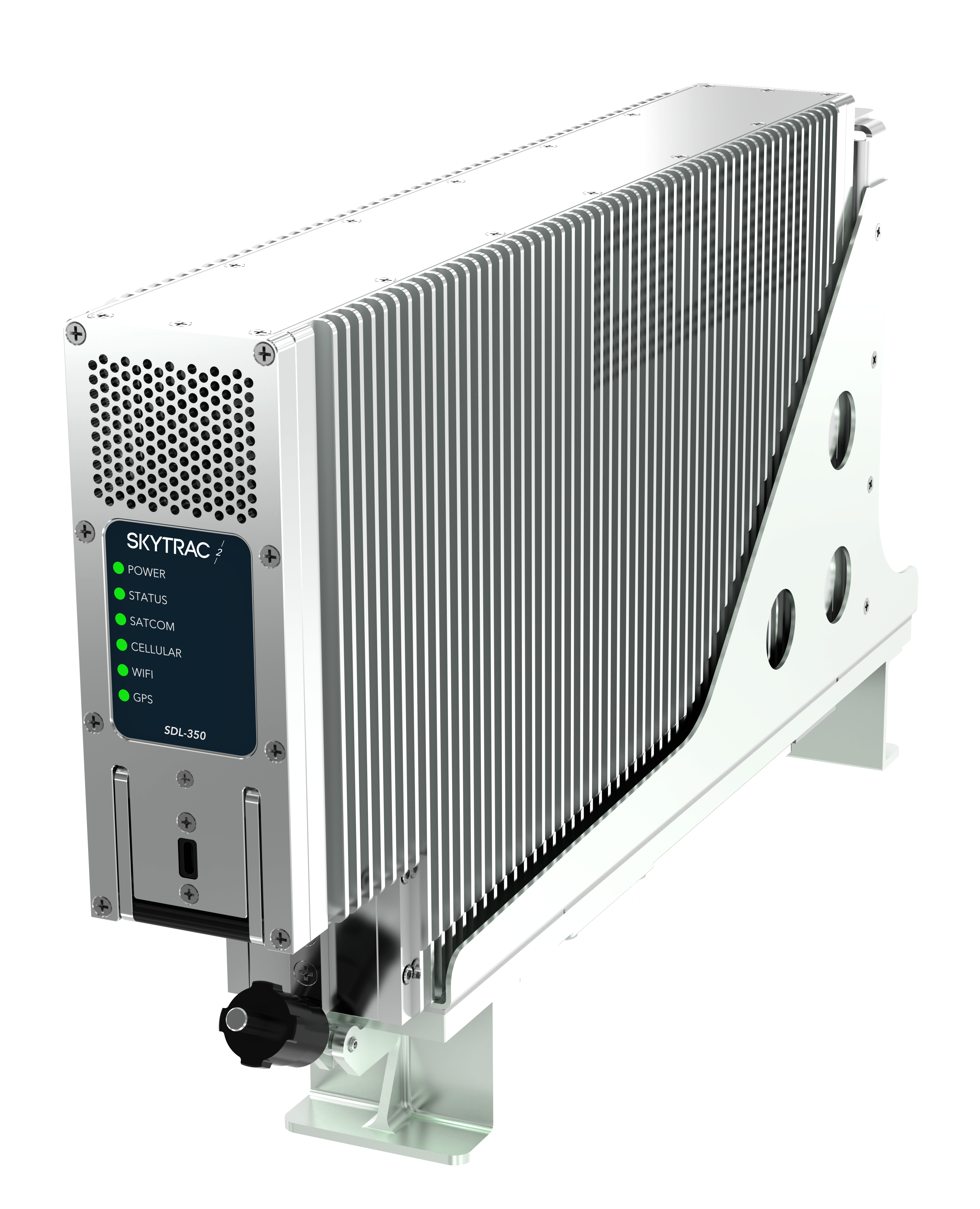

SKYTRAC SDL-350™ Broadband Aircraft Satcom & Onboard Server

Manufacturer : SKYTRAC Systems Ltd.

Model : SDL-350

  • Broadband L-Band Iridium Certus® Satellite Data Unit

  • Onboard Server & Data Acquisition

  • 99.9% Global Uptime

  • Satcom Push-To-Talk

SKYTRAC SDL-350™ Broadband Aircraft Satcom & Onboard Server


Manufacturer : SKYTRAC Systems Ltd.

Model : SDL-350

  • Broadband L-Band Iridium Certus® Satellite Data Unit

  • Onboard Server & Data Acquisition

  • 99.9% Global Uptime

  • Satcom Push-To-Talk

Optimized for Broadband Speeds

Featuring bold new capabilities, the SDL-350 supports Iridium Certus 176, 352, and 704 Mbps bandwith speeds–making it an ideal solution for business applications, flight operations, video surveillance, aviation safety services, passenger and crew calling (telephony & VoIP), and the Future Air Navigation System (FANS / CPDLC).

Key Features

Discover how the SDL-350 supports data-rich, mission-critical operations for air medical, search and rescue, military and government, airlines, business jets, and charter fleets.

  • Future-Proof Cockpit Operations
  • Aircraft Tracking & Monitoring, Real-Time Alerting, Electronic Flight Bag Automation, Intelligence Reconnaissance, Live Video Streaming, and Real-Time Graphical Weather

  • Expanded Capabilities
  • Telemedicine, EO/IR imaging, Flight Data Acquisition, VoIP Communications, Fire Attack Data, In-Flight Entertainment, and Image/Large File Transfer

  • Advanced Safety Services
  • Advanced safety service capabilities such as ACARS, Black Box Streaming, FANS 1/A (CPDLC), Push-to-Talk (PTT) Voice, Safety Voice services, and more

  • Integrated Wi-Fi
  • Internal router with intelligent data handling and traffic shaping for wireless communication and data download solutions over a Wi-Fi

  • Cellular Connectivity
  • Wireless in-flight and post-flight connectivity with integrated 4G/LTE network access

  • User-Friendly 2-MCU Housing
  • Easy fit-out in avionics bay with front-panel LEDs to support installation and troubleshooting

Product Specifications and Certifications

Technical Specifications

Product Specifications
Power Consumption 28v
Dimensions (H x W x D) 7.64" x 2.25" x 12.76" (Mounted)
Weight 6.0 lbs (2.72 kg)

Login to access additional resources

Resources

Fact Sheet
Last Updated
Size
Document Name
Fact Sheet: Iridium Certus 700
File Name
Iridium Certus 700 - Fact Sheet.pdf
Vendor
Iridium
Description

Fact Sheet detailing our Iridium Certus 700 Service class offerings

File Type
PDF
File Size
1.03 MB
File Version
2.0
Version Date
December 01, 2023
Applications
Beyond Visual Line Of Sight (BVLOS), Blue Force Tracking, Communications-On-The-Move (COTM)
Related Products
Iridium Certus™ 9810, Aspire 350, C700, Intellian C700 Winterized Maritime Terminal, Collins Aerospace IRT NX SATCOM System, MissionLINK® 700, RAPID 700 Portable Wi-Fi Hotspot, CPN EVERY MissionLINK 700, SAILOR 4300, SKYTRAC SDL-350™ Broadband Aircraft Satcom & Onboard Server, VesseLINKTM 700
Related Services
Iridium Certus® 700, Iridium Messaging Transport, Voice Calling
Verticals
Aviation, Iridium Certus, Land Mobile, Maritime, U.S. Government

SKYTRAC SDL-350™ Broadband Aircraft Satcom & Onboard Server

Discover how the SDL-350 supports data-rich, mission-critical operations for air medical, search and rescue, military and government, airlines, business jets, and charter fleets.
