ZuniC Satellite Communication System
Services: Iridium Certus® 100 | Iridium Messaging Transport
-
High-speed connectivity—ensuring rapid data transmission
-
Real-time data transmission with high bandwidth capabilities
-
Seamless integration with Amazon Web Services (AWS) for robust data management, employing SQS protocol for precise & reliable message routing
-
Compact all-in-one system: features internal antennas & control systems
-
Easy installation: simple setup with only an Ethernet cable required

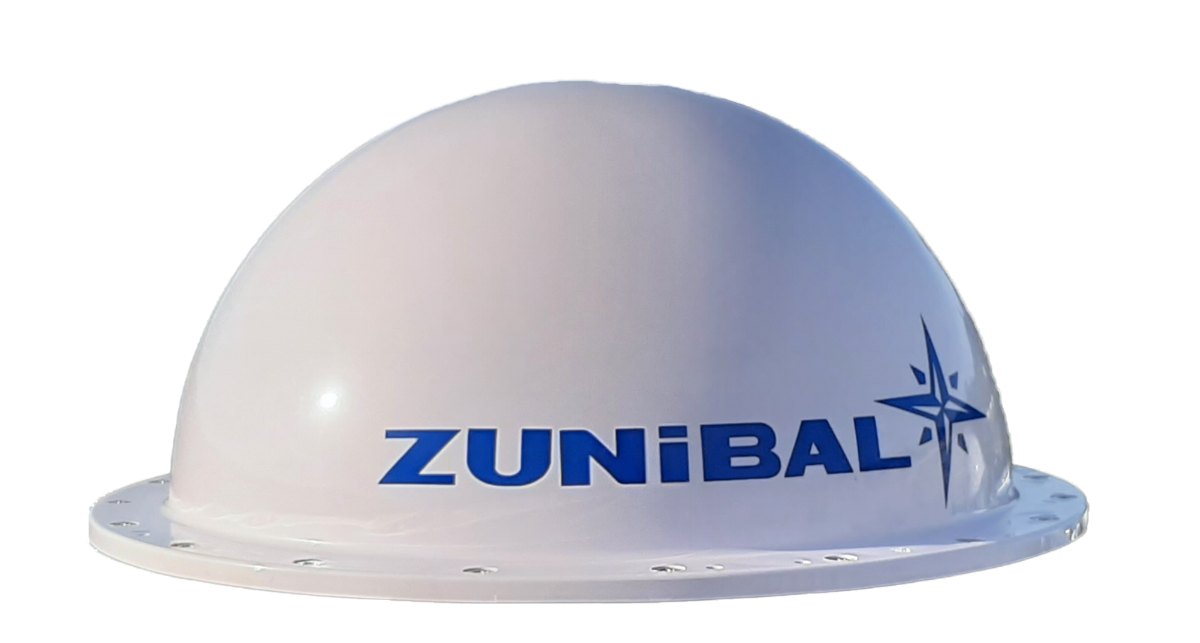

ZuniC Satellite Communication System
Manufacturer : Zunibal S.L.
Model : ZuniC CZ4
Services: Iridium Certus® 100 | Iridium Messaging Transport
-
High-speed connectivity—ensuring rapid data transmission
-
Real-time data transmission with high bandwidth capabilities
-
Seamless integration with Amazon Web Services (AWS) for robust data management, employing SQS protocol for precise & reliable message routing
-
Compact all-in-one system: features internal antennas & control systems
-
Easy installation: simple setup with only an Ethernet cable required

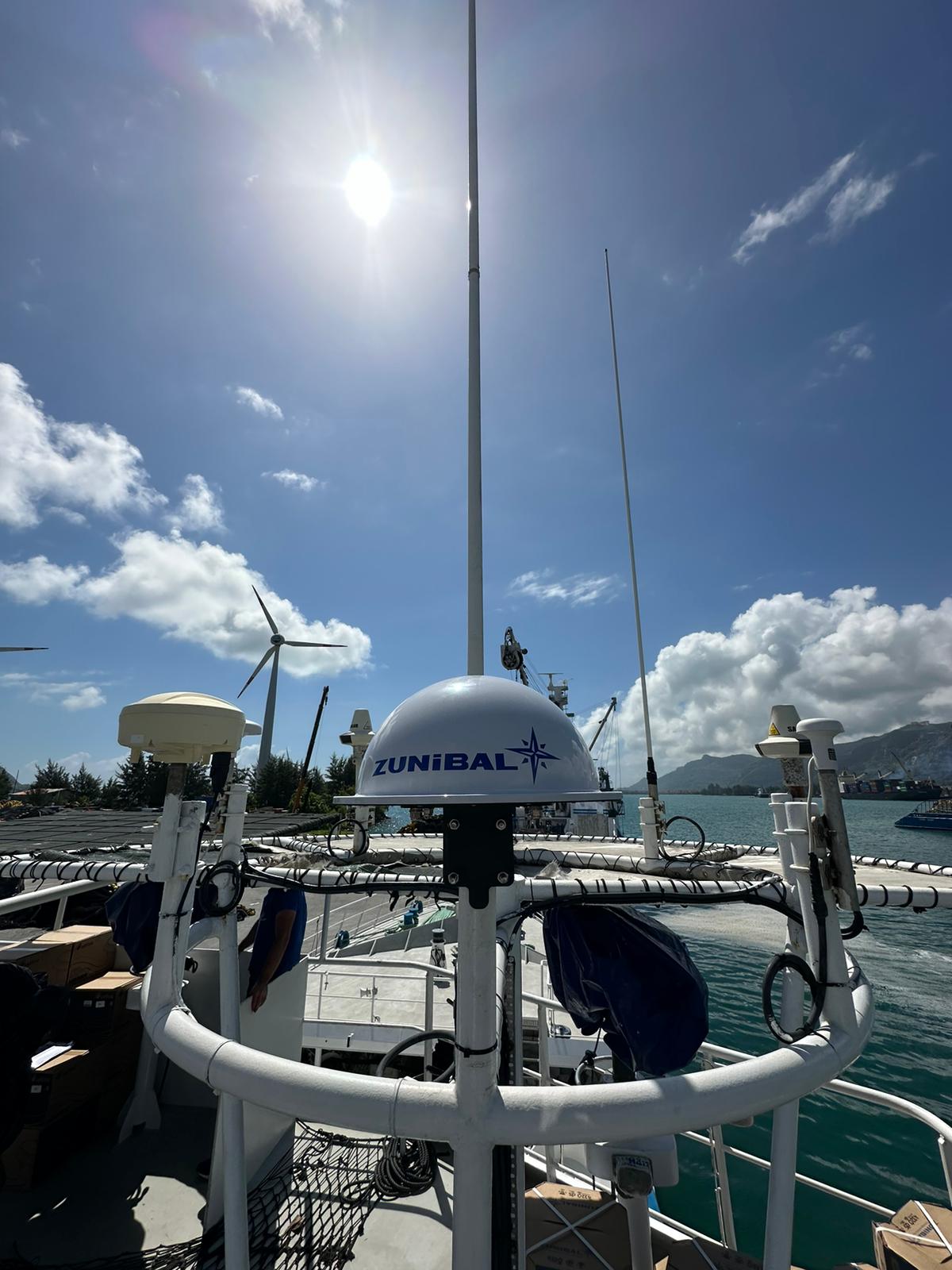

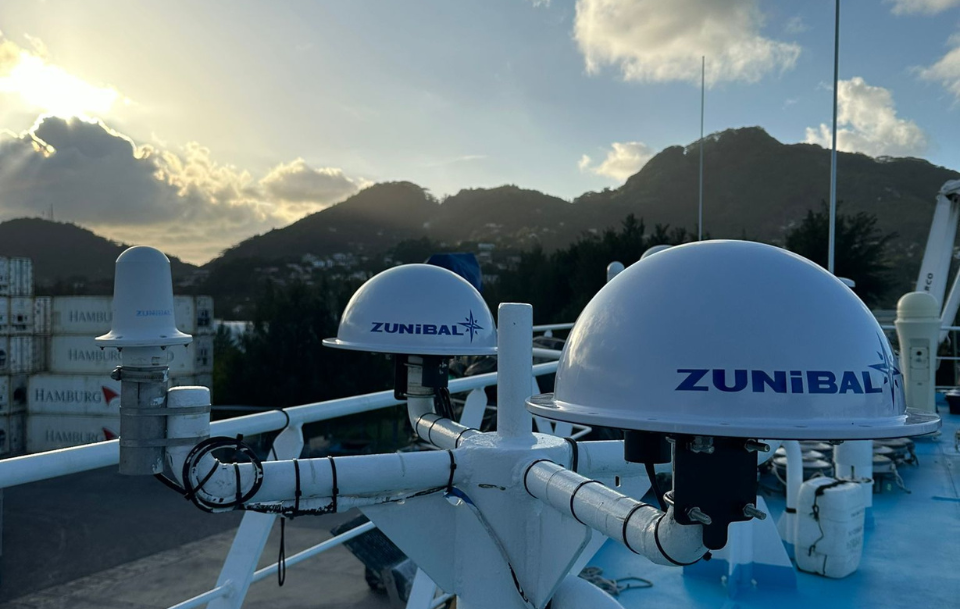

Advanced SATCOM For Tuna Fishing
ZuniC is an innovative, high-performance satellite communication system specifically designed for the dynamic needs of the tuna fishing industry. Powered by Iridium Certus® 100, ZuniC offers exceptional connectivity, robustness, and ease of use in maritime environments.
Features
- Speeds
-
22Kbps uplink & 88Kbps downlink
- Iridium Messaging Transport® (IMT®)
-
IMT enabled–taking advantage of Iridium’s first fully-cloud-integrated IoT solution for Iridium Certus
- All-In-One System
-
Includes internal antennas & control
- Navigation
-
Offers GNSS positioning
- Simple Setup
-
Easy installation; only Ethernet cable needed
Product Specifications and Certifications
| Mechanical | |
|---|---|
| Iridium Embedded Technology | Iridium Certus 9770 Module |
| General | |
| Dimensions | H: 165mm; D: 367mm |
| Weight | 5kg |
| Connector | 1xRJ45 female IP67 |
| Material | Plastic / stainless steel |
| External Power | 48Vdc POE |
| Power Consumption | 10W Max; 5W Nominal |
| Iridium Certus 100 Specs | 88 kbps receive/22 Kbps transmit; 1616 Mhz- 1626.5 Mhz; IMT Enabled |
| GNSS | GPS/GLONASS/Galileo/BeiDou; 72 acquisition channel; <2.5m CEP horizontal accuracy |
| Interfacing | Ethernet (100 BaseT); TCP Ports for accessing |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | <75% RH |
- Iridium® Certification
