Blue Box V77 VMS

Manufacturer : Zunibal S.L.

Model : Blue Box V77

  • Vessel Movement Monitoring Anywhere in the World
  • No Maintenance
  • Easy Installation
  • Solid-State Antenna with No Moving Parts
  • Data Encryption and Message Authentication
ZUNIBAL VMS, Vessel Monitoring System
ZUNIBAL VMS, Vessel Monitoring System

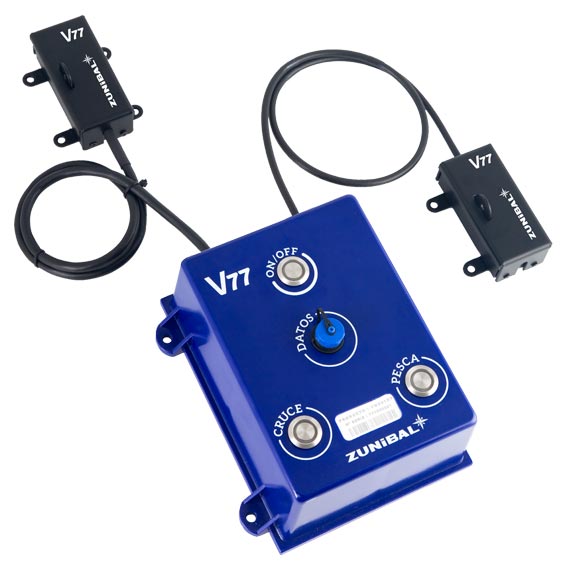

Blue Box V77 VMS


Manufacturer : Zunibal S.L.

Model : Blue Box V77

  • Vessel Movement Monitoring Anywhere in the World
  • No Maintenance
  • Easy Installation
  • Solid-State Antenna with No Moving Parts
  • Data Encryption and Message Authentication

Secure Vessel Tracking, Anywhere

ZUNIBAL’s Blue Box V77 VMS transponder provides accurate, secure and confidential information about a vessel’s location as per the needs of authorities and vessel owners. It is certified to comply with Spanish VMS regulations.

Functional and Durable Design

Manufactured to be both functional and durable, the Blue Box V77 VMS system provides users with the added benefit of advanced features that can be used confidently in a variety of environments.

  • Intuitive Usability
  • Designed with just three (3) total buttons that cover everything needing to be communicated
  • On/Off Button
  • Power on and off as needed to extend battery life between charges
  • Cruise Button
  • Relay information that the ship is in transit to the personnel needing to know
  • Durability and Easy Installation
  • Can be immersed in any type of environment with its durable shell in addition to being installed easily on multiple surfaces wherever needed
  • Fishing Button
  • Relay information to the authorities that the vessel is fishing

Product Specifications and Certifications

Technical Specifications

Mechanical
Field Label Field Value
Dimensions ( L x W x H ) 200 x 180 x 84 mm
Weight 3300 g
Environmental
Field Label Field Value
Operating Temperature Range -30 to +70 ℃
Antenna
Field Label Field Value
Antenna Design Solid State, No Moving Parts
RF Interface
Field Label Field Value
Frequency Range 1616 to 1626.5 MHz
Multiplexing Method Multiplex Communication, TDMA/FDMA
Battery
Field Label Field Value
Battery Type Li-Ion battery
Power
Field Label Field Value
Input Voltage Range 9 to 30 Vcc
Network
Field Label Field Value
Location Based Services Integrated GPS Receiver
User Experience
Field Label Field Value
Screen Three (3) Intuitive Buttons for Use: On / Off Button, A Cruise Button to Indicate that the Ship is in Transit, A Fishing Button to Inform Authorities that the Vessel is Fishing

Certifications

  • National Institute of Aerospace Technology (I.N.T.A)
  • General Secretary of the Sea (S.G.M)
  • General Directory of the Merchant Marine (D.G.M.M, Approval Number 66.0020)
  • Spanish VMS Regulations
  • Developed to Comply with the Order ARM / 3238/2008, Which Regulates Satellite-based Fishing Vessel Monitoring in Spain.

Blue Box V77 VMS

Manufactured to be both functional and durable, the Blue Box V77 VMS system provides users with the added benefit of advanced features that can be used confidently in a variety of environments.
