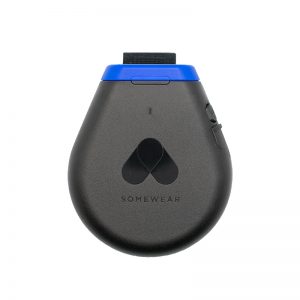

Somewear Node: Mesh & Satellite Connectivity

Manufacturer : Somewear Labs, Inc.

Model : SWL-2

  • Mesh & Satellite connectivity in a lightweight, body-worn solution

  • Messaging, Tracking, and Sensor Integrations

  • SmartRouting: graceful degradation across Cell, Wi-Fi, mesh, & SATCOM

  • SmartBackhaul™: dynamic backhaul to route data to C2

  • Pairs with Somewear Mobile App, Grid Mobile, & ATAK via ATAK Off-Grid

Somewear Node: Mesh & Satellite Connectivity


Manufacturer : Somewear Labs, Inc.

Model : SWL-2

  • Mesh & Satellite connectivity in a lightweight, body-worn solution

  • Messaging, Tracking, and Sensor Integrations

  • SmartRouting: graceful degradation across Cell, Wi-Fi, mesh, & SATCOM

  • SmartBackhaul™: dynamic backhaul to route data to C2

  • Pairs with Somewear Mobile App, Grid Mobile, & ATAK via ATAK Off-Grid

Node | Mesh + Satellite Connectivity

Node is a first-of-its-kind multi-network device combining the efficiency of mesh radios and the resilience of satellite technology. Node provides a level of reliability, security, and survivable situational awareness previously unavailable for teams on the move.

Features

  • Multi-Network Resilience
  • Node combines the efficiency of mesh radios and the resilience of satellite technology into a single, lightweight solution.

  • SmartRouting
  • Our proprietary data routing software provides graceful network degradation ensuring connectivity across cellular, wifi, mesh, and satcom networks.

  • SmartBackhaul
  • Each Node has the ability to serve as a backhaul eliminating the need to establish and stay in range of fixed infrastructure.

  • ATAK Integrated
  • Power ATAK with a survivable communications network and share locations, messages, shapes, and more.

  • Data Security
  • AES 256-bit encryption – all data in transit and at rest is encrypted throughout Somewear’s system.

  • Third Party Integrations
  • Node can fully integrate with custom applications using Somewear’s developer toolkit to facilitate data sharing while offline.

Product Specifications and Certifications

Technical Specifications

General
Dimensions 23 x 132 x 62.4mm
Weight 186g
Waterproof IP68 (1.5m up to 30min)
Operating Temperature -20C to 65C
Battery Type Internal, 1900mAH Li-ion

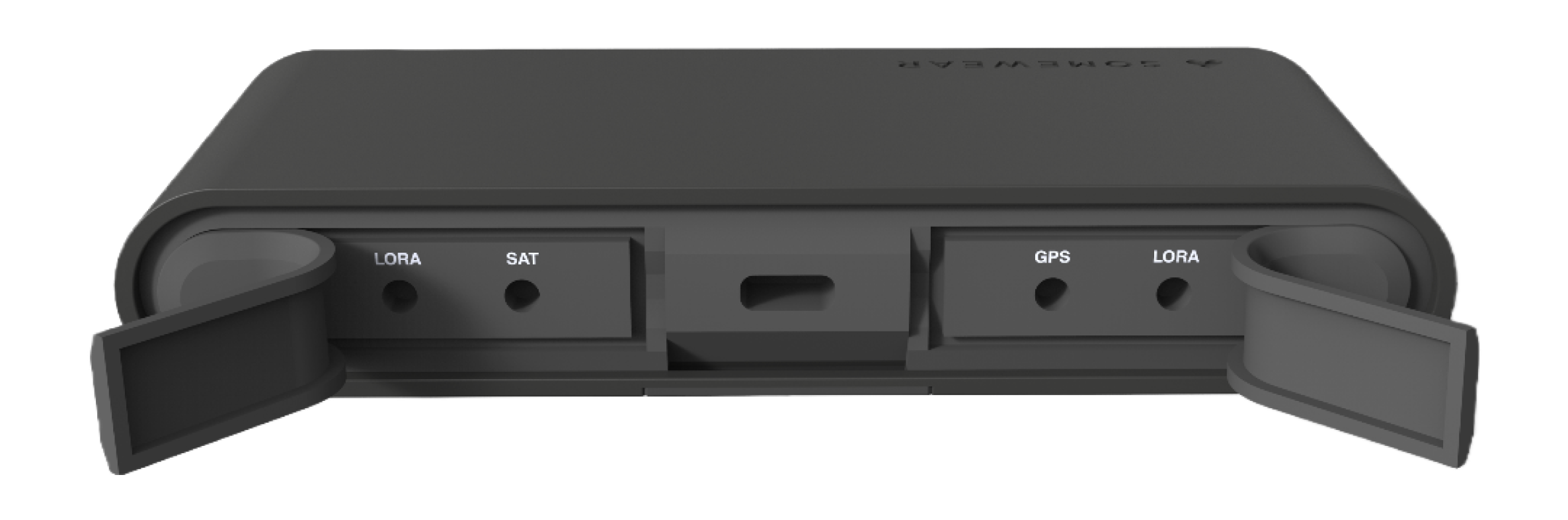

External Antenna Port 2x LoRa, 1x Iridium, 1x GPS (all MCX)
USB Type C (USB 2.0)
Bluetooth® BLE 5.2
NFC Passive
Manufacturing Manufactured in USA

Certifications

  • Iridium® Certification

Awards
